SPECIFICATION

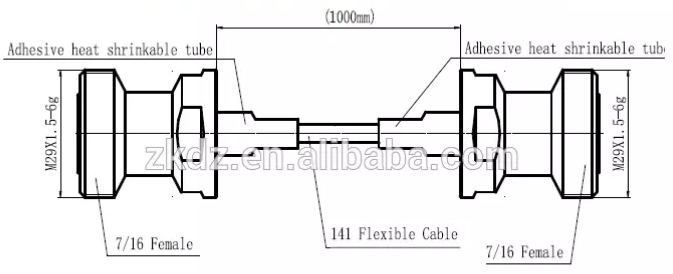

RG402 RG141 jumper cable assembled with 7/16 female connector both side
(7/16-K141-5/7-16-K141-5-1m)
| Interface According to：IEC 60169-4 | |
Electrical Performance Characteristic Impedance：50 ohm Frequency Range：DC-3GHz VSWR： ≤1.15(DC-3GHz) PIM3： ≤-160dBc Dielectric Withstanding Voltage：≥4000V RMS,50Hz,at sea level Dielectric Resistance： ≥10000MΩ Contact Resistance：Center Contact ≤1.0mΩ Outer Contact ≤1.0mΩ Durability：Mating cycles ≥500 | Material and plating Body：Brass, Ni plating Insulator：PTFE, NATURAL Contact PIN：Brass,Ag plating
Environmental Temperature Range：-40℃～+85℃ Waterproof：IP68 RoHS ：Full RoHS-Compliance |
All products appearance, technical performance and electroplating can be customized according to customer requirements.
