SPECIFICATION

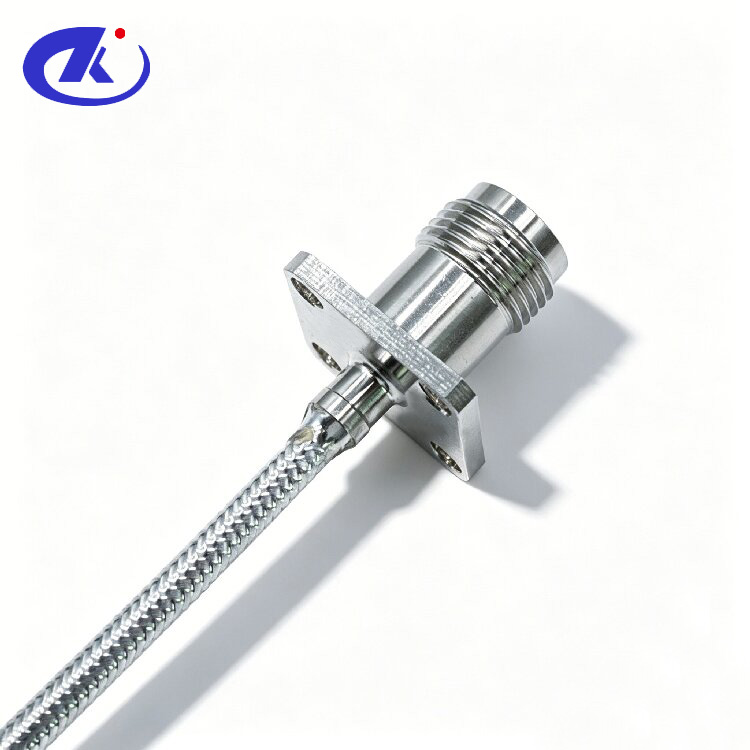

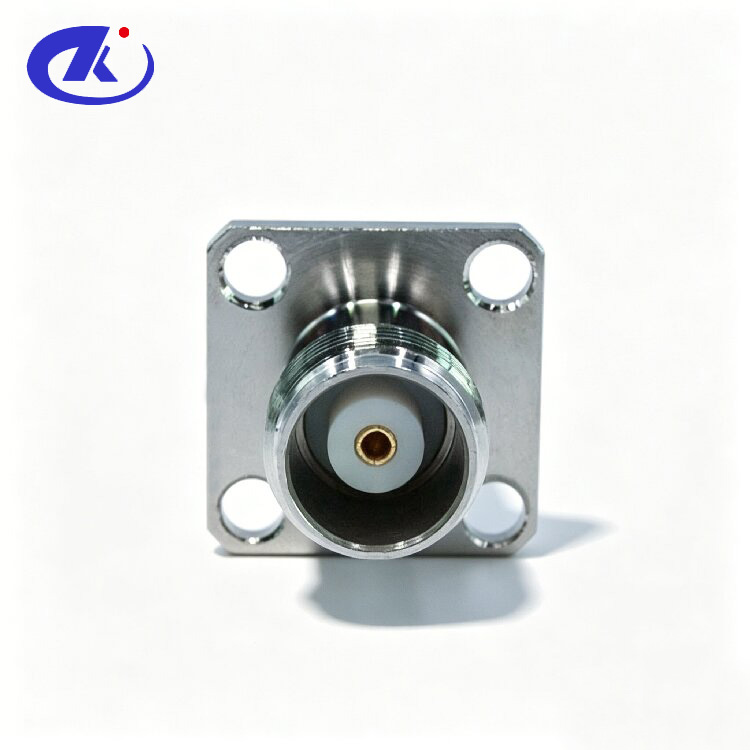

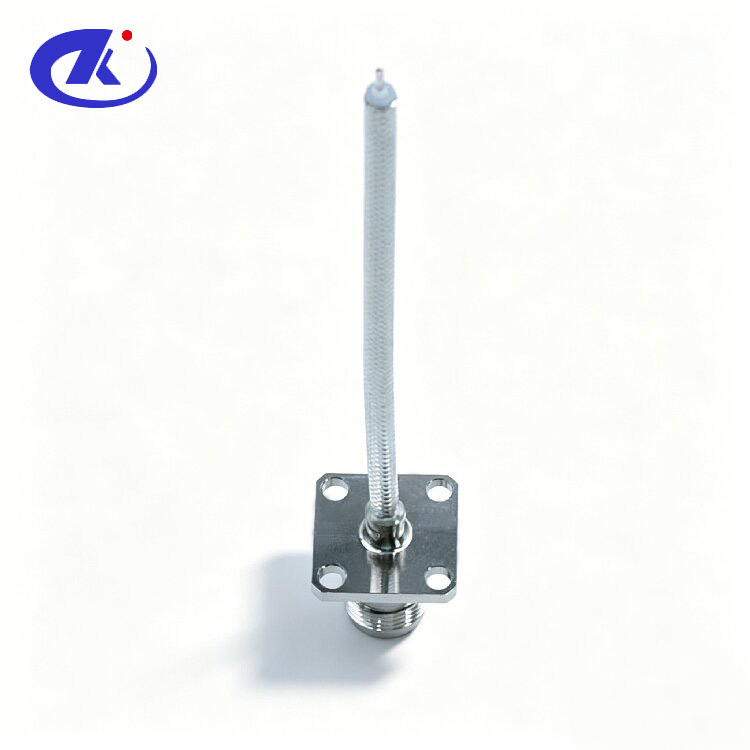

RF Cable Assembly for RG402/141 Cable with TNC Female Flange Type Connector
(TNC-KF141-1-100mm)
| Interface According to：IEC 60169-17 | |
Electrical Performance Characteristic Impedance：50 ohm Frequency Range：DC-11GHz VSWR:≤1.20 Dielectric Withstanding Voltage：≥100V RMS, 50Hz,at sea level Dielectric Resistance：≥5000MΩ Contact Resistance：Center Contact ≤0.4mΩ Outer Contact ≤0.2mΩ Durability：Mating cycles ≥500cycles | Material and plating Body：Brass, Ni plating Insulator：PTFE, NATURAL Contact PIN：Brass,Au plating
Environmental Temperature Range：-40℃～+85℃ Waterproof(1m water depth, 24hours)：IP67 RoHS：Full RoHS-Compliance |
All products appearance, technical performance and electroplating can be customized according to customer requirements.
