SPECIFICATION

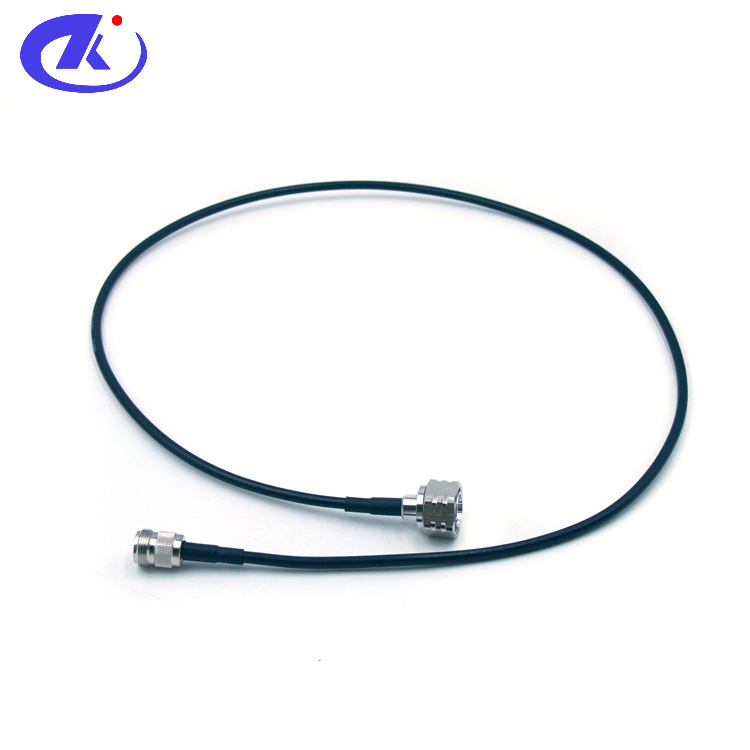

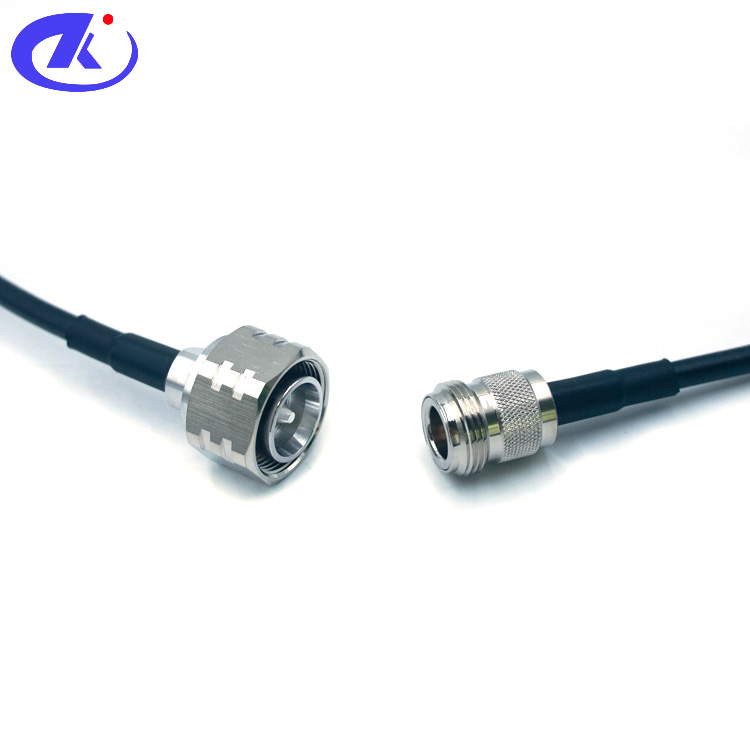

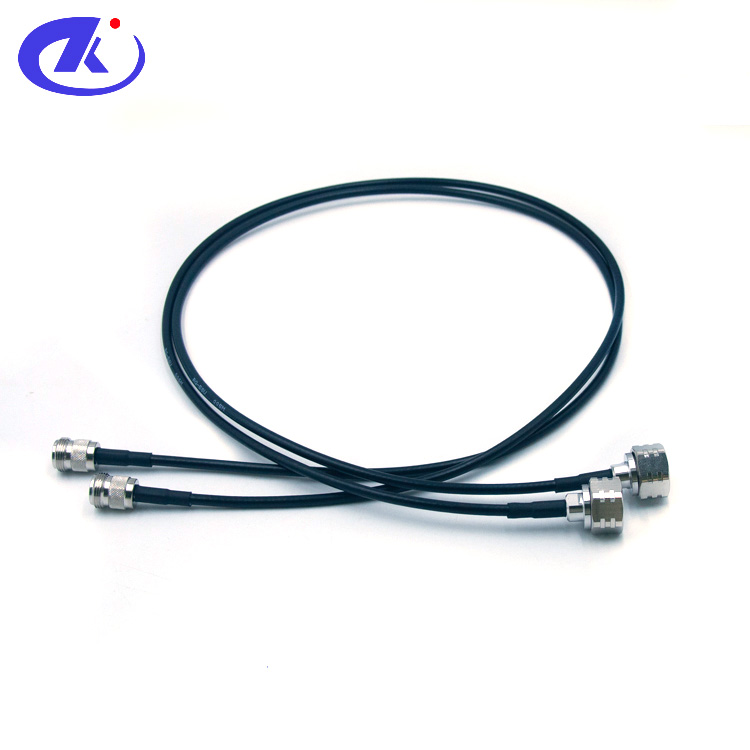

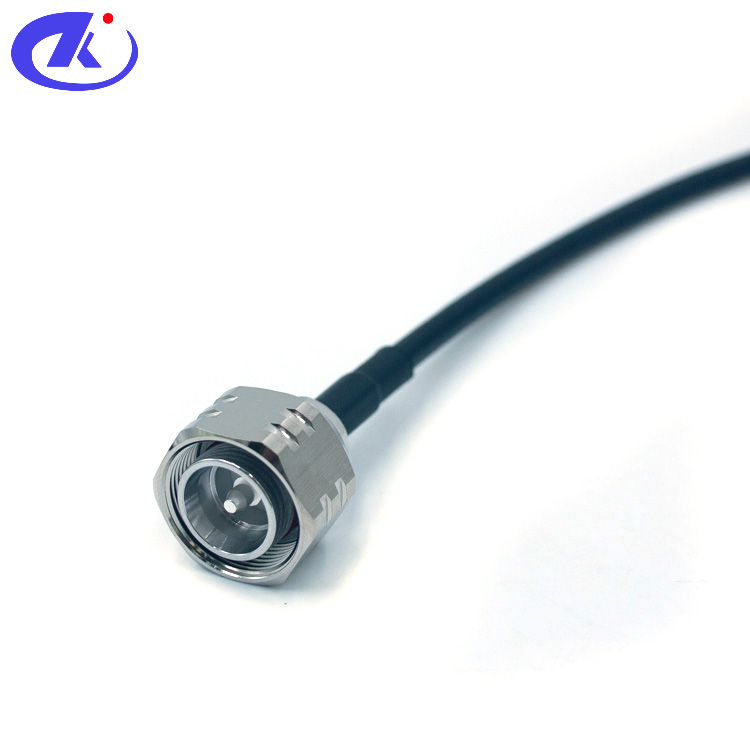

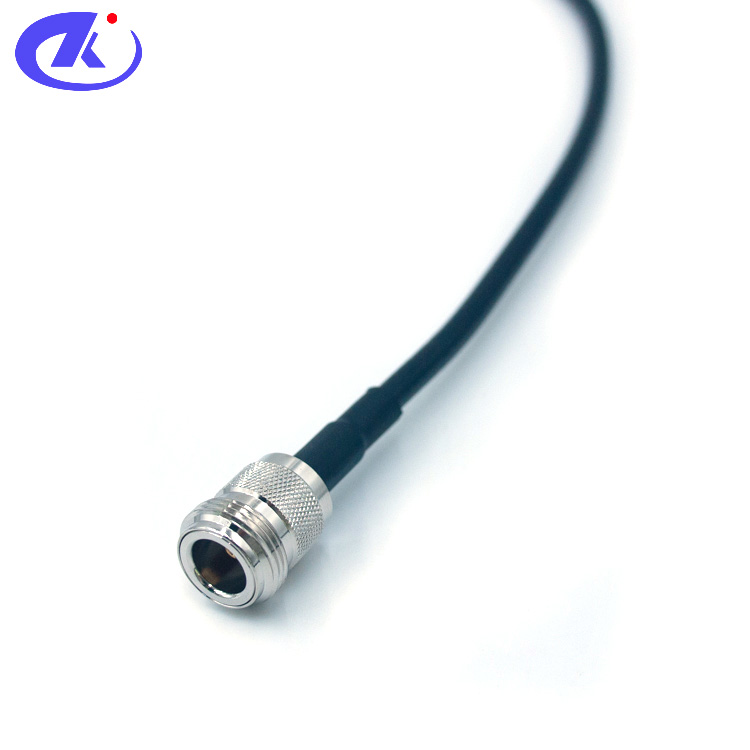

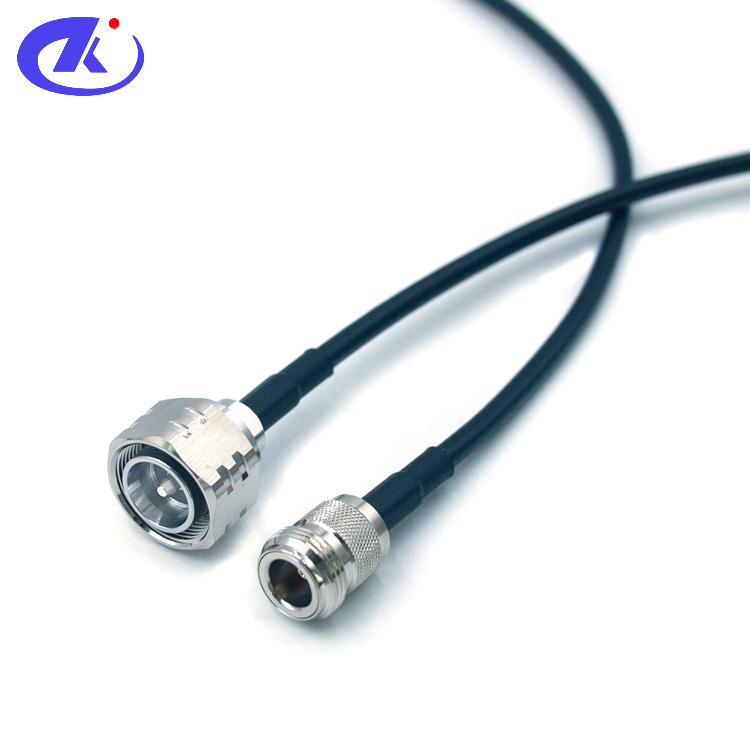

RG58 Jumper, 4.3/10 Male straight to N Female Connector
(4.3-10-C-J58-N-C-K58-2-1m)
| Interface According to：IEC 60169-16/IEC 61169-54 | |
Electrical Performance Characteristic Impedance：50 ohm Frequency Range：DC-2.5GHz VSWR:≤1.25(0-2.5G) Dielectric Withstanding Voltage：≥750V RMS,50Hz,at sea level Dielectric Resistance：≥5000MΩ Contact Resistance：Center Contact ≤0.4mΩ Outer Contact ≤0.2mΩ Durability：Mating cycles ≥500 | Material and plating Body：Brass, Tri-alloy/Ni plating Insulator：PTFE, NATURAL Contact PIN：Brass,Ag/Au plating
Environmental Temperature Range：-40℃～+85℃ Waterproof(1m water depth, 24hours)：IP68 RoHS：Full RoHS-Compliance |
All products appearance, technical performance and electroplating can be customized according to customer requirements.
