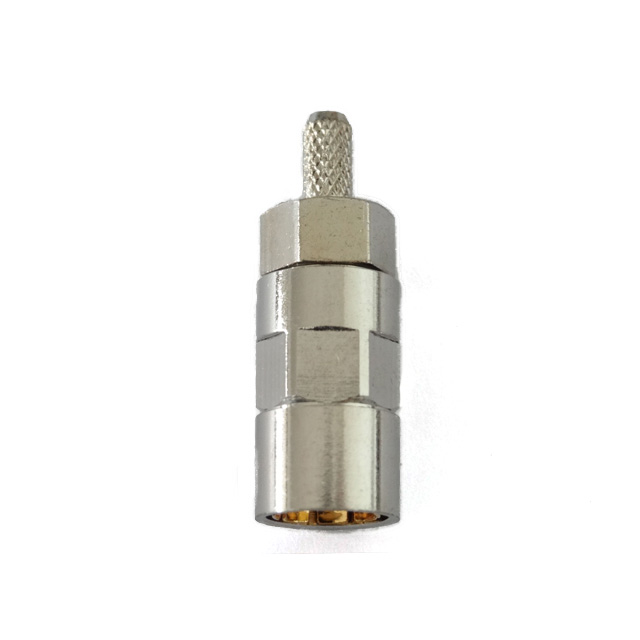

SMZ

SMZ seies is a kind of smap-on self-locked coupling connectors developed from SMB.With the advantage of vibration-proof,high reliability, small and easy mating, superior electrical peformance, the products are widely used in radio equipments and instruments.



Standards:MIL-C-39012

Electrical Characteristics


Contact resistance inner conductor:≤5.0 mΩ

Contact resistance outer conductor:≤2.5 mΩ

Insulation resistance:≥5000MΩ

Impedance:50Ω

Voltage proof:750V/50Hz

VSWR:≤1.3@DC-1GHz

Return loss: Straight style:≥55dB@1GHz

Return loss: Angle style:200V@50GHz

Frequency range up to:DC-4GHz(Max)

Mechanical Characteristics


Insertion Force:≤10 N

Disengagement:8-63N

Durability (mating cycles):≥500

Material: outer conductor:Brass

Material: other metal parts:Brass

Material: insulators:PTFE

Plating: Inner conductor:Au

Plating: Outer conductor:Au

Plating: Other metal parts:Au
