L9 (1.6/5.6)

1.6-5.6 (L9) series of connectors are available with three different plug designs: Snap-on coupling allowing rapid but secure connections, screw coupling for vibration proof installations, slide-on coupling which is suitable for rack and panel systems.

Versions of this series connector are available for mounting to printed circuit boards using thru-hole soldered techniques. Clamp and crimp techniques are used to terminate this series to cables. 1.6/5.6 connectors find applications in many types of communication equipment.




Electrical Characteristics

Contact resistance inner conductor:≤4.0 mΩ

Contact resistance outer conductor:≤2.0 mΩ

Insulation resistance: ≥ 16GΩ


Voltage proof:1.0KV/50Hz

Return loss: Straight style:≥36 dB/1GHz

Return loss: Angle style:≥30 dB/1GHz

Working Voltage:500V/50Hz

Frequency range up to:3 GHz

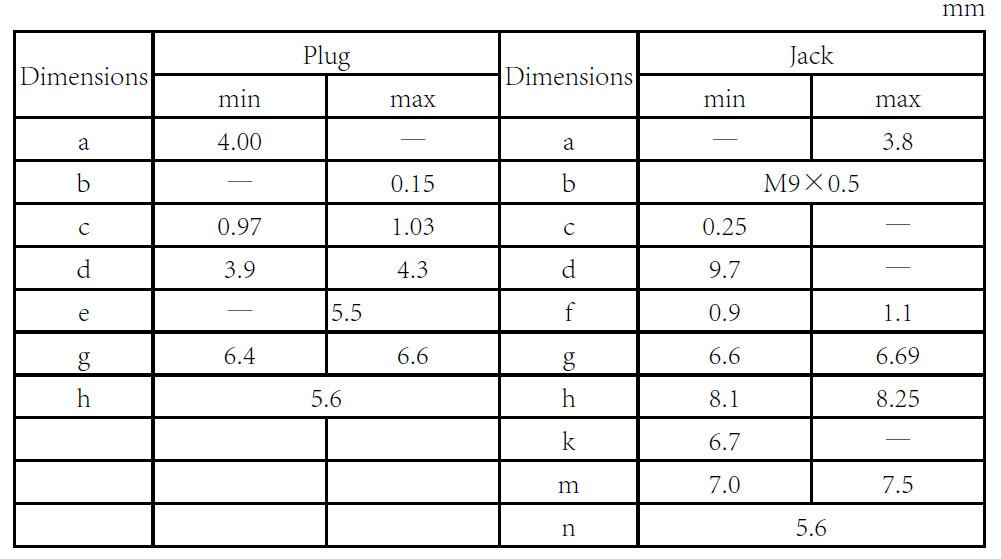

Mechanical Characteristics

Insertion:Screw:≤12 Nm

Withdrawal force:Screw:2.2-10N

Durability (mating cycles):≥500

Material: outer conductor:Brass

Material: other metal parts:Brass

Material: insulators:PTFE

Plating: Inner conductor:Au

Plating: Outer conductor:Ni/Tri-alloy

Plating: Other metal parts:Ni/Tri-alloy
