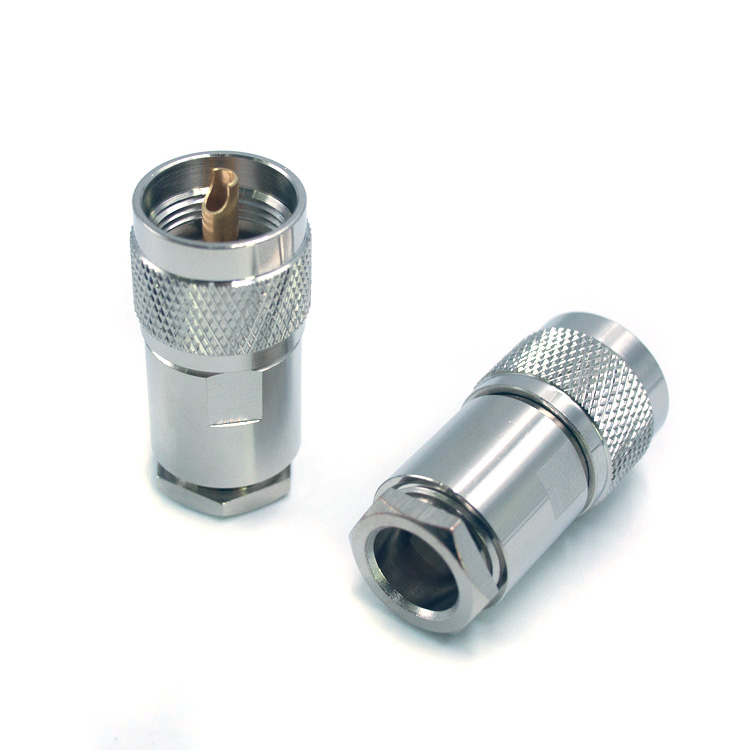

UHF series is a low cost, low frequency connector with a screw coupling. The maximum usable frequency is limited to 200MHz, as the impedance of the connector is not controlled. Applications for the UHF connectors are for low-frequency communication equipment. They are mateable with 4 mm banana plugs. Interface dimensions conformable to IEC 60169-12.
| Standards：IEC60169-12 | |
Electrical Characteristics Contact resistance inner conductor：≤5.0mΩ Contact resistance outer conductor：≤5.0 mΩ Insulation resistance ：≥ 5.0 GΩ Impedance：50Ω Voltage proof ：2KV/50Hz Working voltage：750V/50Hz Frequency range up to：200MHz | Mechanical Characteristics Center contact captivation：≥18N Durability (mating cycles)：≥500 Material: outer conductor：Brass Material: other metal parts：Brass Material: insulators：PTFE/PE Plating: Inner conductor：Au Plating: Outer conductor：Ni/Tri-alloy Plating: Other metal parts：Ni/Tri-alloy |
