SPECIFICATION

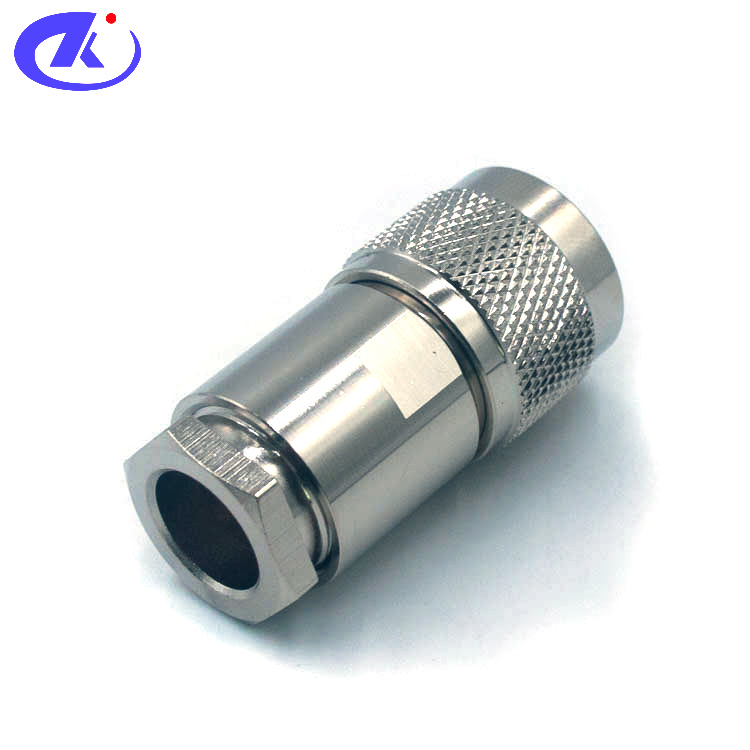

UHF male straight for RG213 Cable Clamp
(UHF-JRG213(LJ))
| Interface According to：IEC 60169-12 | |
Electrical Performance Characteristic Impedance：50 ohm Dielectric Withstanding Voltage：≥2000V RMS,50Hz,at sea level Dielectric Resistance：≥5000MΩ Contact Resistance：Center Contact ≤5mΩ Outer Contact ≤5mΩ Durability：Mating cycles ≥500 | Material and plating Body：Brass, Tri-alloy plating Insulator：PTFE, NATURAL Contact PIN：Brass,Au plating
Environmental Temperature Range：-40℃～+80℃ Waterproof：IP67 RoHS：Full RoHS-Compliance |
All products appearance, technical performance and electroplating can be customized according to customer requirements.
