SPECIFICATION

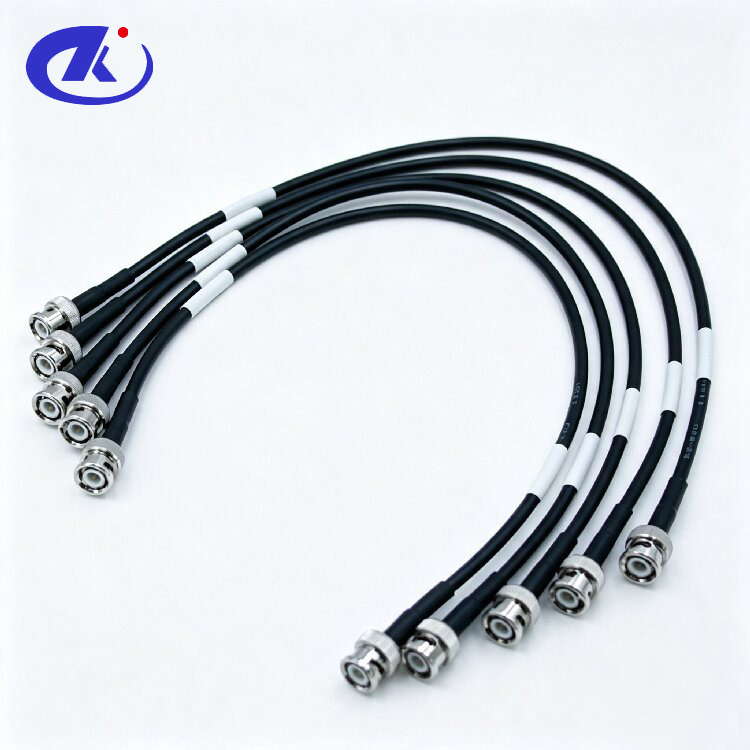

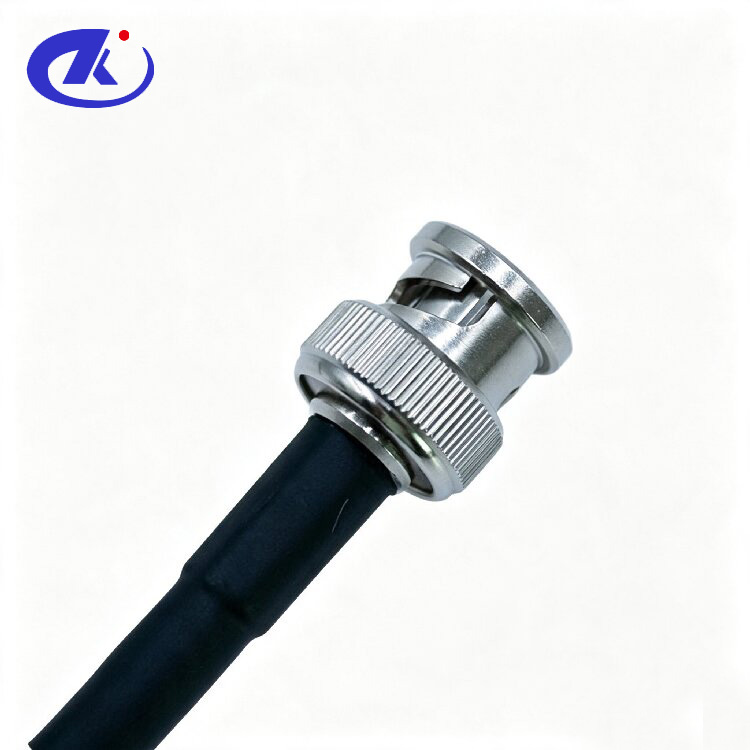

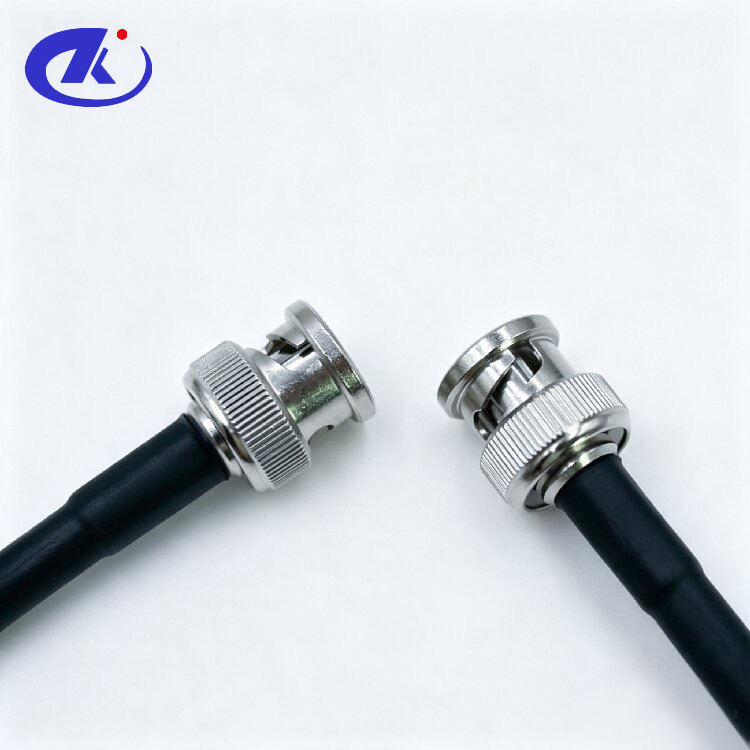

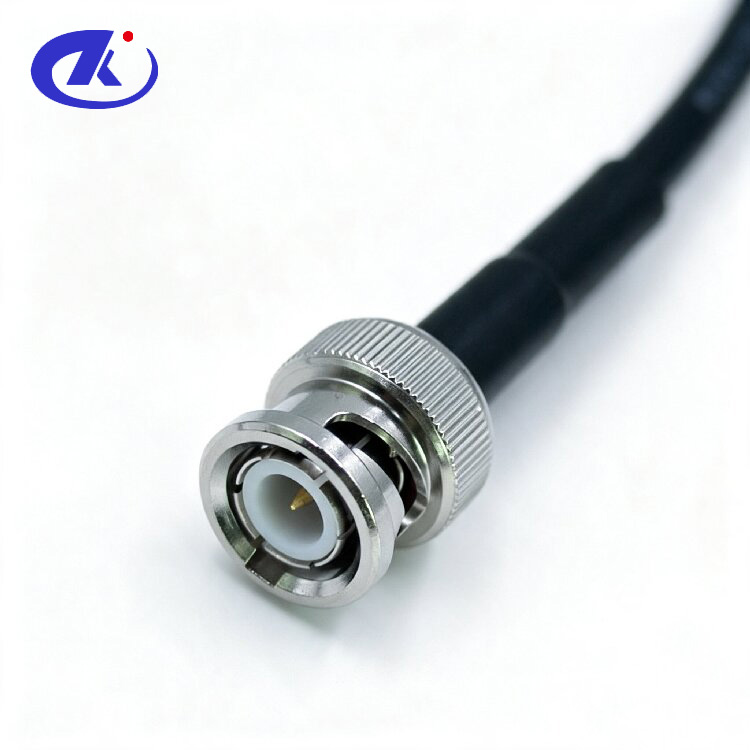

RG58 Jumper Cable with BNC Male straight to BNC Male straight
(BNC-C-J5-BNC-C-J5-500mm)
| Interface According to：IEC 60169-8 | |
Electrical Performance Characteristic Impedance：50 ohm Frequency Range：DC-3GHz VSWR：≤1.30 Dielectric Withstanding Voltage：≥2500V RMS,50Hz,at sea level Dielectric Resistance：≥5000MΩ Contact Resistance：Center Contact ≤3.0mΩ Outer Contact ≤2.0mΩ Durability：Mating cycles ≥500 | Material and plating Body：Brass, Ni plating Insulator：PTFE, NATURAL Contact PIN：Brass,Au plating
Environmental Temperature Range：-40℃～+85℃ RoHS：Full RoHS-Compliance |
All products appearance, technical performance and electroplating can be customized according to customer requirements.
