RG series

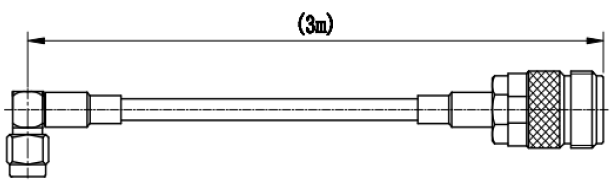

RG58, N Female straight to SMA Male rigth angle,3m(SMA-C-JW5/N-C-K5-3M)

SPECIFICATION

RG58, N Female straight to SMA Male rigth angle,3m

(SMA-C-JW5/N-C-K5-3M)

Interface

According to：IEC 60169-16/60169-15

Electrical Performance

Characteristic Impedance：50 ohm

Frequency Range：DC-3GHz

VSWR：≤1.12(DC-2.7GHz),≤1.12(2.7-3.8GHz),

Dielectric Withstanding Voltage：≥2500V RMS,50Hz,at sea level

Dielectric Resistance：≥5000MΩ

Contact Resistance ：Center Contact ≤1.0mΩ Outer Contact ≤1.0mΩ

Durability：Mating cycles ≥500

Material and plating

Body：Brass, Tri-alloy/Ni plating

Insulator：PTFE, NATURAL

Contact PIN：Brass,Ag/Au plating

Environmental

Temperature Range：-40℃～+85℃

Waterproof ：IP67

RoHS：Full RoHS-Compliance

All products appearance, technical performance and electroplating can be customized according to customer requirements.
