SPECIFICATION

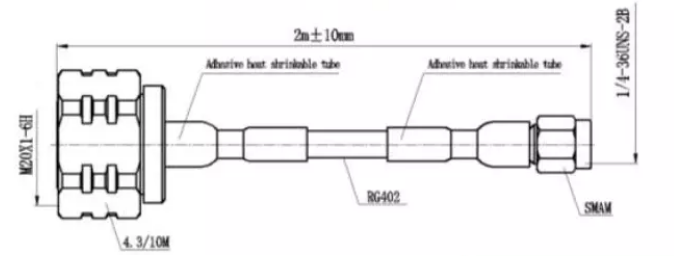

RG141, 4.3/10 Male straight to SMA Male straight
(SMA-J141-4.3-10-J141-2m)
Interface According to:IEC 61169-54/IEC 60169-15 | |
Electrical Performance Characteristic Impedance:50 ohm Frequency Range:DC-6GHz VSWR:≤1.1(DC-3GHz), Dielectric Withstanding Voltage: ≥1000V RMS,50Hz,at sea level Dielectric Resistance:≥5000MΩ Contact Resistance:Center Contact ≤1.0mΩ Outer Contact ≤1.0mΩ Durability:Mating cycles ≥500 | Material and plating Body:Brass, Tri-alloy/Au plating Insulator:PTFE, NATURAL Contact PIN:Brass,Au plating
Environmental Temperature Range:-40℃~+85℃ Waterproof:IP67 RoHS:Full RoHS-Compliance |
All products appearance, technical performance and electroplating can be customized according to customer requirements.
