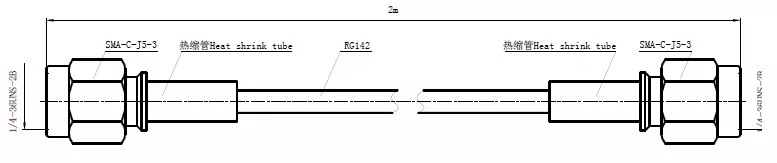

RG142 jumper SMA male straight and SMA male straight connector (SMA-C-J5-3/SMA-C-J5-3-2M)

SPECIFICATION

RG142 jumper SMA male straight and SMA male straight connector

(SMA-C-J5-3/SMA-C-J5-3-2M)

Interface

According to：IEC 60169-15

Electrical Performance

Characteristic Impedance：50 ohm

Frequency Range：DC-6GHz

VSWR： ≤1.15

Dielectric Withstanding Voltage：≥1500V RMS,50Hz,at sea level

Dielectric Resistance： ≥5000MΩ

Contact Resistance：Center Contact ≤1.0mΩ Outer Contact ≤1.0mΩ

Durability：Mating cycles ≥500

Material and plating

Body：Brass, Ag plating

Insulator：PTFE, NATURAL

Contact PIN：Brass,Ag plating

Environmental

Temperature Range：-40℃～+85℃

Waterproof：IP67

RoHS ：Full RoHS-Compliance

All products appearance, technical performance and electroplating can be customized according to customer requirements.
