SPECIFICATION

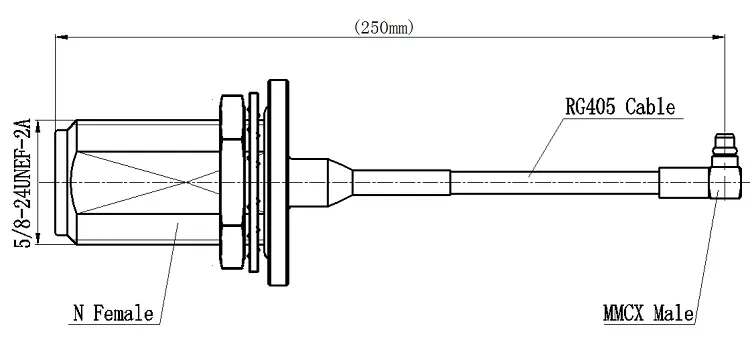

RG405 jumper N Female Bulkhead To MMCX Male Angle,250mm
(N-KYB2-1-MMCX-JWB2-250mm)
| Interface According to：IEC 60169-16/CECC22340 | |
Electrical Performance Characteristic Impedance：50 ohm Frequency Range：DC-3GHz VSWR： ≤1.2(DC-3GHz) Dielectric Withstanding Voltage：≥2500V RMS,50Hz,at sea level Dielectric Resistance： ≥5000MΩ Contact Resistance：Center Contact ≤1.0mΩ Outer Contact ≤1.0mΩ Durability：Mating cycles ≥500 | Material and plating Body：Brass, Ag plating Insulator：PTFE, NATURAL Contact PIN：Brass,Ag plating
Environmental Temperature Range：-40℃～+85℃ Waterproof：IP67 RoHS ：Full RoHS-Compliance |
All products appearance, technical performance and electroplating can be customized according to customer requirements.
