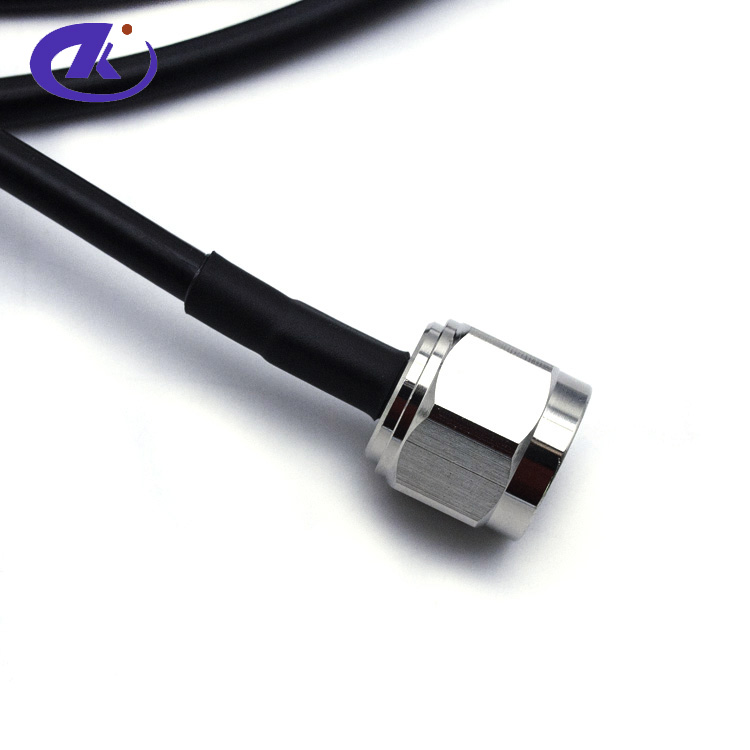

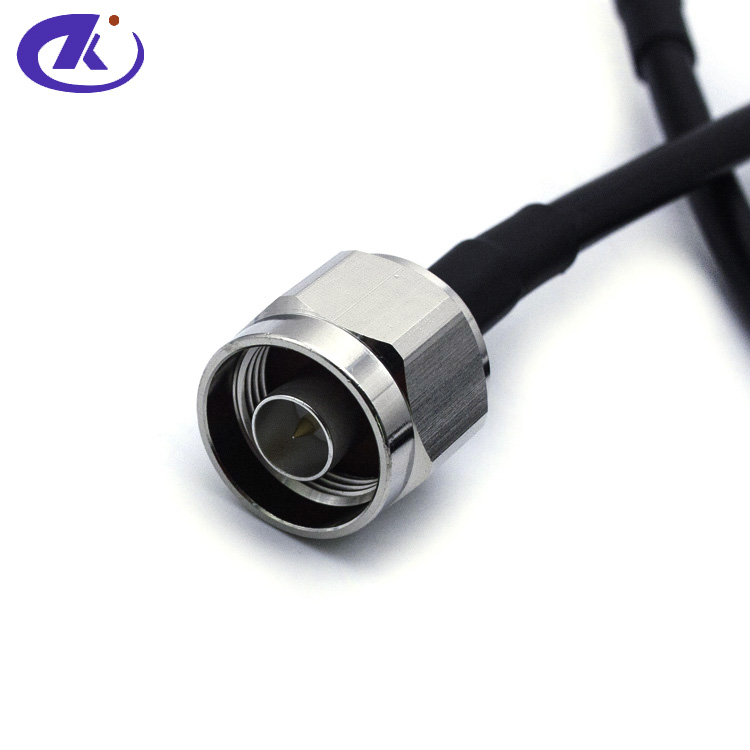

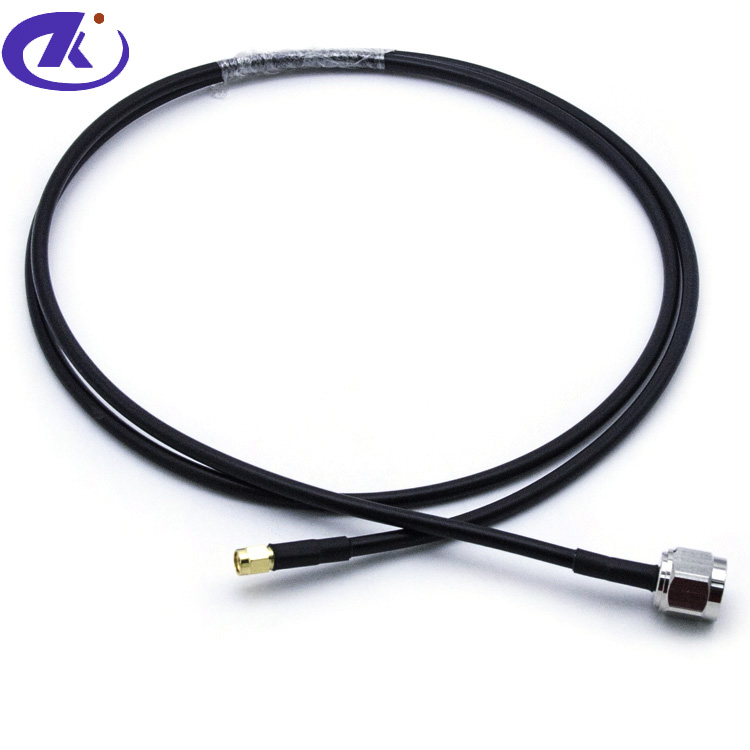

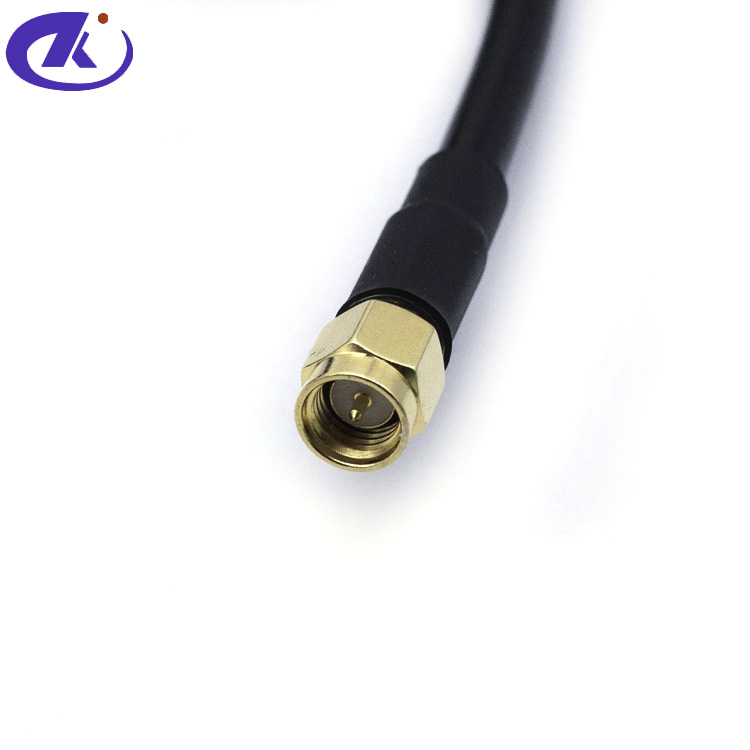

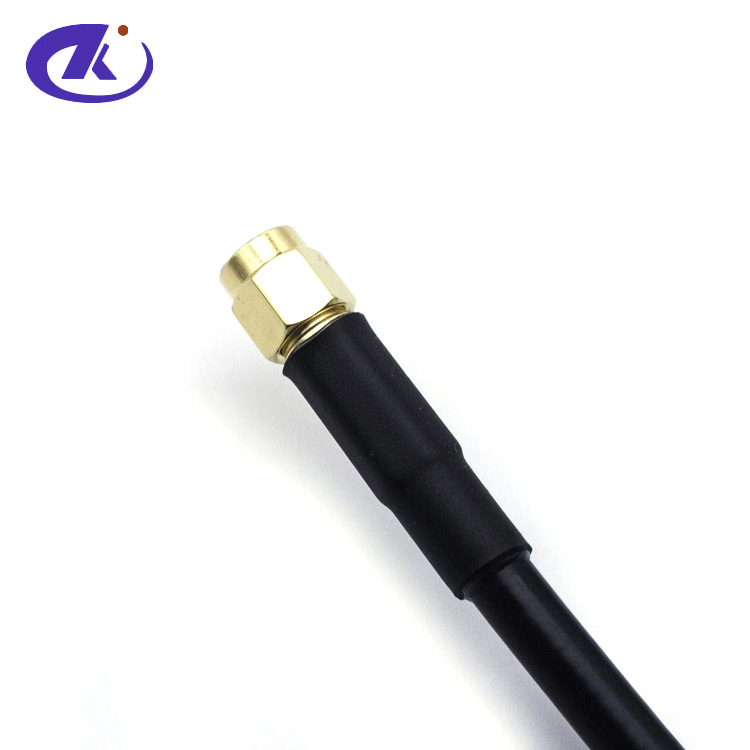

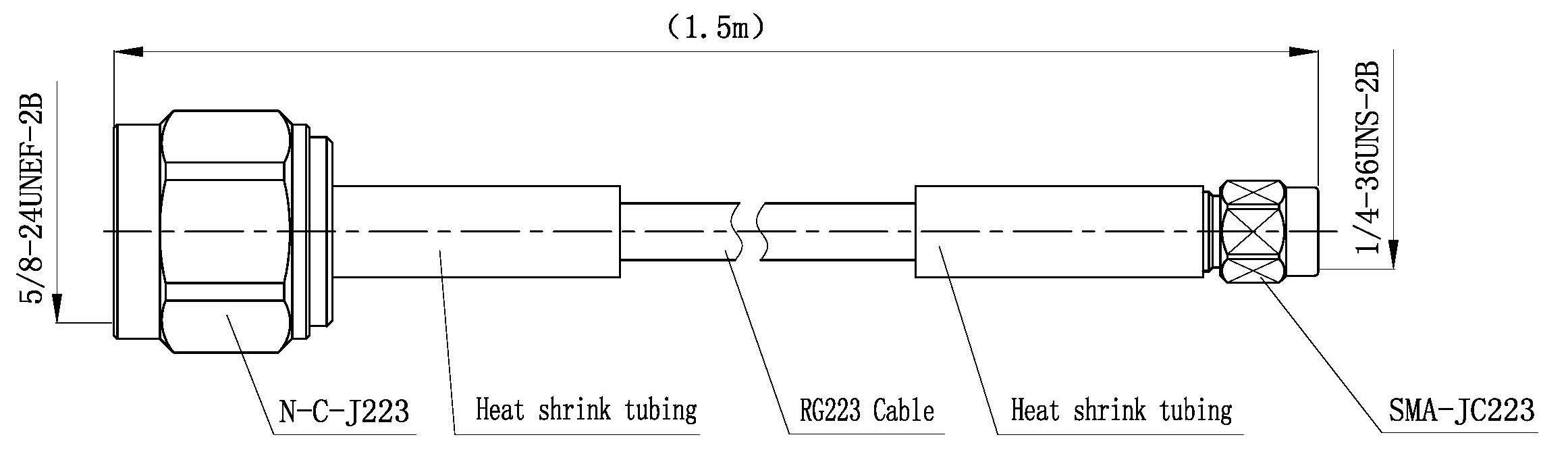

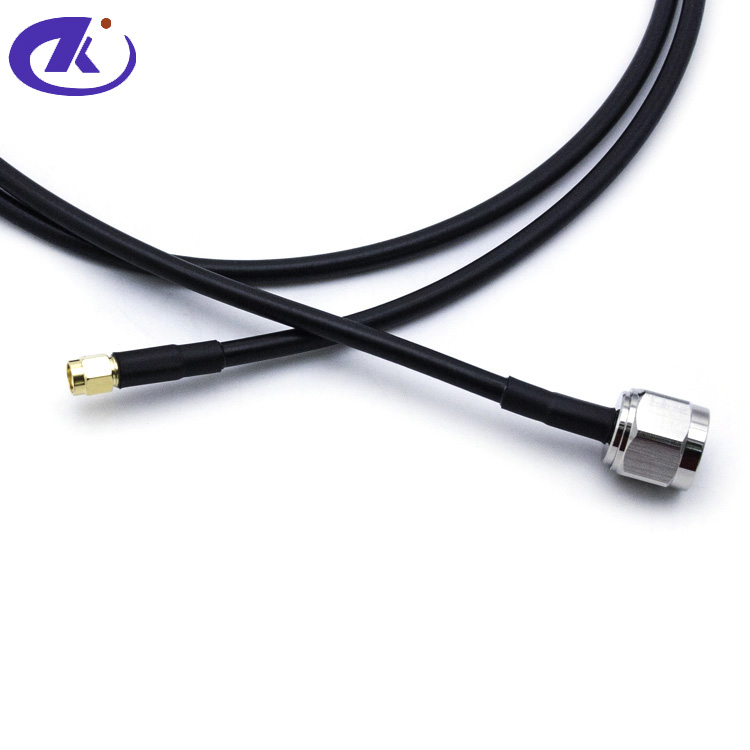

RG223, N Male straight to SMA Male straight (N-C-J223-SMA-JC223-1.5m)

Electrical Performance

Characteristic Impedance：50 ohm

Frequency Range：DC-3GHz

VSWR                                  ≤1.2(DC-3GHz),

Dielectric Withstanding Voltage     ≥2500V RMS,50Hz,at sea level

Dielectric Resistance               ≥5000MΩ

Contact Resistance    Center Contact ≤1.0mΩ

                                Outer Contact ≤1.0mΩ

Durability                    Mating cycles ≥500

Material and plating

Body                      Brass, Tri-alloy/Ni plating

Insulator                            PTFE, NATURAL

Contact PIN                    Brass,Ag/Au plating

Environmental

Temperature Range                -40℃～+85℃

Waterproof                                 IP67

RoHS                         Full RoHS-Compliance
