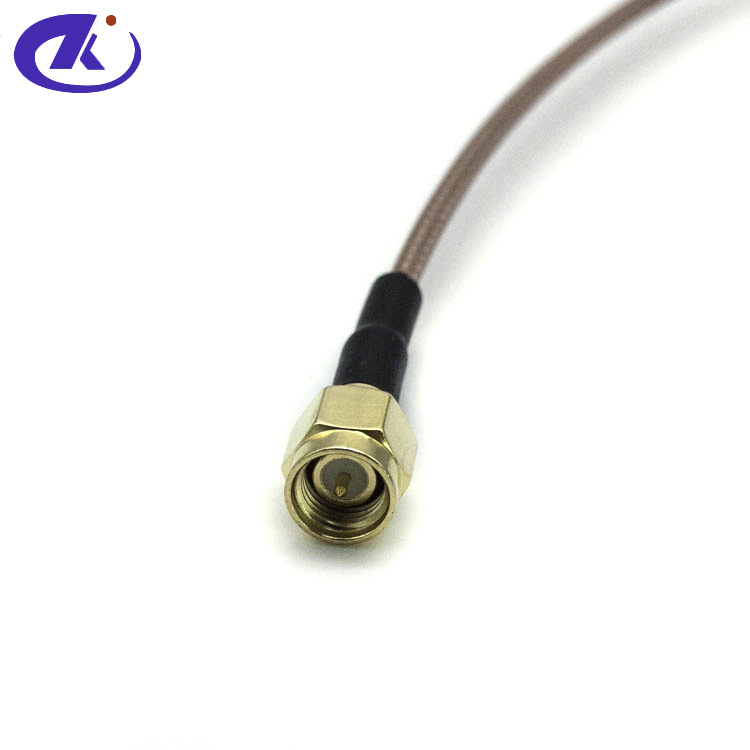

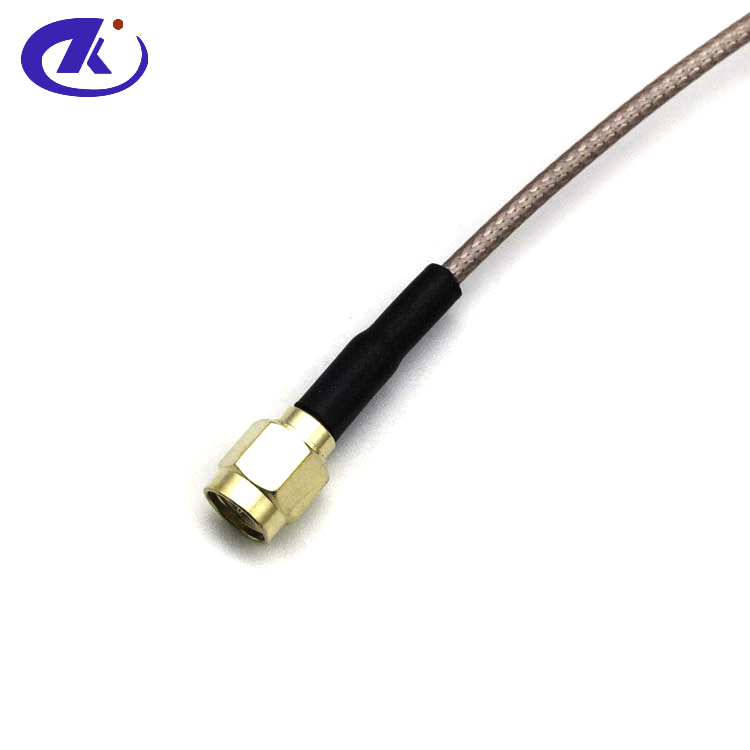

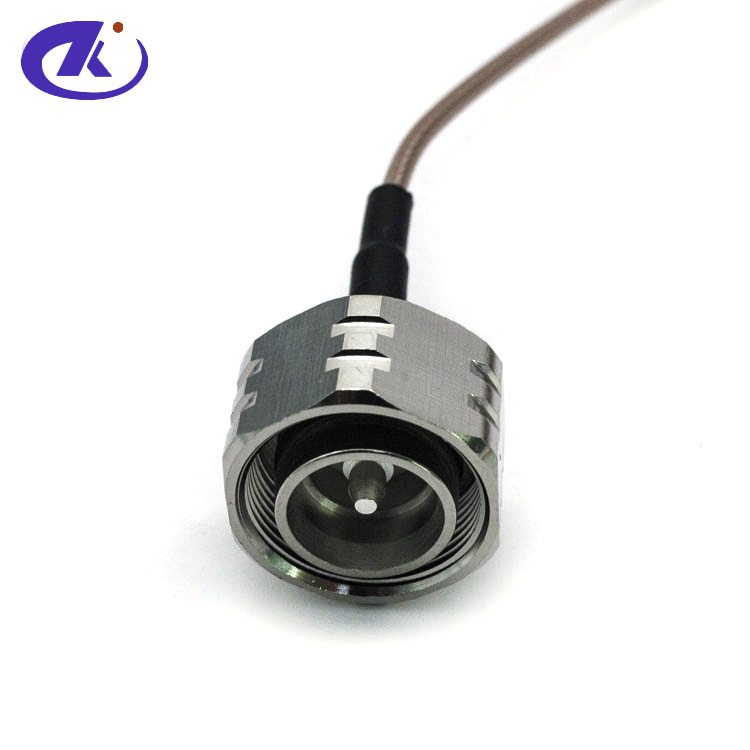

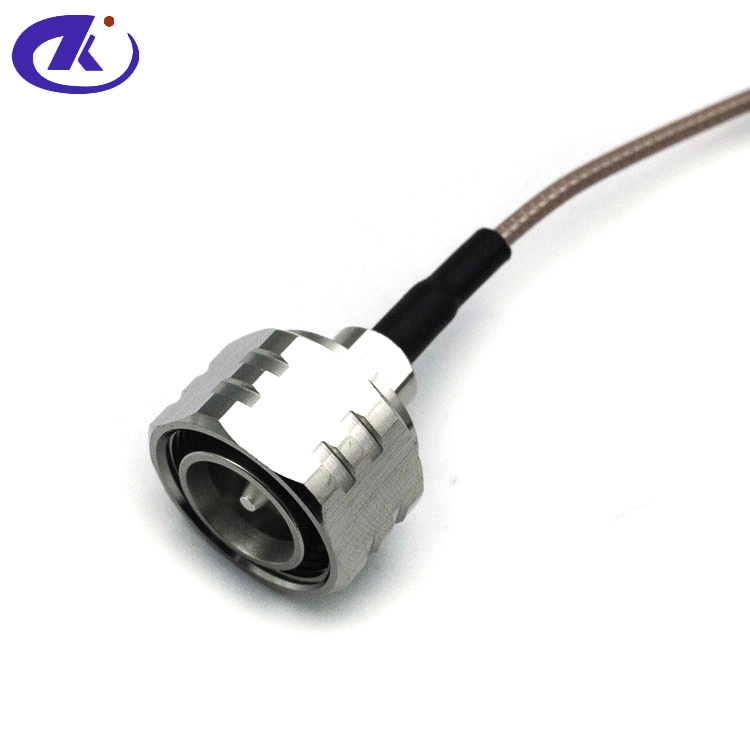

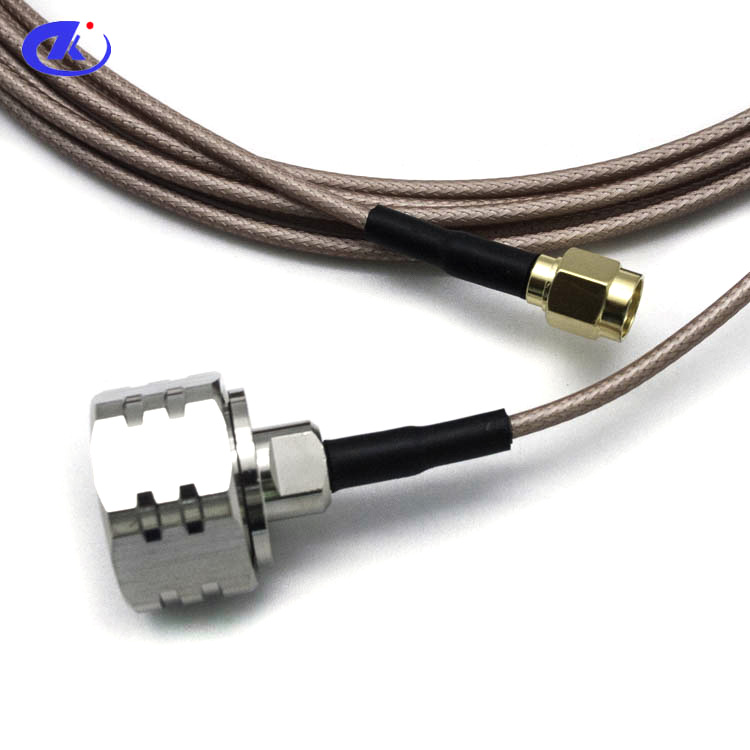

RG316 jumper cable, 4.3/10 male to SMA male connector ,L(m) (4.3-10-C-J316/SMA-C-J240-L(m)

RG316 jumper cable, 4.3/10 male to SMA male connector ,L(m)

(4.3-10-C-J316/SMA-C-J240-L(m)

Interface

According to:IEC61169-54

Electrical

1. Characteristic Impedance:50ohm

2. Frequency Range:DC-3GHz

3. VSWR:≤ 1.25

4. Dielectric Resistance:≥5000MΩ

5. Dielectric Withstanding Voltage:≥1000V AC

Mechanical

1.Durability :Mating cycles ≥500

2.Material and plating:

   4.3/10 Connector Body Material: Brass  Plating: Ni

   SMA Connector Body Material: Brass  Plating: Au

   Insulator Material: PTFE

   Center Conductor Material:Brass  Plating: Au

Environmental

1.Temperature Range:-45℃ to +85℃

2.RoHS Compliant: Pass

3.Water tightness:IP67(1m water depth/24hours)

4.Salt-fog test:≥96h

Note:

All products appearance,technical performance and electroplating can be customized according to your requirements.
