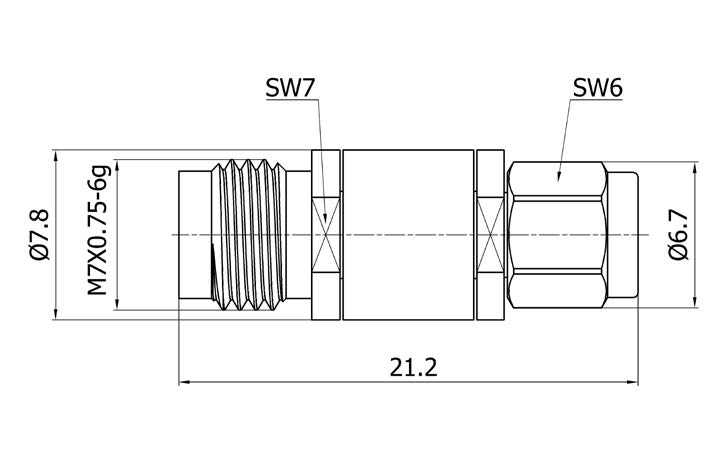

High frequency DC-65GHz 1.0 male plug to 1.85 female plug adaptor stainless steel
(1.0/1.85-JK)
 | |
| 1.0/1.85 adaptor | |
| Frequency | DC-65GHz |
| Impedance | 50ohm |
| VSWR | ≤ 1.35 |
| Insertion loss | ≤ 0.60dB |
| Body plating | Stainless steel S30300 Passivation |
| Pin Material | Beryllium bronze(C17300) |
| Pin plating | Golden Plating |
| Insulation | PEI |
| Length | 21.2mm |
| Temperature range | -40~+85 |
