ADAPTOR

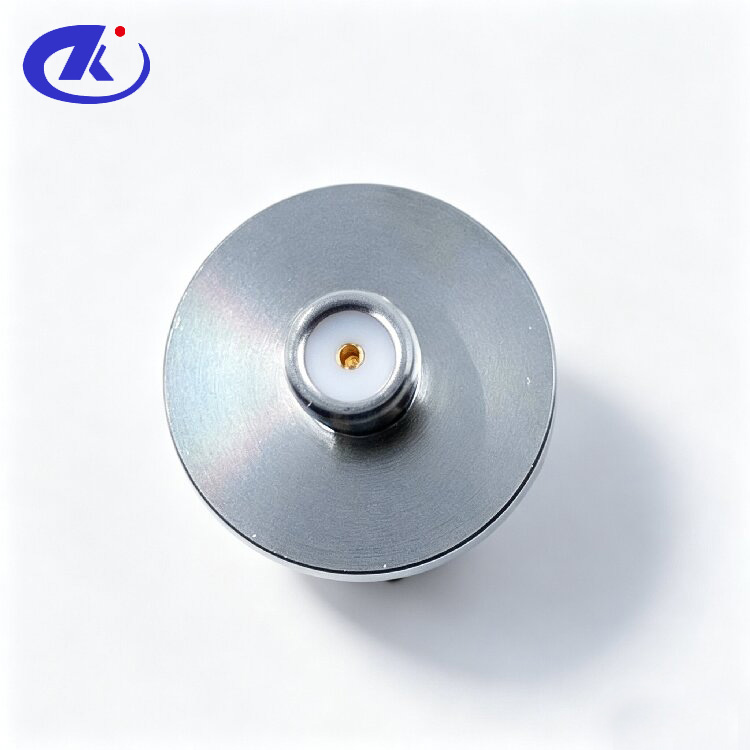

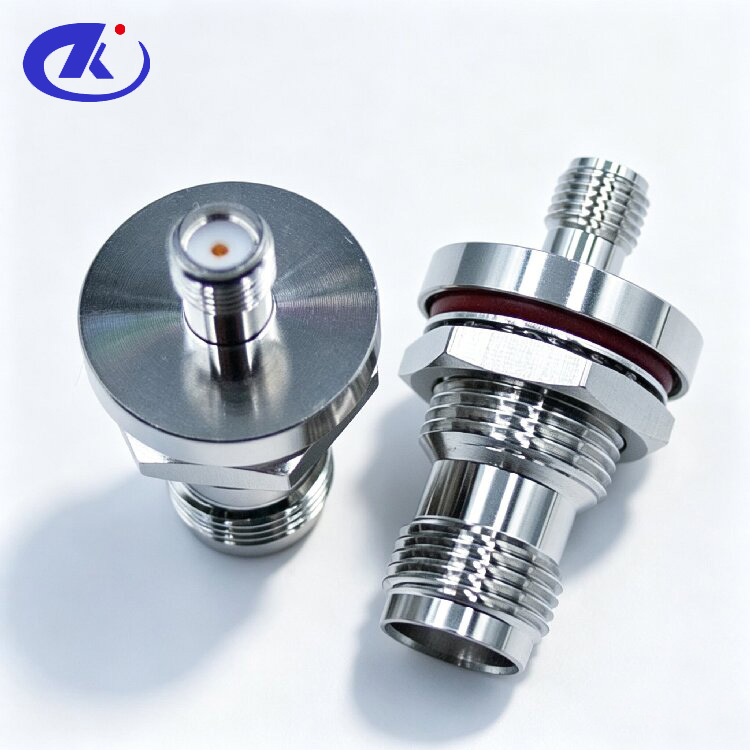

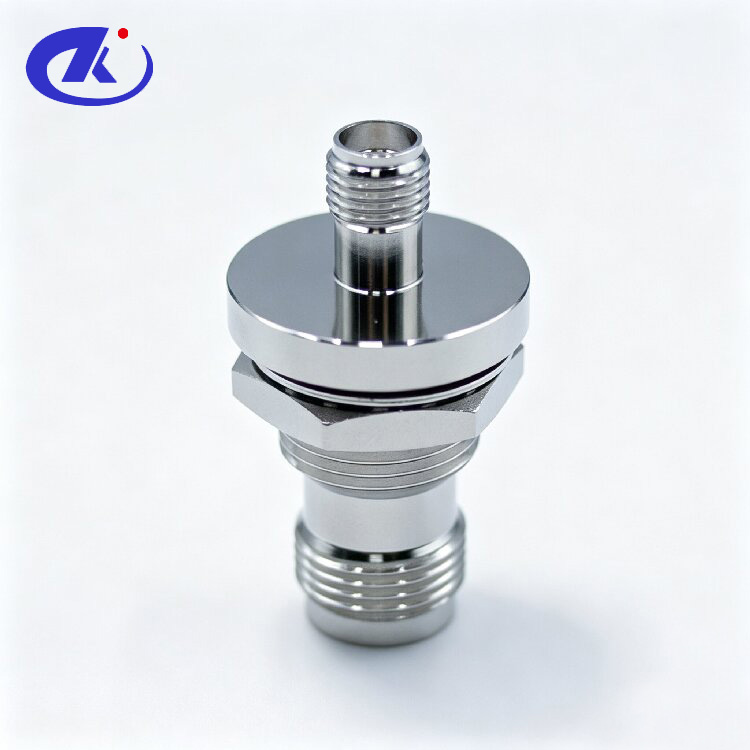

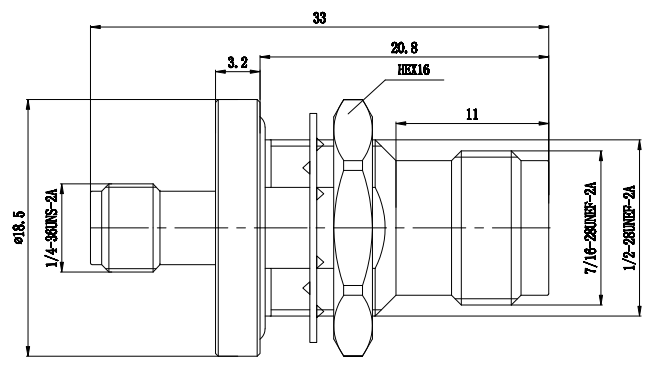

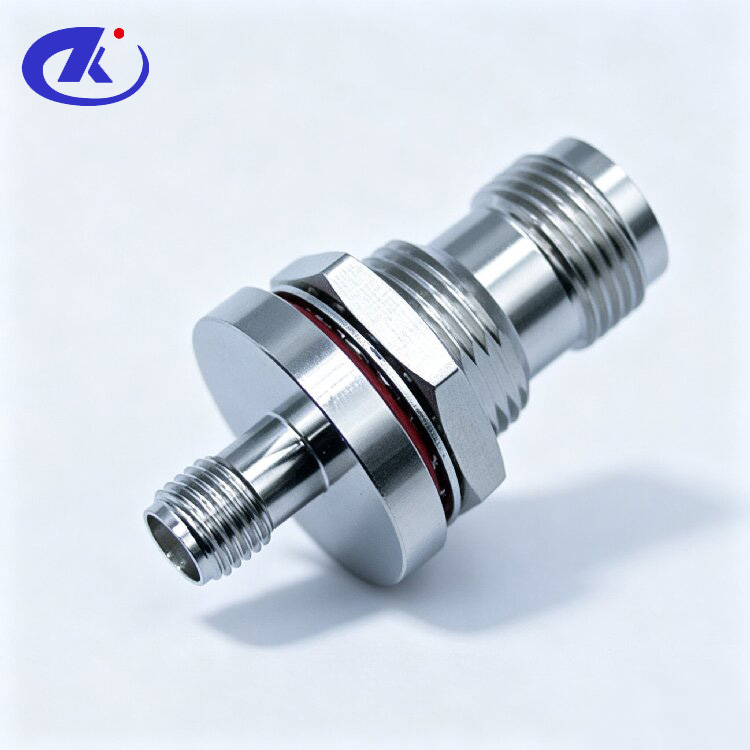

TNC Female to SMA Female Bulkhead Adaptor(TNC/SMA-M-KKY-3)

SPECIFICATION

TNC Female to SMA Female Bulkhead Adaptor

(TNC/SMA-M-KKY-3)

Interface

According to：IEC 60169-15/60169-17

Electrical Performance

Characteristic Impedance：50 ohm

Frequency Range：DC-11GHz

Dielectric Withstanding Voltage：≥1000V RMS,50Hz,at sea level

Dielectric Resistance：≥1000MΩ

Contact Resistance：Center Contact ≤2.5mΩ Outer Contact ≤5mΩ

Durability：Mating cycles ≥500

Material and plating

Body：Brass, Ni plating

Insulator：PTFE, NATURAL

Contact PIN：Phosphor Bronze,Au plating

Environmental

Temperature Range：-40℃～+85℃

Waterproof：IP67

RoHS：Full RoHS-Compliance

All products appearance, technical performance and electroplating can be customized according to customer requirements.
