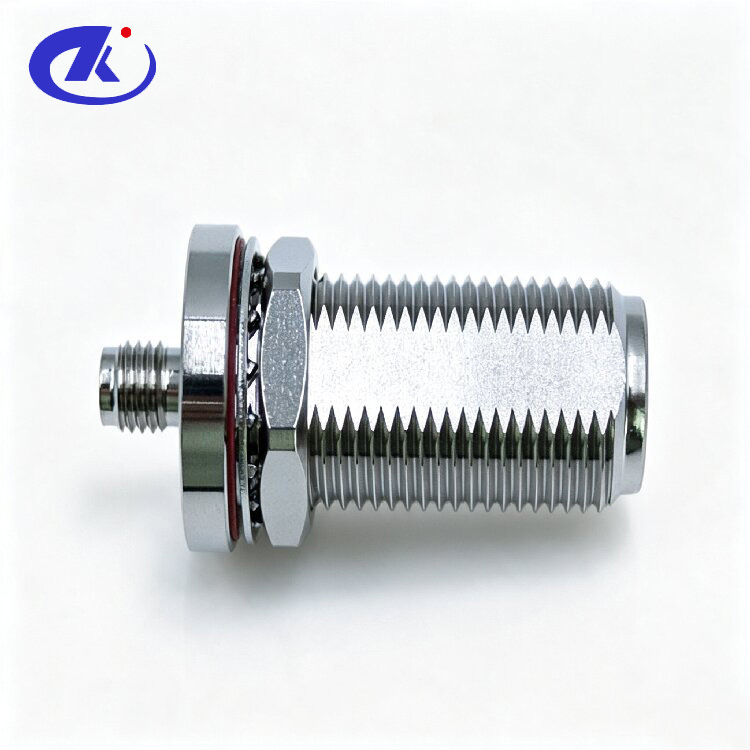

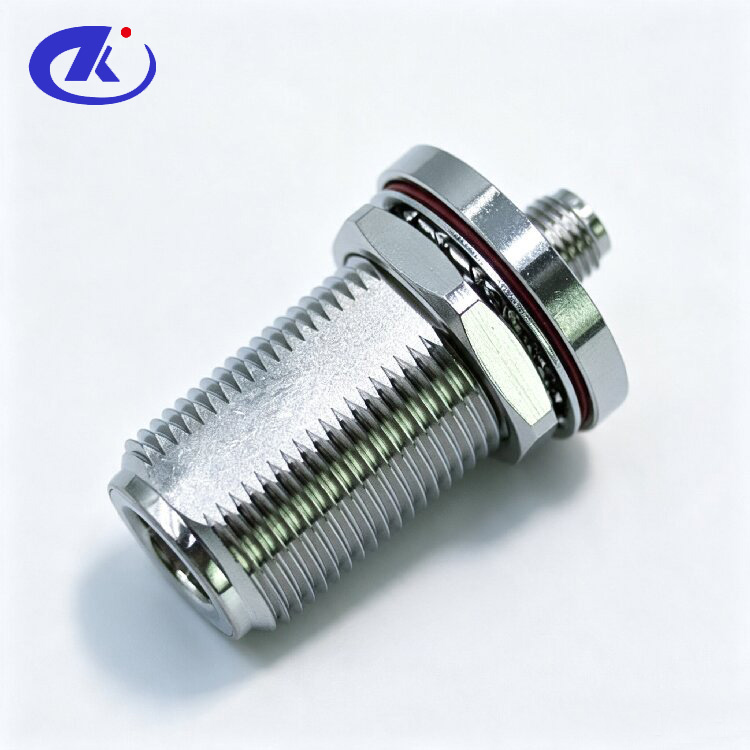

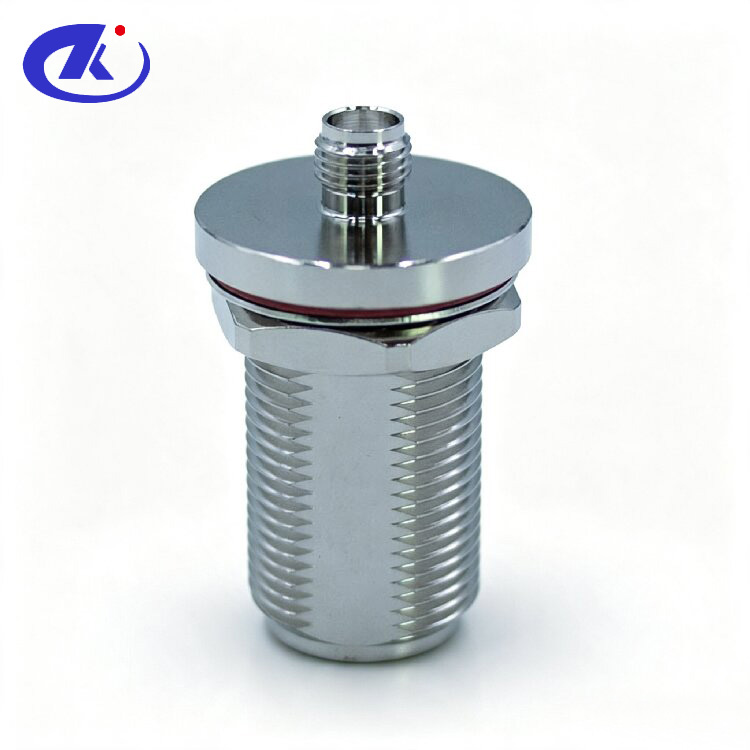

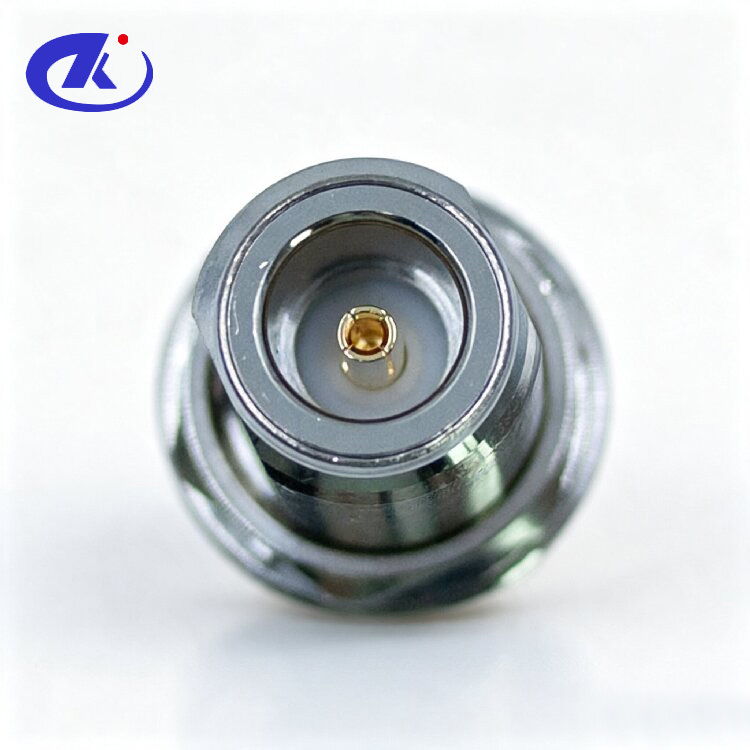

Adaptor N Female to SMA Female Bulkhead Golden Pin(N-SMA-M-KKY-1)

SPECIFICATION

Adaptor N Female to SMA Female Bulkhead Golden Pin

(N-SMA-M-KKY-1)

Interface

According to：IEC 60169-16/IEC 60169-15

Electrical Performance

Characteristic Impedance：50 ohm

Frequency Range：DC-3GHz

VSWR：≤1.08(DC-1GHz) ≤1.10(1-3)GHz

Dielectric Withstanding Voltage：≥1000V RMS,50Hz,at sea level

Dielectric Resistance：≥5000MΩ

Contact Resistance：Center Contact ≤1.0mΩ Outer Contact ≤1.0mΩ

Durability：Mating cycles ≥500

Material and plating

Body：Brass, Ni plating

Insulator：PTFE, NATURAL

Contact PIN：Brass,Au plating

Environmental

Temperature Range：-40℃～+85℃

RoHS：Full RoHS-Compliance

All products appearance, technical performance and electroplating can be customized according to customer requirements.
