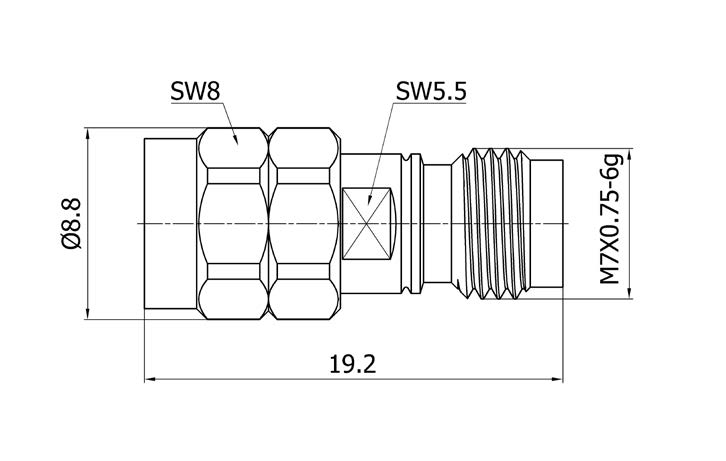

High frequency DC-50GHz 1.85 male plug to 2.4 female jack adaptor
(1.85/2.4-JK)
| 1.85/2.4adaptor | |
| Frequency | DC-50GHz |
| Impedance | 50ohm |
| VSWR | ≤ 1.30 |
| Insertion loss | ≤ 0.50dB |
| Body plating | Stainless steel S30300 Passivation |
| Pin Material | Beryllium bronze(C17300) |
| Pin plating | Golden Plating |
| Insulation | PEI |
| Length | 19.2mm |
| Temperature range | -40~+85 |
