SUS30300 High frequency DC-90GHz 1.35 male to 1.35 female adaptor
(1.35-JK)

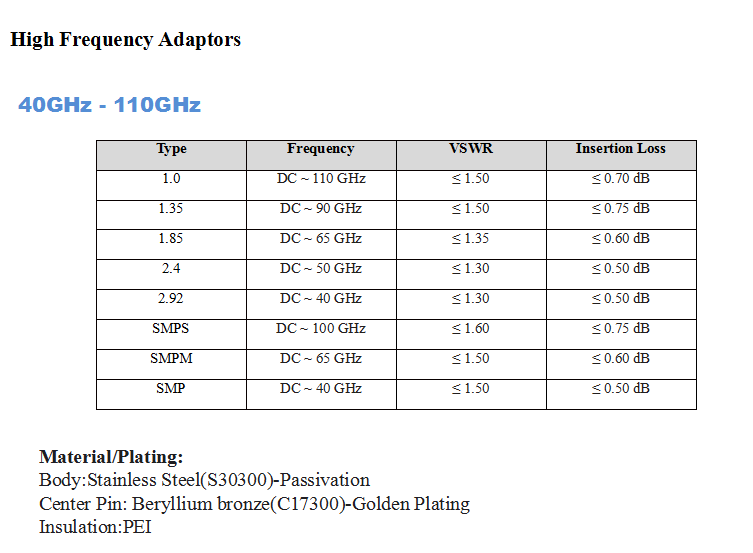

1.35 adaptor | |
| Frequency | DC-90GHz |
| Impedance | 50ohm |
| VSWR | ≤ 1.50 |
| Insertion loss | ≤ 0.75dB |
| Body plating | Stainless steel S30300 Passivation |
| Pin Material | Beryllium bronze(C17300) |
| Pin plating | Golden Plating |
| Insulation | PEI |

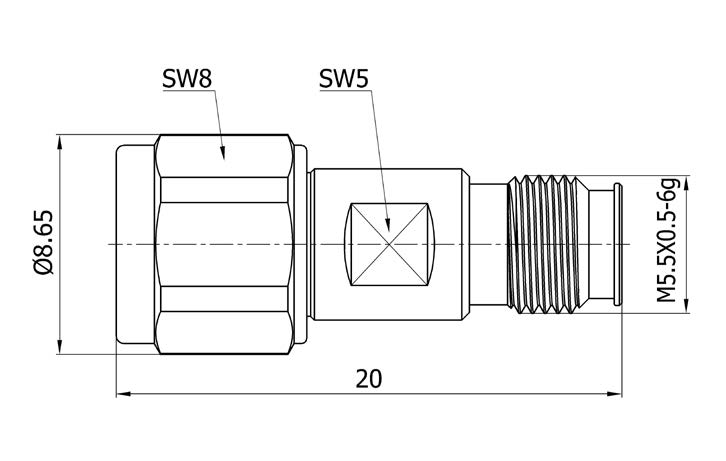

| Length | 20mm |
| Temperature range | -40~+85 |
