High frequency DC-40GHz 2.4 male plug to 2.92 female jack adaptor
(2.4/2.92-JK)
 | |

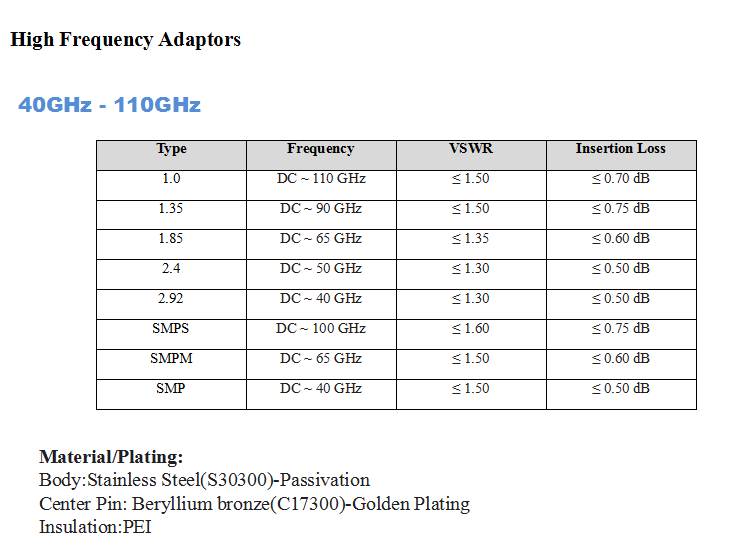

| 2.4/2.92 adaptor | |
| Frequency | DC-40GHz |
| Impedance | 50ohm |
| VSWR | ≤ 1.30 |
| Insertion loss | ≤ 0.50dB |
| Body plating | Stainless steel S30300 Passivation |
| Pin Material | Beryllium bronze(C17300) |
| Pin plating | Golden Plating |
| Insulation | PEI |

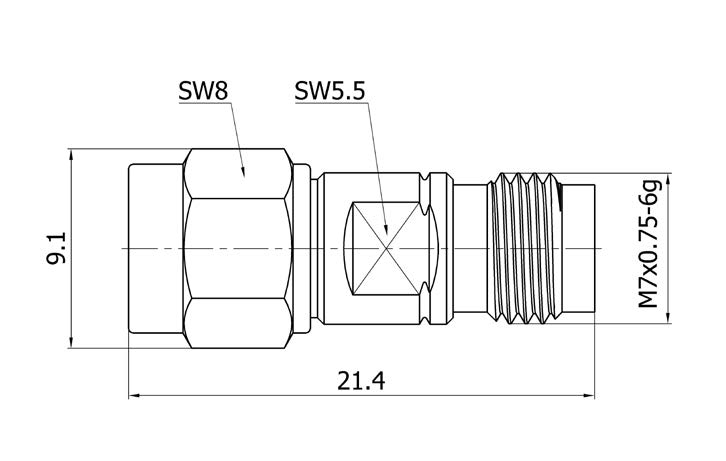

| Length | 21.4mm |
| Temperature range | -40~+85 |
