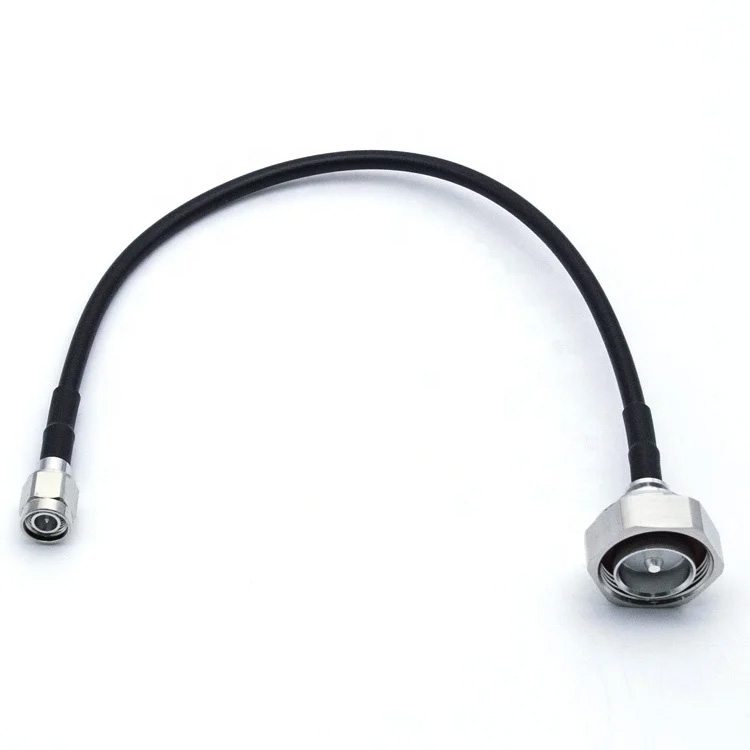

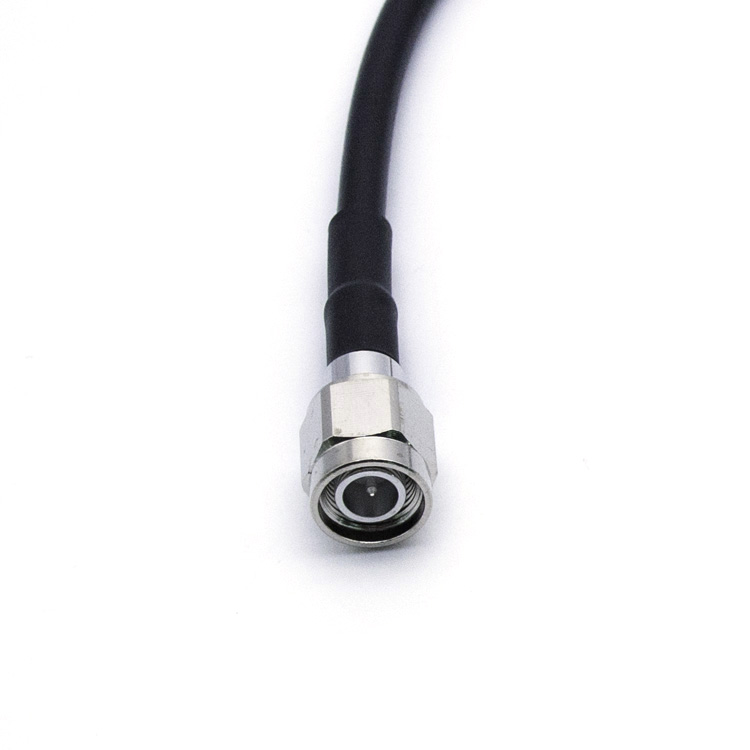

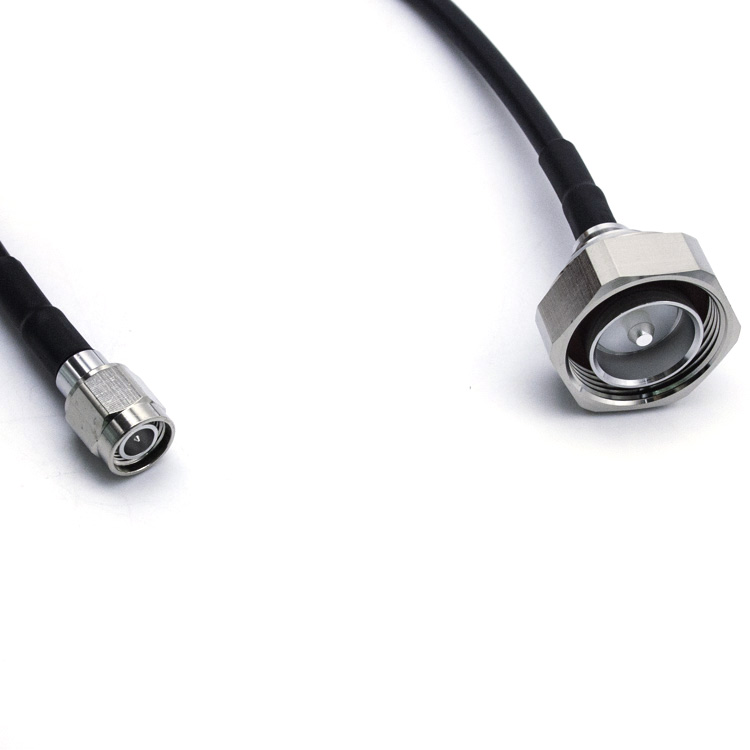

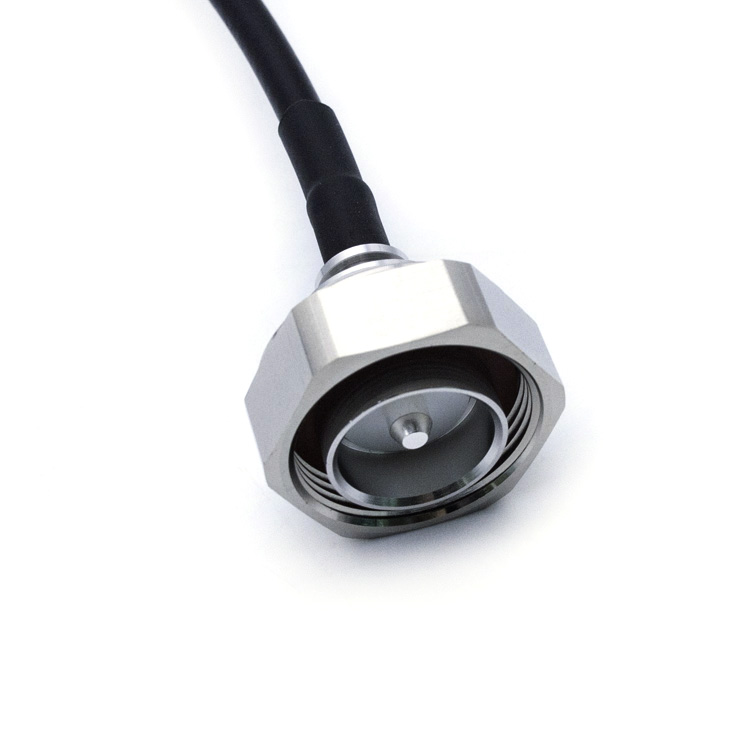

LMR240 Jumper, DIN Male straight to TNC Male straight(7/16-C-J240-3/TNC-C-J240-400mm)

SPECIFICATION

LMR240 Jumper, DIN Male straight to TNC Male straight

(7/16-C-J240-3/TNC-C-J240-400mm)

Interface

According to：IEC 60169-4/IEC 60169-17

Electrical Performance

Characteristic Impedance：50 ohm

Frequency Range：DC-3GHz

VSWR:≤1.2(0-3G)

Dielectric Withstanding Voltage：≥750V RMS,50Hz,at sea level

Dielectric Resistance：≥5000MΩ

Contact Resistance：Center Contact ≤0.4mΩ Outer Contact ≤0.2mΩ

Durability：Mating cycles ≥500

Material and plating

Body：Brass, Tri-alloy/Ni plating

Insulator：PTFE, NATURAL

Contact PIN：Brass,Ag/Au plating

Environmental

Temperature Range：-40℃～+85℃

Waterproof(1m water depth, 24hours)：IP68

RoHS：Full RoHS-Compliance

All products appearance, technical performance and electroplating can be customized according to customer requirements.
