SPECIFICATION

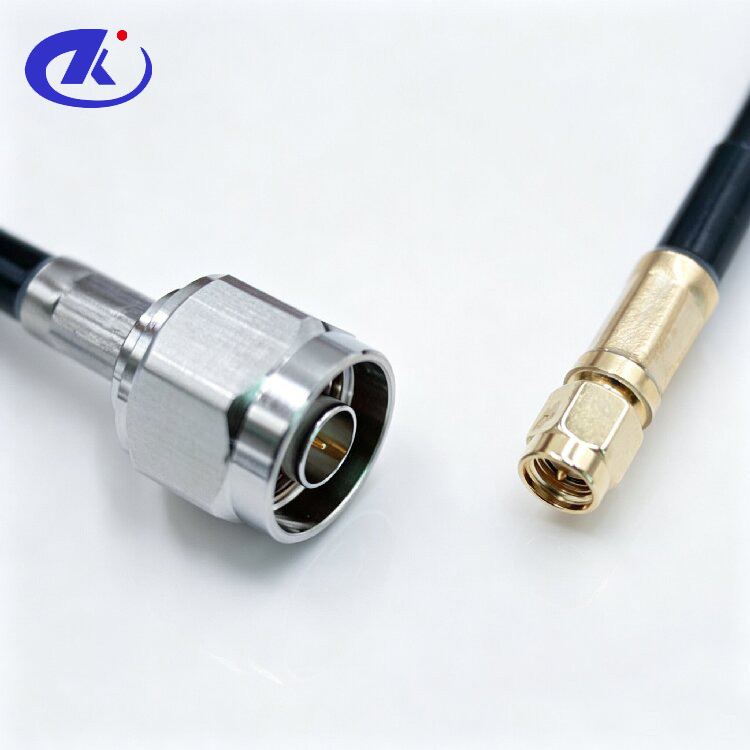

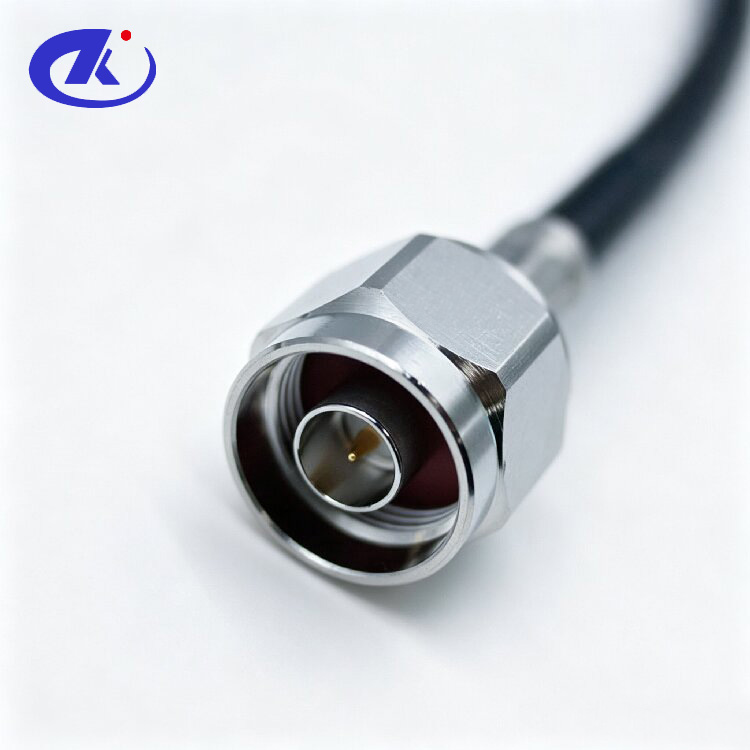

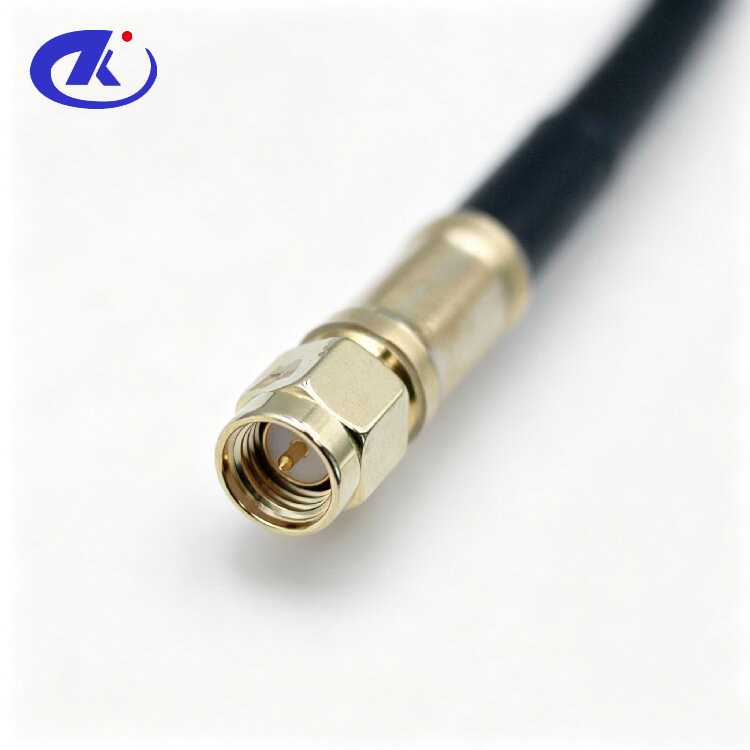

RF Jumper with N Male and SMA Male Crimp Connector for LMR240 Coaxial Cable，500mm
(N-C-J240-11A-SMA-C-J240-2-500mm)
| Interface According to：IEC 60169-16/IEC 60169-15 | |
Electrical Performance Characteristic Impedance：50 ohm Frequency Range：DC-2.5GHz VSWR:≤1.20 Dielectric Withstanding Voltage：≥2500RMS,50Hz,at sea level Dielectric Resistance：≥5000MΩ Contact Resistance：Center Contact ≤1.0mΩ Outer Contact ≤1.0mΩ Durability：Mating cycles ≥500 | Material and plating Body：Brass, Ni/Au plating Insulator：PTFE, NATURAL Contact PIN：Brass,Au plating
Environmental Temperature Range：-40℃～+85℃ Waterproof(1m water depth, 24hours)：IP67 RoHS：Full RoHS-Compliance |
All products appearance, technical performance and electroplating can be customized according to customer requirements.
