SPECIFICATION

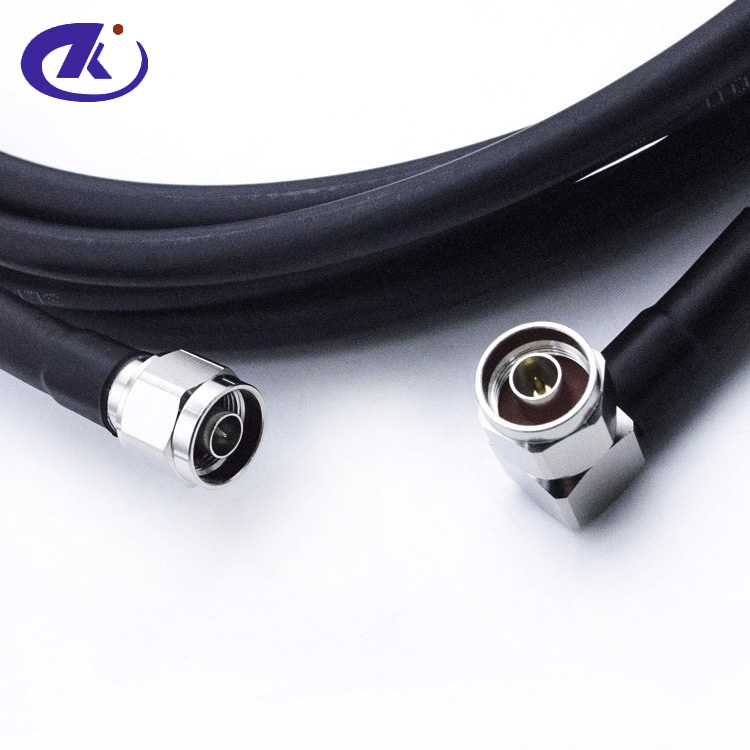

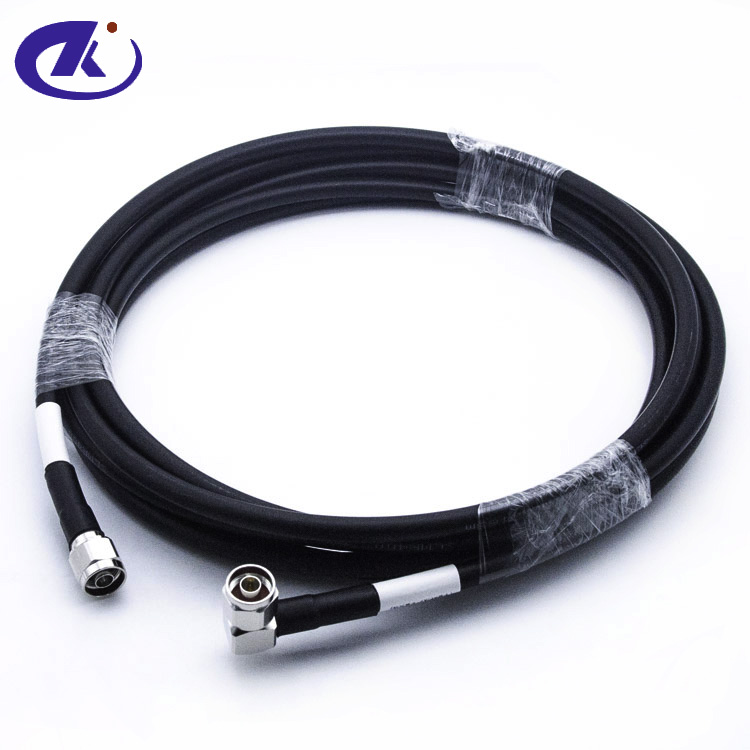

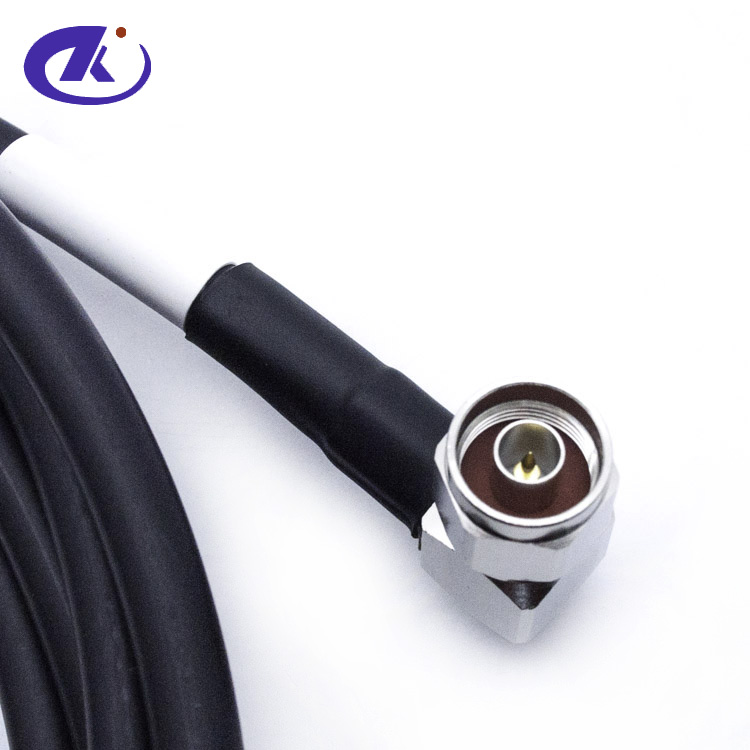

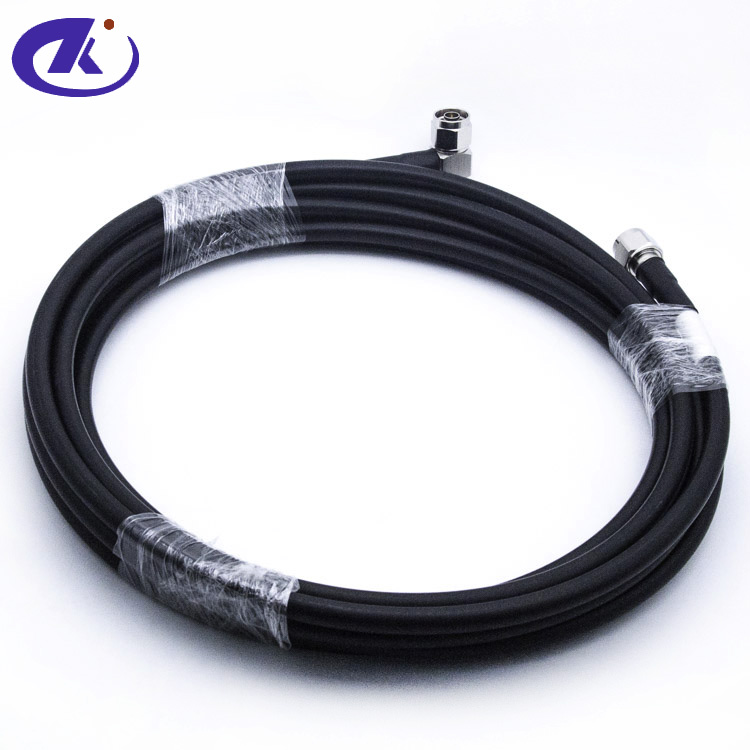

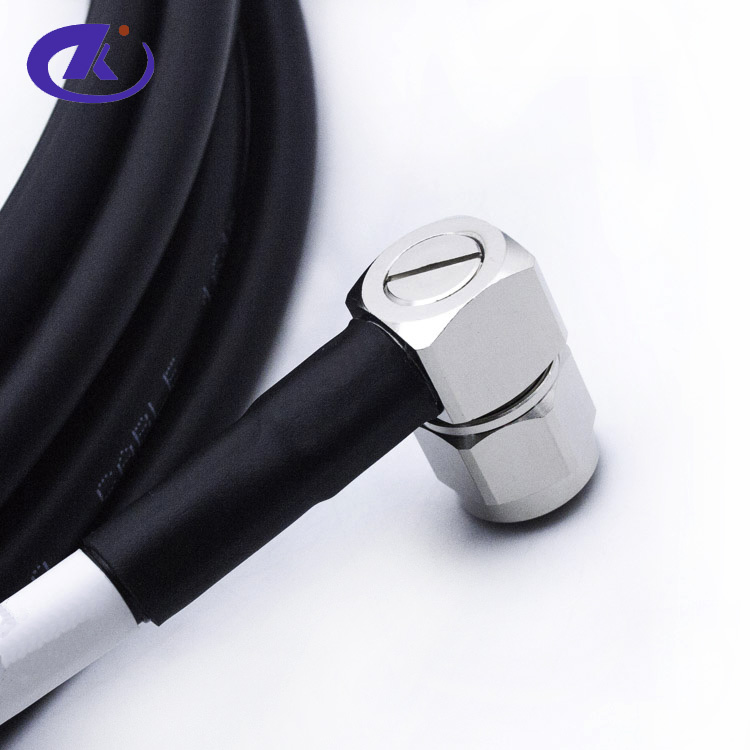

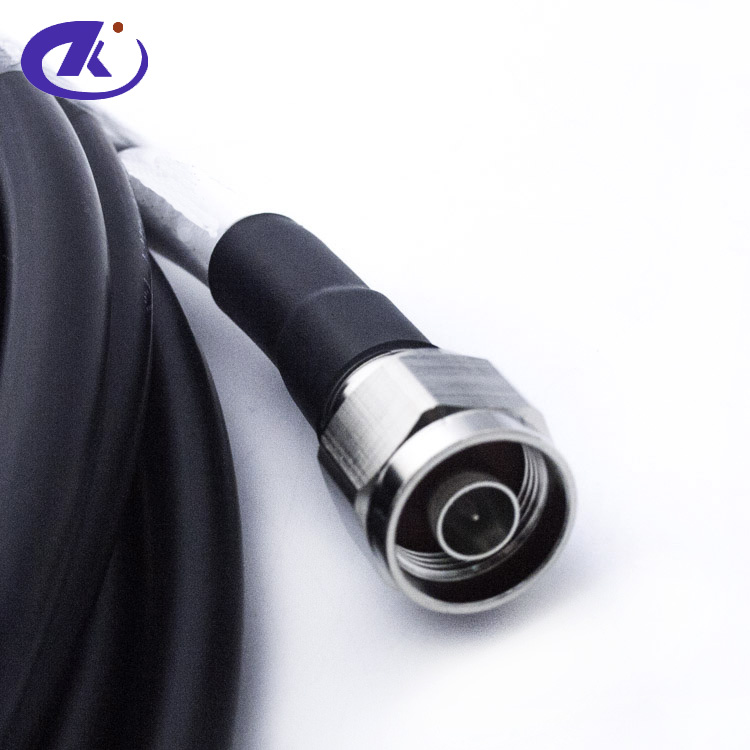

LMR400 Jumper, N Male straight to N Male Right Angle Connector
N-C-J7A-3/N-C-JW400-5-L(m)
| Interface According to：IEC 60169-16 | |
Electrical Performance Characteristic Impedance：50 ohm Frequency Range：DC-3GHz VSWR:≤1.2(0-3G) Dielectric Withstanding Voltage：≥750V RMS,50Hz,at sea level Dielectric Resistance：≥5000MΩ Contact Resistance：Center Contact ≤0.4mΩ Outer Contact ≤0.2mΩ Durability：Mating cycles ≥500 | Material and plating Body：Brass, Tri-alloy/Ni plating Insulator：PTFE, NATURAL Contact PIN：Brass,Ag/Au plating
Environmental Temperature Range：-40℃～+85℃ Waterproof(1m water depth, 24hours)：IP68 RoHS：Full RoHS-Compliance |
All products appearance, technical performance and electroplating can be customized according to customer requirements.
