ADAPTOR

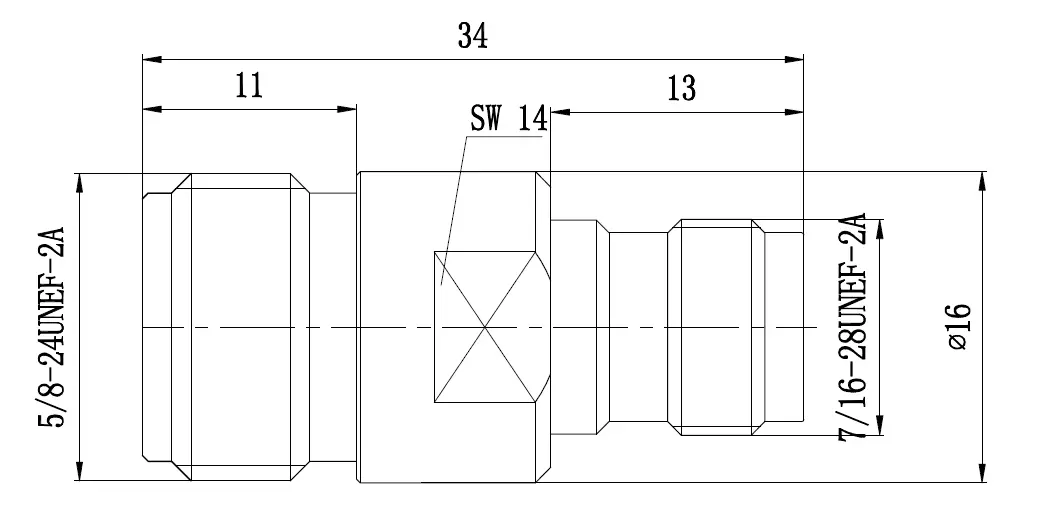

Adaptor N female to TNC female (N/TNC-KK)

SPECIFICATION

Adaptor N female to TNC female

(N/TNC-KK)

Interface

According to：IEC 60169-16/IEC 60169-17

Electrical Performance

Characteristic Impedance：50 ohm

Frequency Range：DC-3GHz

VSWR：≤1.1

Dielectric Withstanding Voltage：≥1500V RMS,50Hz,at sea level

Dielectric Resistance：≥5000MΩ

Contact Resistance：Center Contact ≤1.0mΩ Outer Contact ≤0.5mΩ

Durability：Mating cycles ≥500

Material and plating

Body：Brass, Ni plating

Insulator：PTFE, NATURAL

Contact PIN：Brass,Au plating

Environmental

Temperature Range：-40℃～+85℃

Waterproof：(1m water depth, 24hours) IP68

RoHS：Full RoHS-Compliance

All products appearance, technical performance and electroplating can be customized according to customer requirements.
