SPECIFICATION

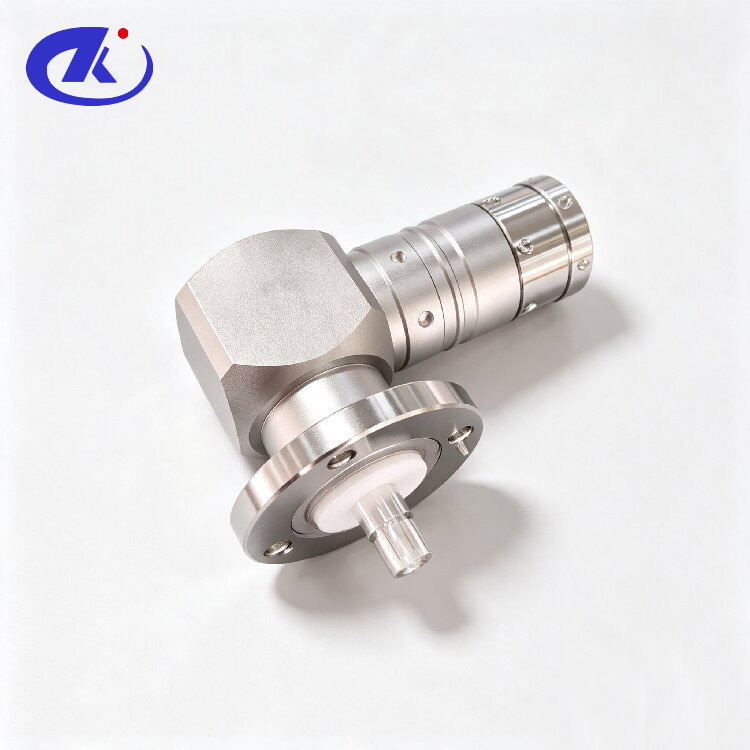

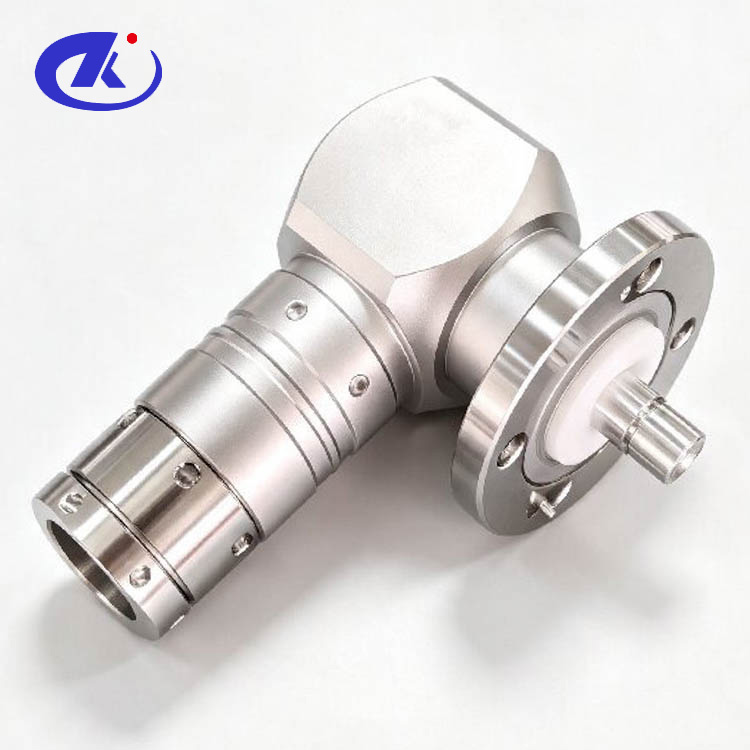

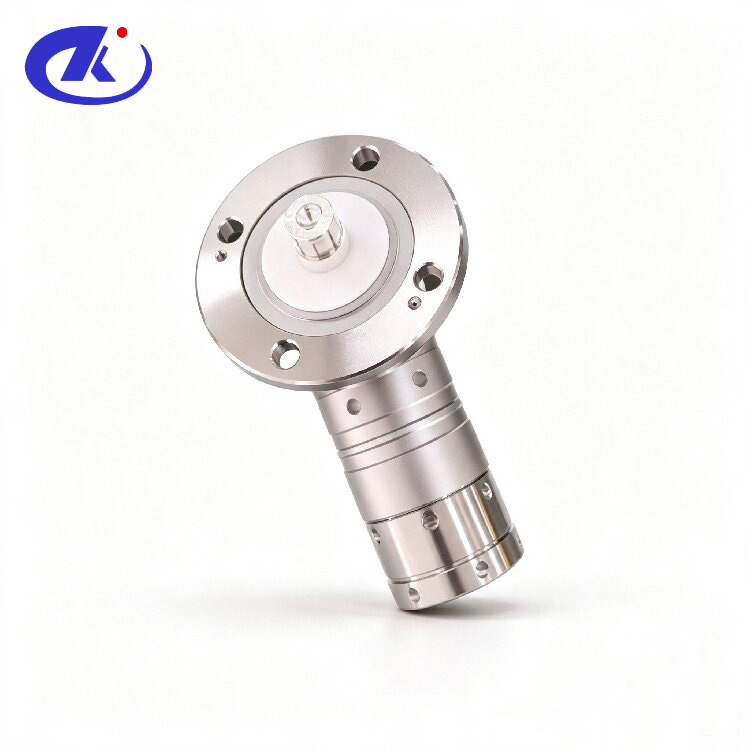

IF70 Male R/A 4 Holes Flange Type 1-1/8'' EIA 4holes Panel Mount
(IF70-JW1-1/8(AIR))
| Interface According to：IEC339 | |
Electrical Performance Characteristic Impedance：50 ohm Frequency Range：DC-1GHz VSWR：≤1.10 Dielectric Withstanding Voltage：≥4000V RMS,50Hz,at sea level Dielectric Resistance：≥5000MΩ Durability：Mating cycles ≥500 | Material and plating Body：Brass, Ni plating Insulator：PTFE, NATURAL Contact PIN：Bronze,Ag plating
Environmental Temperature Range：-40℃～+85℃ RoHS：Full RoHS-Compliance |
All products appearance, technical performance and electroplating can be customized according to customer requirements.
