SPECIFICATION

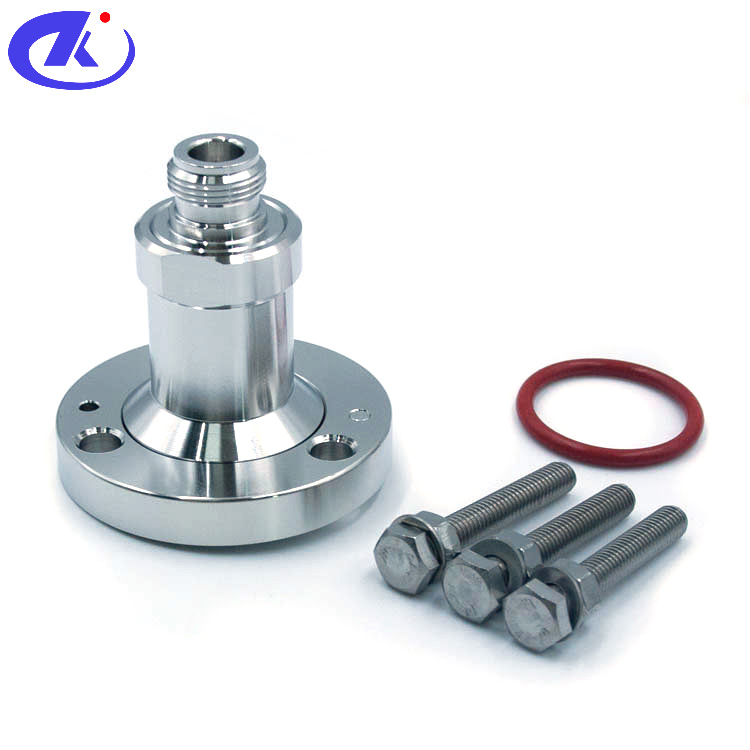

IF45 Female to N Female Adaptor(IF45/N-KK)
| Interface According to：IEC60169-16 IEC339-2 | |
Electrical Performance Characteristic Impedance：50 ohm Frequency Range：DC-1GHz VSWR：≤1.15 Dielectric Withstanding Voltage：≥2500V RMS,50Hz,at sea level Dielectric Resistance：≥5000MΩ Durability：Mating cycles ≥500 | Material and plating Body：Brass, Tri-alloy plating Insulator：PTFE, NATURAL Contact PIN：Bronze,Ag plating
Environmental Temperature Range：-40℃～+85℃ Watertightness(1m water depth, 24hours)：IP68 RoHS：Full RoHS-Compliance |
All products appearance, technical performance and electroplating can be customized according to customer requirements.
