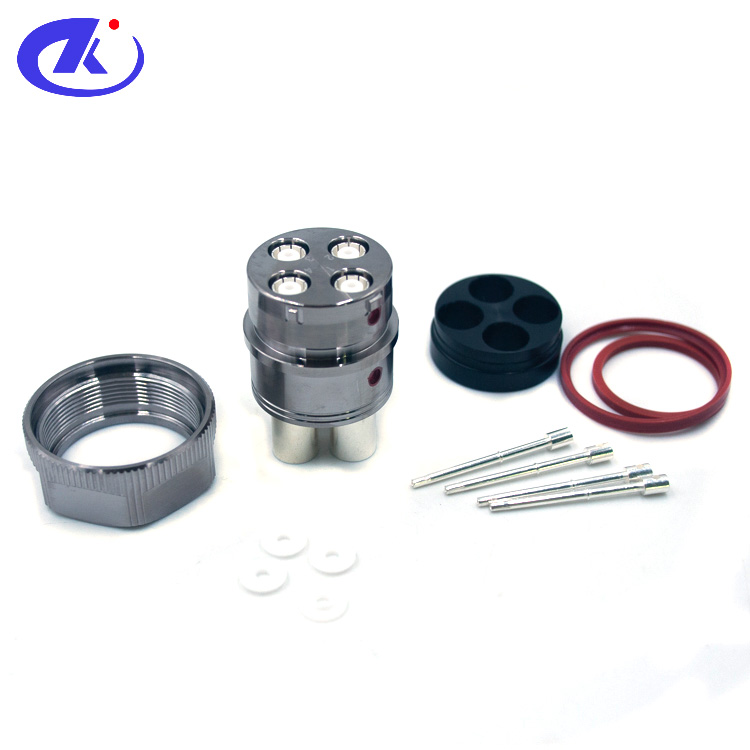

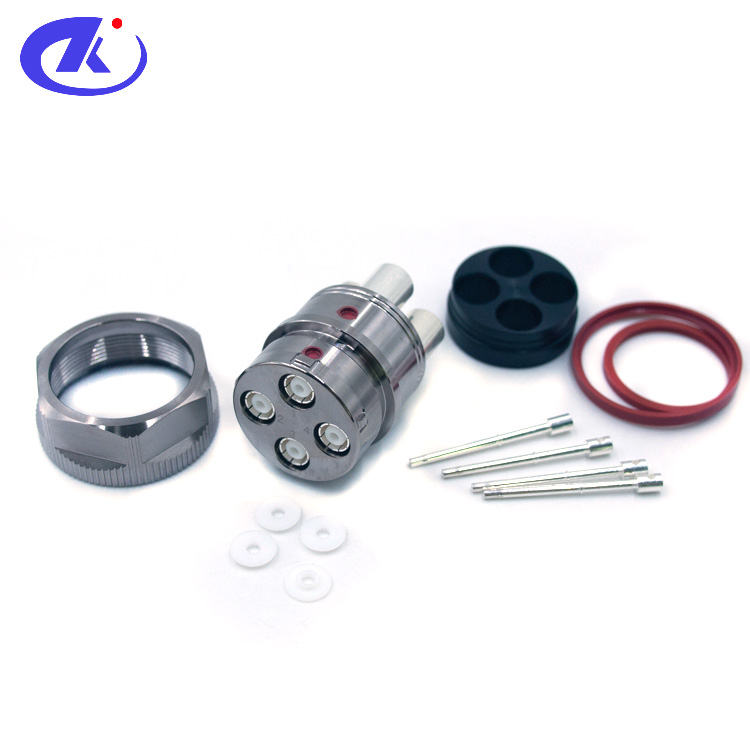

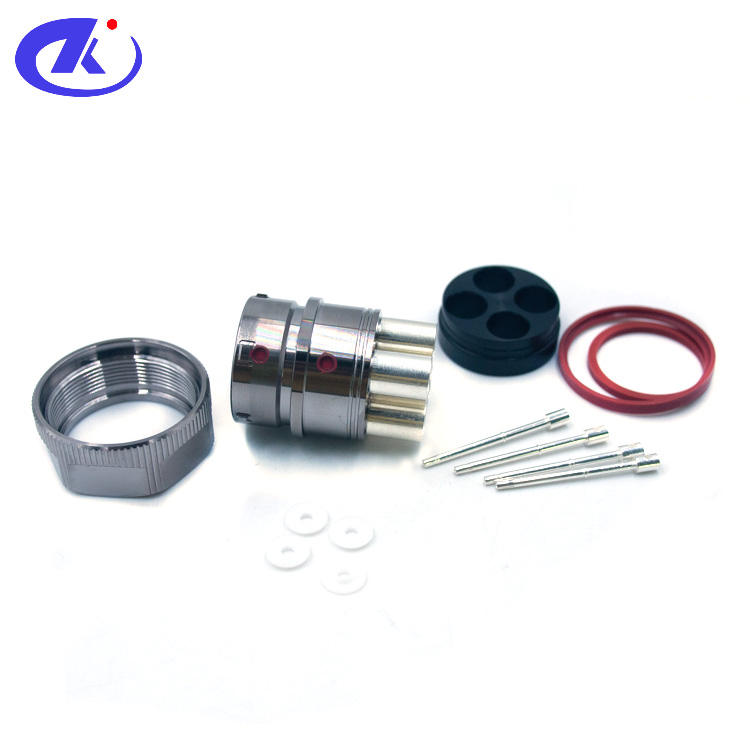

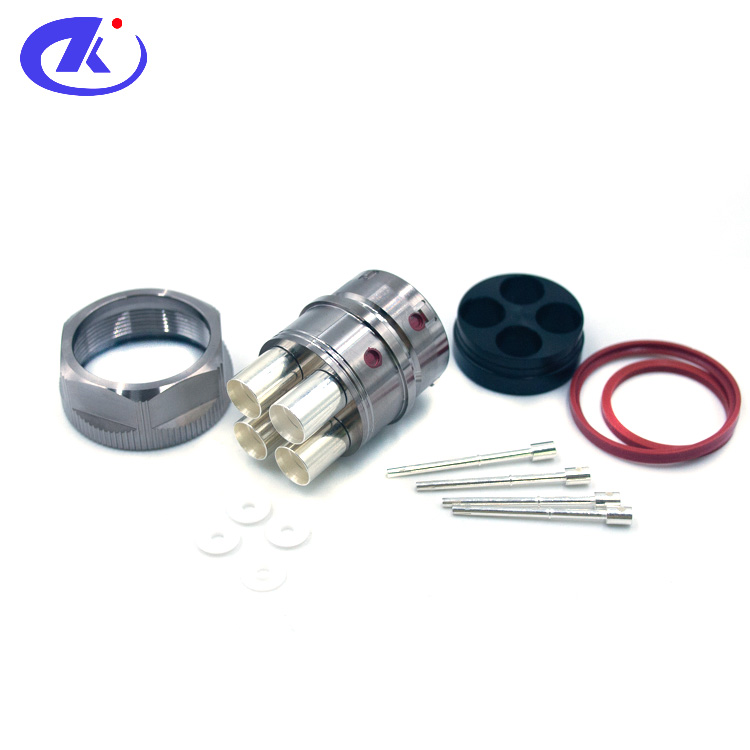

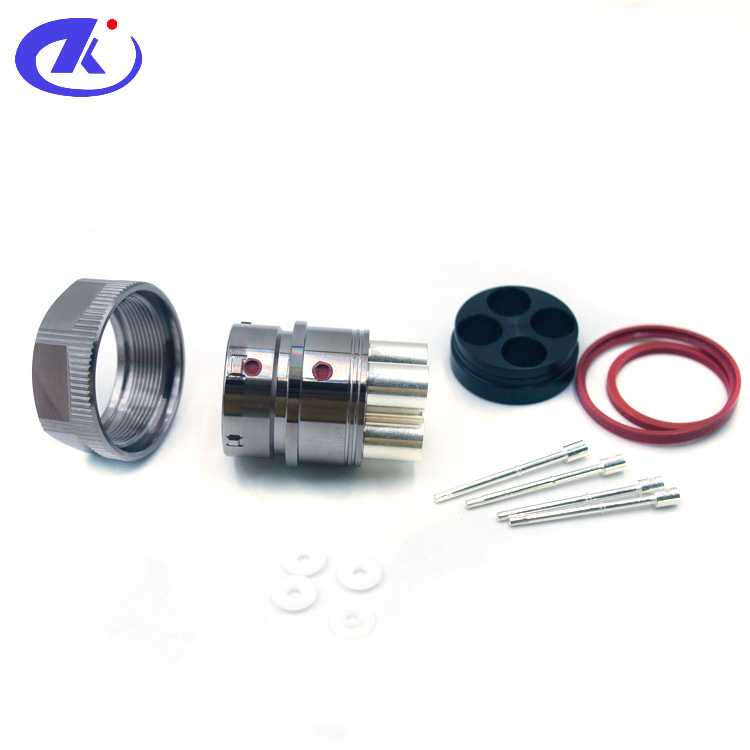

Cluster connector MQ4 plug female for 1/3''Superflex Cable (MQ4-K1/3S-1)

 Cluster connector MQ4 plug female for 1/3''Superflex Cable

(MQ4-K1/3S-1)

Interface

According to: IEC 63138-2

Electrical

1. Characteristic Impedance:50ohm

2. Frequency Range:DC-6GHz

3. VSWR:≤ 1.12(0-2.7)GHz    ≤ 1.18(2.7-4.2)GHz    ≤ 1.30(4.2-6.0)GHz

4. PIM:≤-158dBc

5. Insertion Loss:≤5.4dB

6. Dielectric Resistance:≥5000MΩ

7. Dielectric Withstanding Voltage:≥1000V AC

Mechanical

1.Durability :Mating cycles ≥100

2.Material and plating:

   Body Material: Brass  Plating: Ni-Sn Alloy

   Insulator Material: PTFE

   Center Conductor Material:Brass /BeCu   Plating: Silver

Environmental

1.Temperature Range:-55℃ to +125℃

2.RoHS Compliant: Pass

3.Water tightness:IP68(1m water depth/24hours)

4.Salt-fog test:≥720h(Neutral salt spray)

Note:

All products appearance,technical performance and electroplating can be customized according to your requirements.
