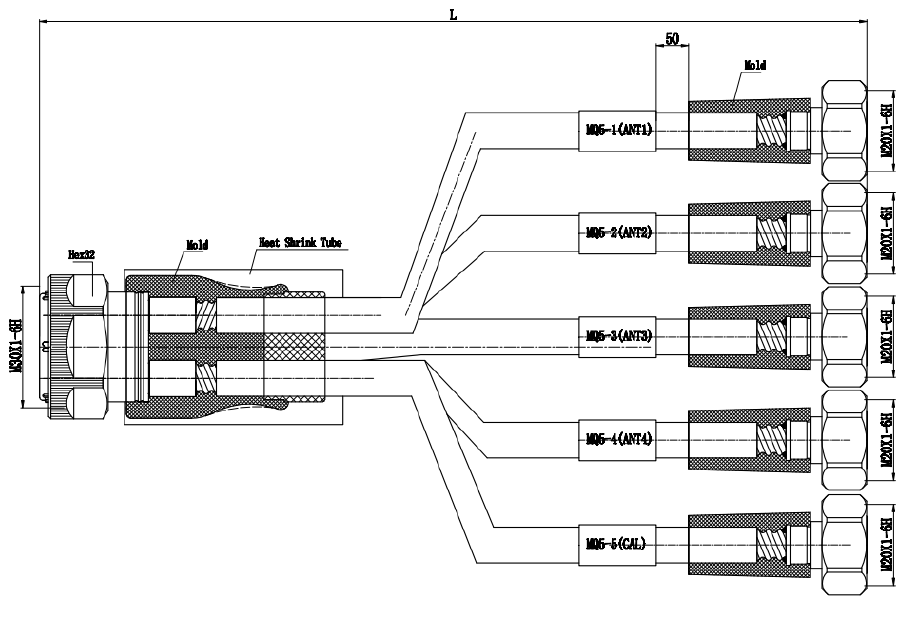

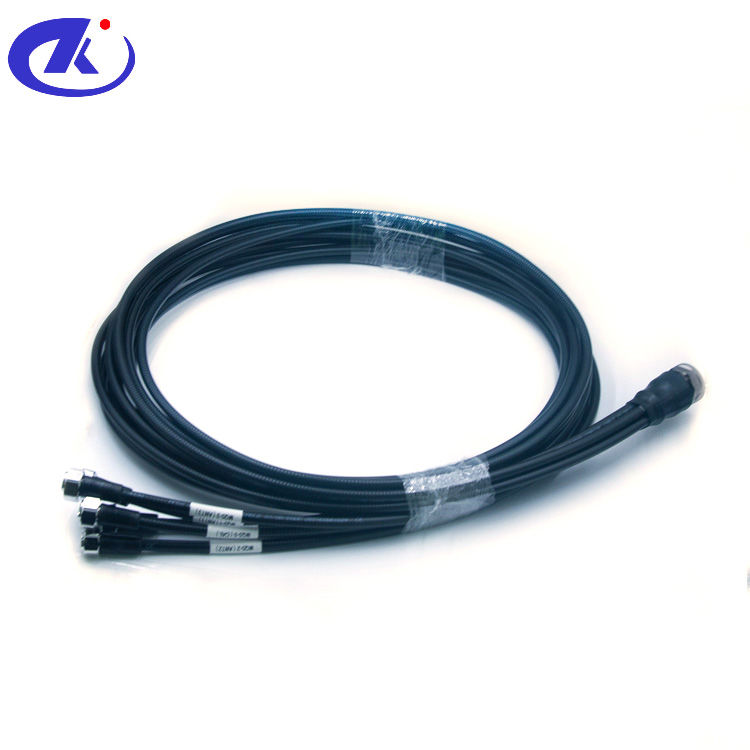

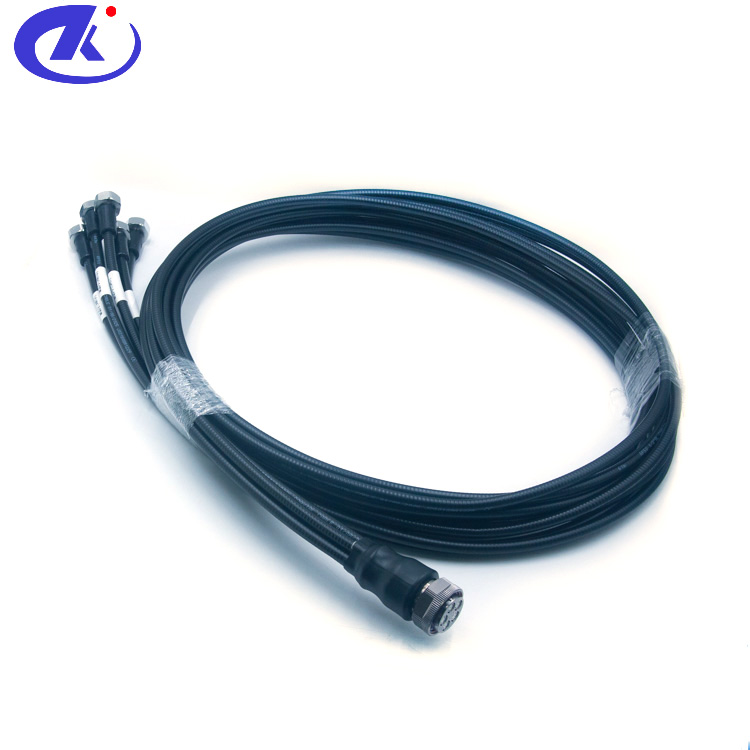

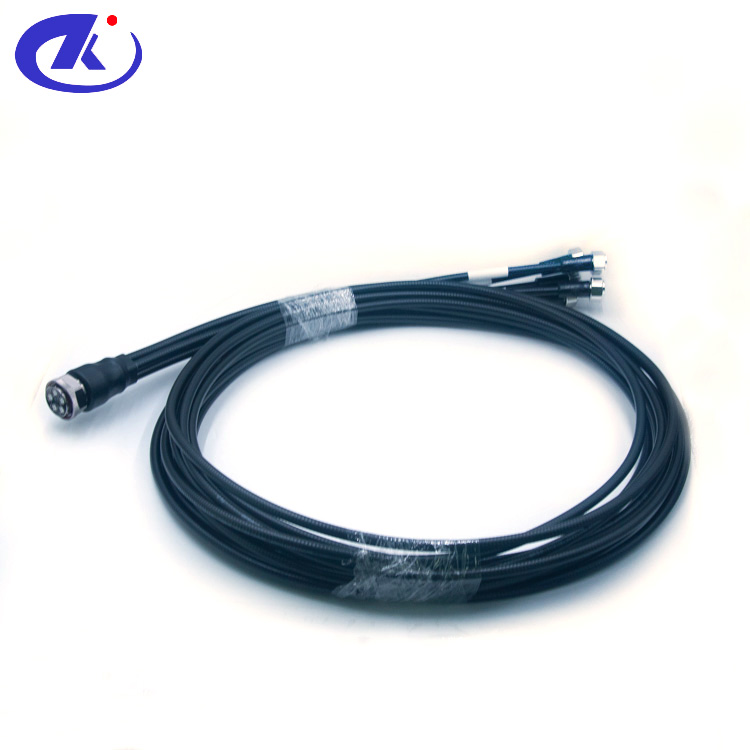

2025 New product 1/3" superflexjumper MQ5 male cluster connector to 4.3/10 male ,3m (MQ5-K1-3S-1-4.3-10-H-J1-3S-2A-3m)

2025 New product   1/3" superflexjumper MQ5 male  cluster connector to 4.3/10 male ,3m

(MQ5-K1-3S-1-4.3-10-H-J1-3S-2A-3m)

Interface

According to:IEC61169-54 / IEC63138-3

Electrical

1. Characteristic Impedance:50ohm

2. Frequency Range:DC-6GHz

3. VSWR:≤ 1.20(0-4.2)GHz      ≤ 1.25(4.2-5)GHz       ≤ 1.30(5-6)GHz

4. PIM:≤-155dBc(900MHz)

5. Insertion loss : 2.7GHz<0.234*L(m)+0.2;

                            3.3GHz<0.263*L(m)+0.2;

                            4.2GHz<0.302*L(m)+0.2;

                            5GHz<0.334*L(m)+0.2

6. Dielectric Resistance:≥5000MΩ

7. Proof Voltage:≥1500 AC 1 min

8. Power Rating:210W@6GHz

19.1/3”Superflexible cable(Black PE)

Mechanical

1.Durability :Mating cycles ≥500

2.Material and plating:

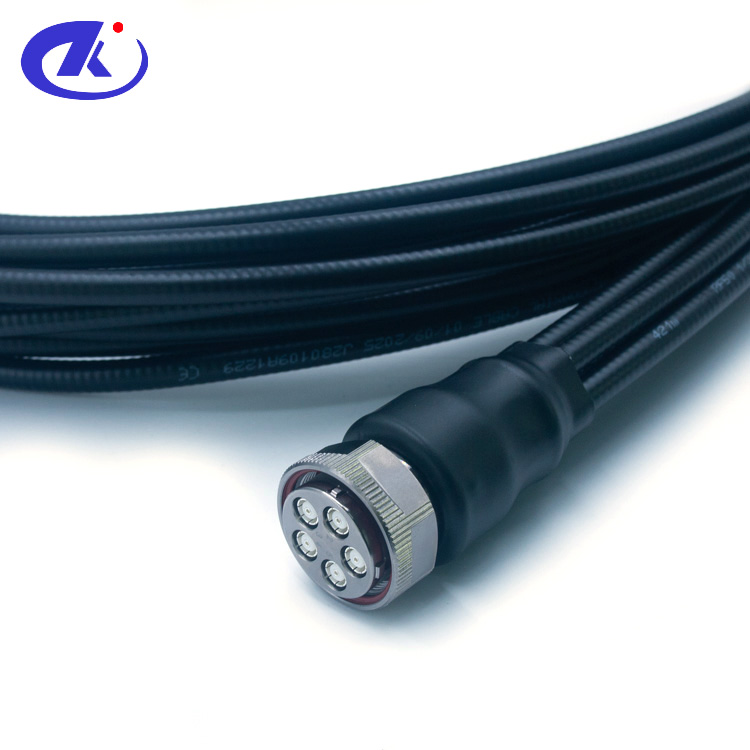

   MQ5 Connector:

   Outer Contact Material: Brass  Plating: Ni-Sn Alloy

   Inner Contact Materiall: Spring Copper  Plating:Ag

   Nut Material:Brass  Plating:Ni-Sn Alloy

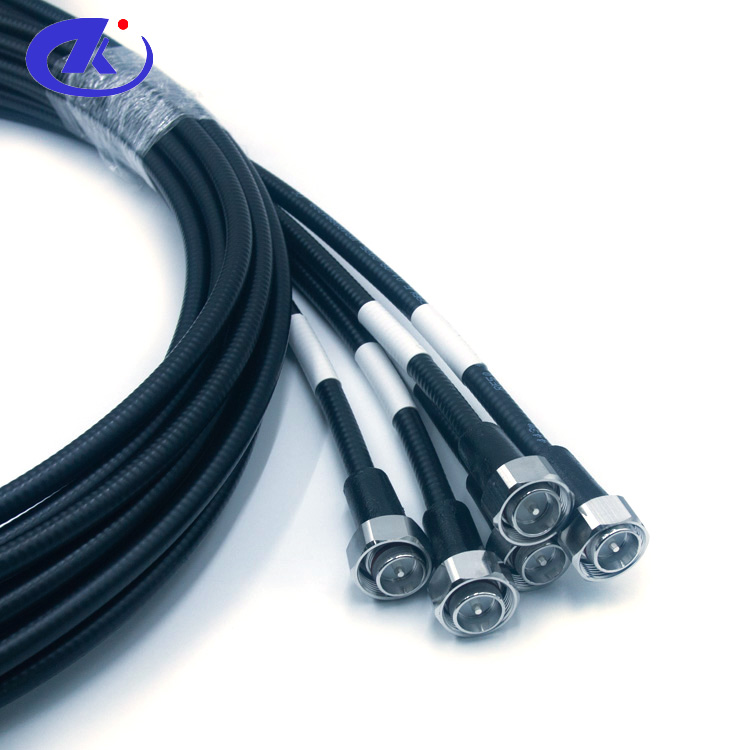

   4.3/10 Connector:

   Outer Contact Material: Brass  Plating: Tri-alloy

   Inner Contact Materiall: Brass  Plating:Ag

   Nut Material:Brass  Plating:Tri-alloy

Environmental

1.Temperature Range:-55℃ to +125℃

2.RoHS Compliant: Pass

3.Water tightness:IP68(1m water depth/24hours)

4.Salt-fog test:≥720h(Neutral salt spray)

Note:

All products appearance,technical performance and electroplating can be customized according to your requirements.
