SPECIFICATION

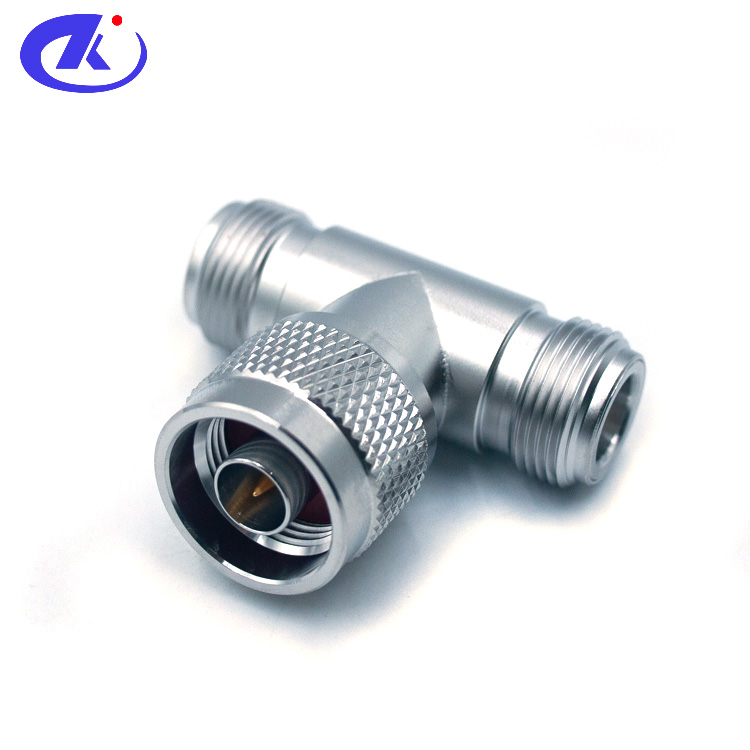

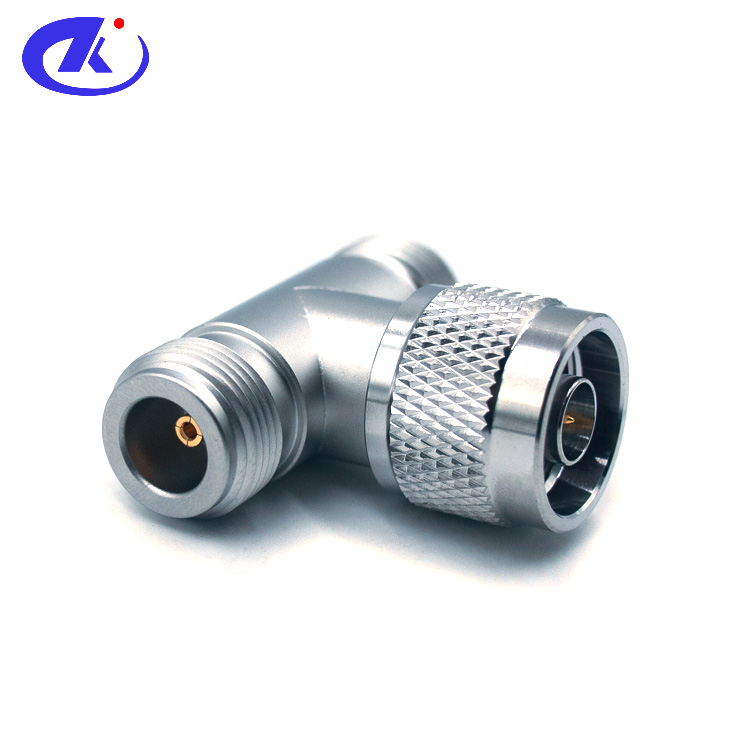

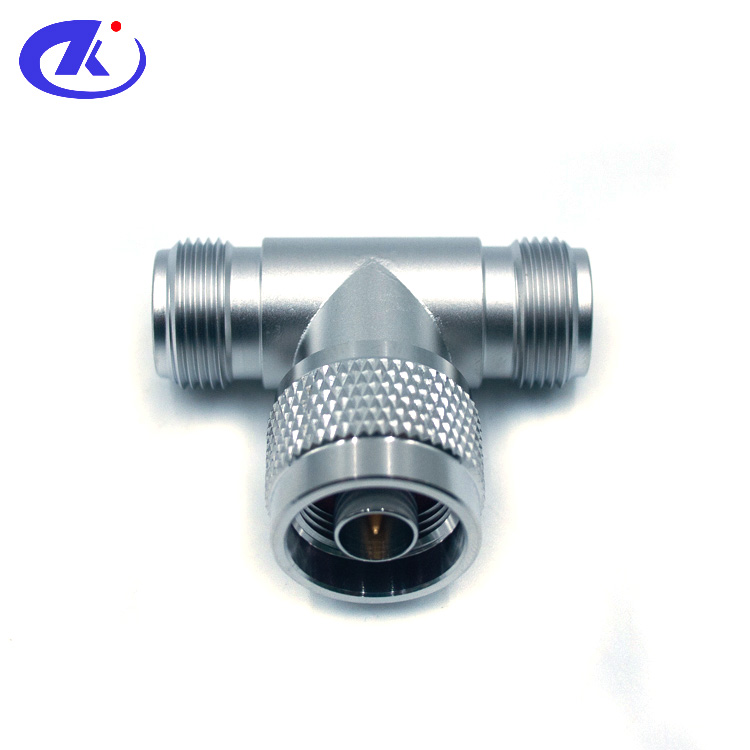

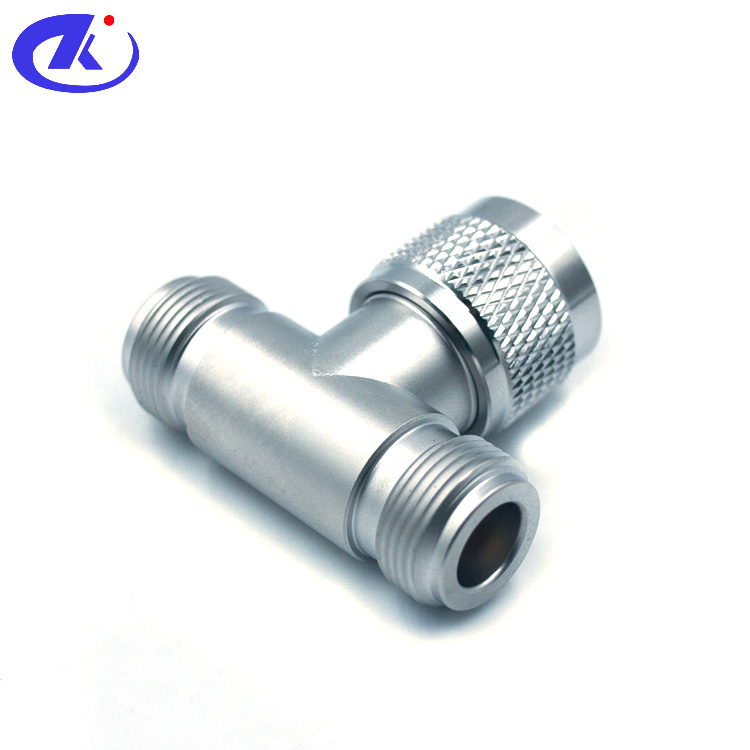

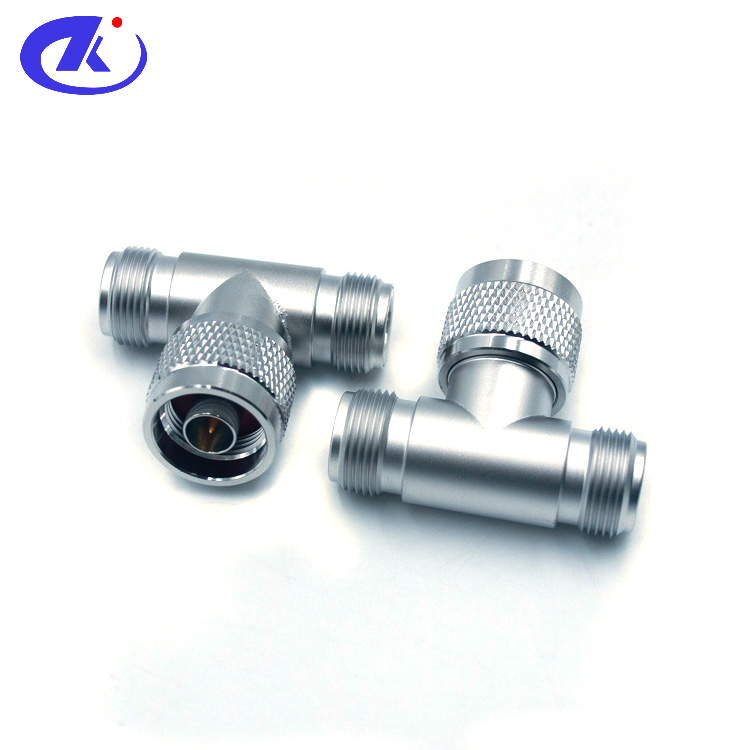

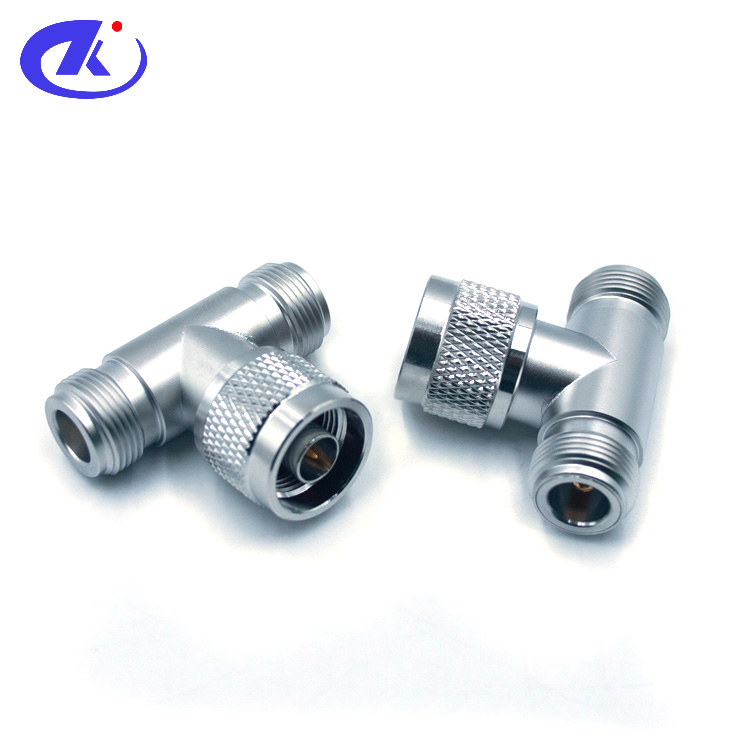

N T-type One male to Two Female Adaptor
(N-KJK)
| Interface According to：IEC 60169-16 | |
Electrical Performance Characteristic Impedance：50 ohm Dielectric Withstanding Voltage：≥2500V RMS,50Hz,at sea level Dielectric Resistance：≥5000MΩ Contact Resistance：Center Contact ≤1.0mΩ Outer Contact ≤1.0mΩ Durability：Mating cycles ≥500 | Material and plating Body：Brass, Tri-Alloy plating Contact PIN：Brass,Au plating Nut:Brass, Tri-Alloy plating
Environmental Temperature Range：-40℃～+85℃ Waterproof：P67 RoHS：Full RoHS-Compliance |
All products appearance, technical performance and electroplating can be customized according to customer requirements.
