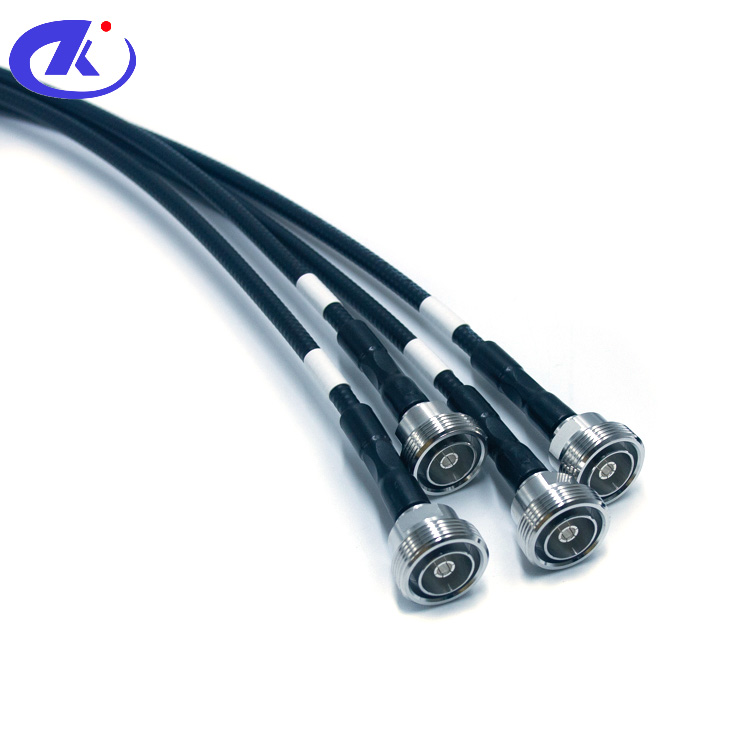

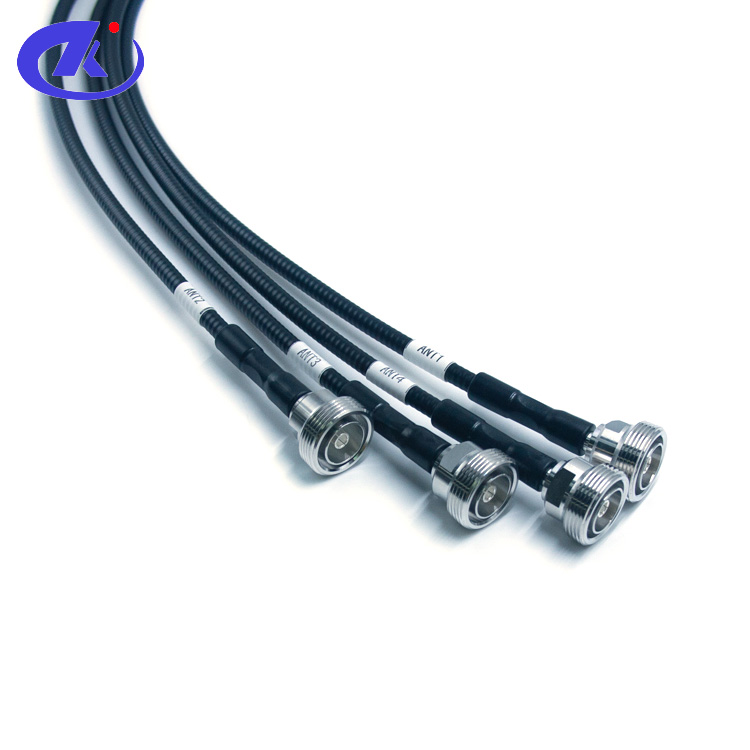

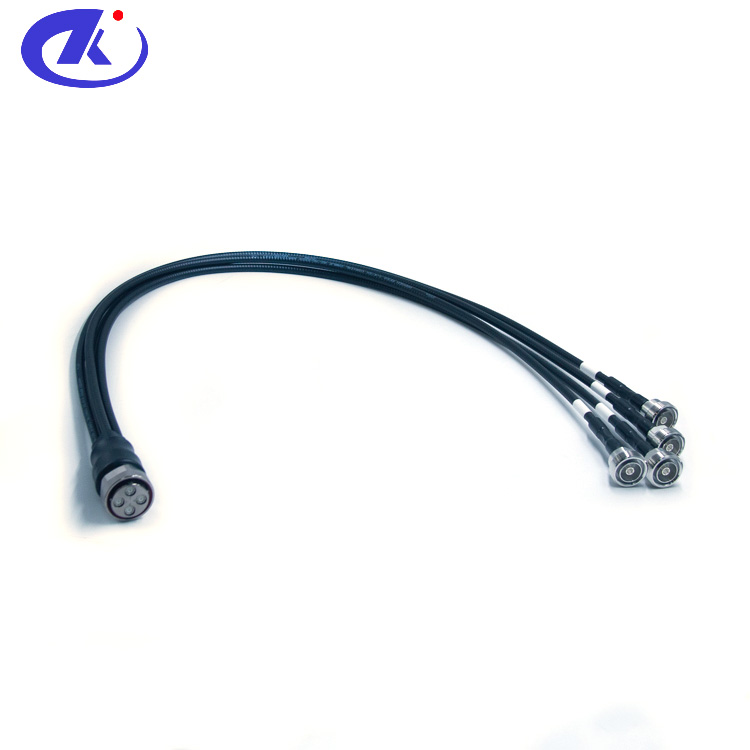

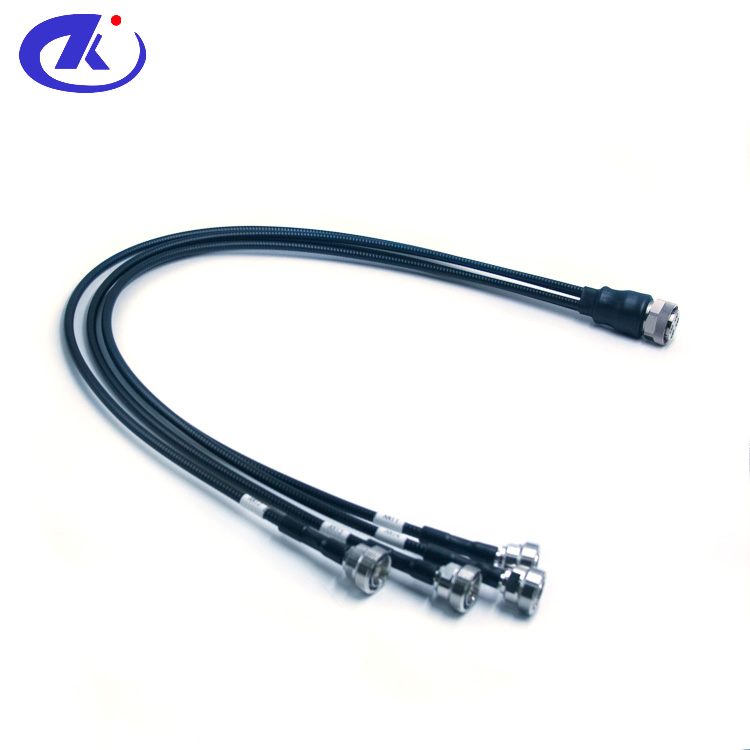

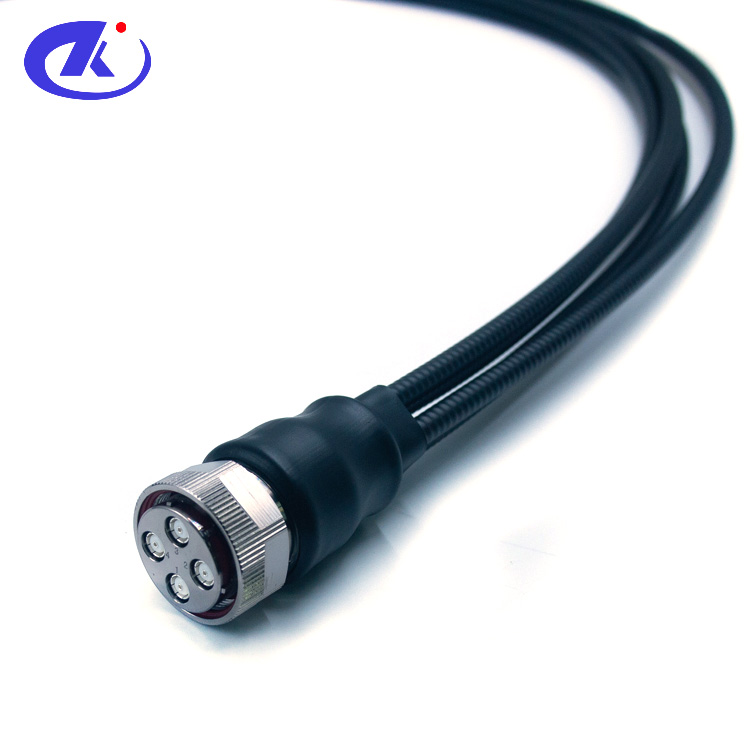

Low PIM jumper MQ4 male cluster connector to 7/16 female connector 1/4" superflex cable,1m (MQ4-K1-4S-3-7-16-H-K1-4S-2-1m)

Low PIM jumper MQ4 male cluster connector to 7/16 female connector 1/4" superflex cable,1m

(MQ4-K1-4S-3-7-16-H-K1-4S-2-1m)

Interface

According to:IEC60169-4 / IEC63138-2

Electrical

1. Characteristic Impedance:50ohm

2. Frequency Range:DC-6GHz

3. VSWR:≤ 1.15(0-2.7)GHz ;  ≤ 1.20(2.7-4.2)GHz  ; ≤ 1.35(4.2-6)GHz

4. PIM:≤-160dBc

5. Isolation:≥90dB

6. Dielectric Resistance:≥5000MΩ

7. Dielectric Withstanding Voltage:≥1000V AC

Mechanical

1.Durability :Mating cycles ≥500

2.Material and plating:

   Body Material: Brass  Plating: Ni-Sn Alloy

   Insulator Material: PTFE

   Center Conductor Material:Brass /BeCu   Plating: Silver

Environmental

1.Temperature Range:-55℃ to +125℃

2.RoHS Compliant: Pass

3.Water tightness:IP68(1m water depth/24hours)

4.Salt-fog test:≥720h(Neutral salt spray)

Note:

All products appearance,technical performance and electroplating can be customized according to your requirements.
