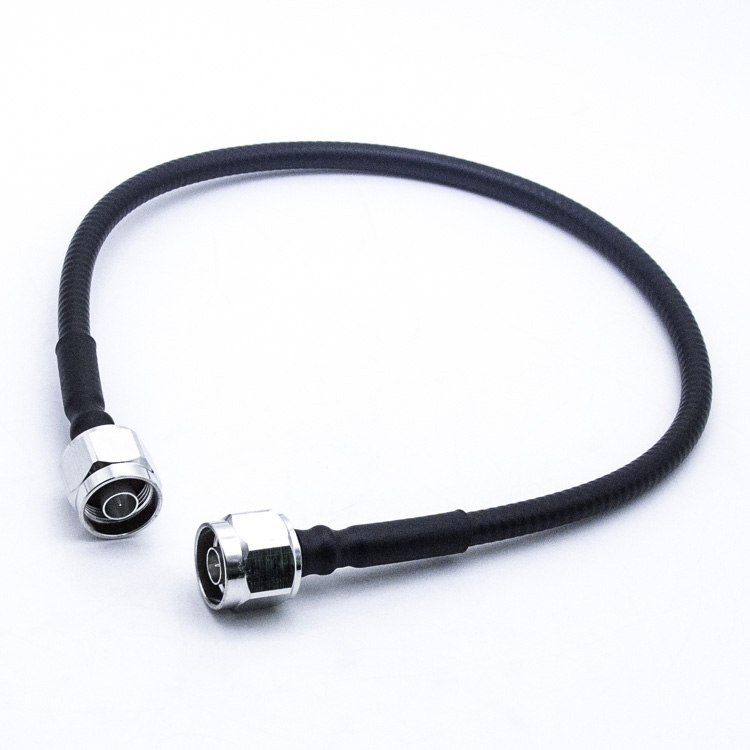

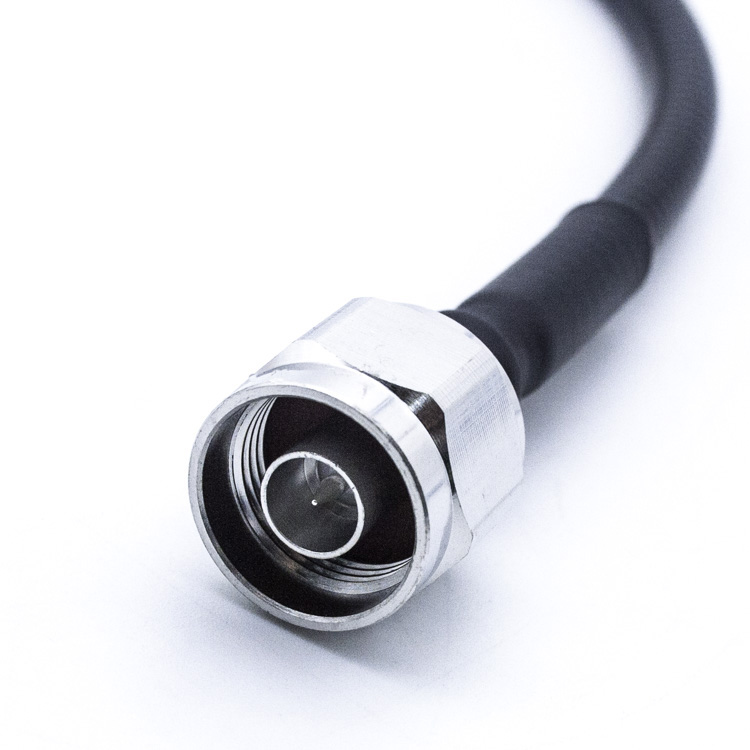

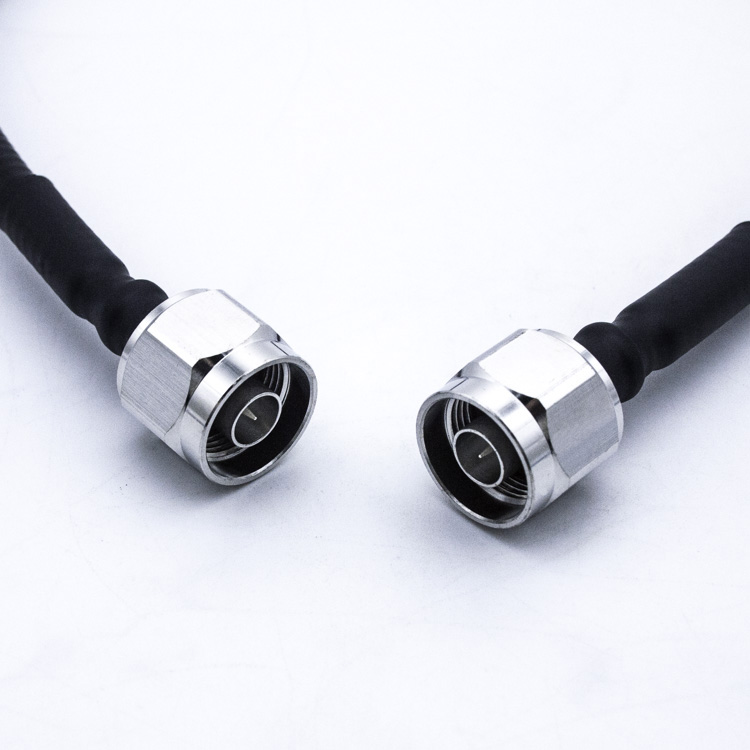

1/4" Superflex Jumper cable , N Male to N Male (N-H-J1/4S-3/N-H-J1/4S-3-L(m)

1/4" Superflex Jumper cable , N Male to N Male   (N-H-J1/4S-3/N-H-J1/4S-3-L(m)

SPECIFICATION



1/4" Superflex Jumper cable , N Male to N Male

(N-H-J1/4S-3/N-H-J1/4S-3-L(m)


Interface

According to:IEC 60169-16

Electrical Performance

Characteristic Impedance:50 ohm

Frequency Range:DC-3.6GHz

VSWR:≤1.15

PIM3:≤-155dBc

Dielectric Withstanding Voltage:≥2500V RMS,50Hz,at sea level

Dielectric Resistance:≥5000MΩ

Contact Resistance:Center Contact ≤1.0mΩ Outer Contact ≤1.0mΩ

Durability:Mating cycles ≥100

Material and plating

Body:Brass, Tri-Alloy plating

Insulator:PTFE, NATURAL

Contact PIN:Phosphor Bronze,Ag plating





Environmental

Temperature Range:-40℃~+85℃

Waterproof(1m water depth, 24hours):IP68

RoHS:Full RoHS-Compliance

All products appearance, technical performance and electroplating can be customized according to customer requirements.
