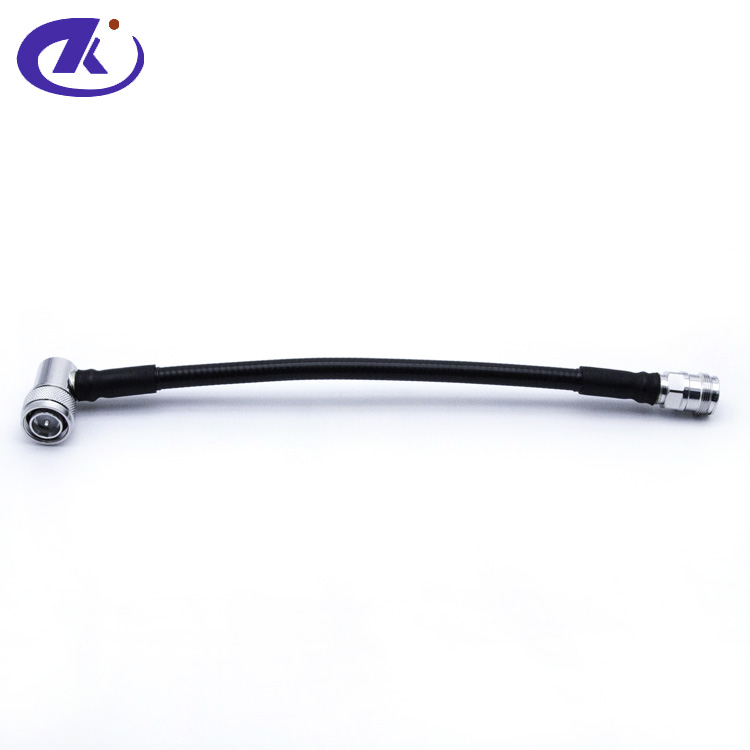

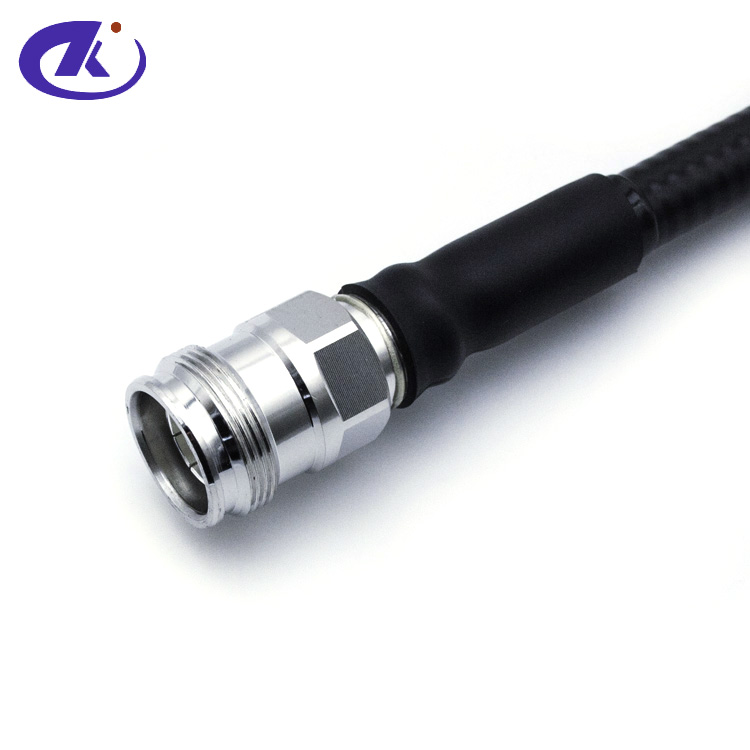

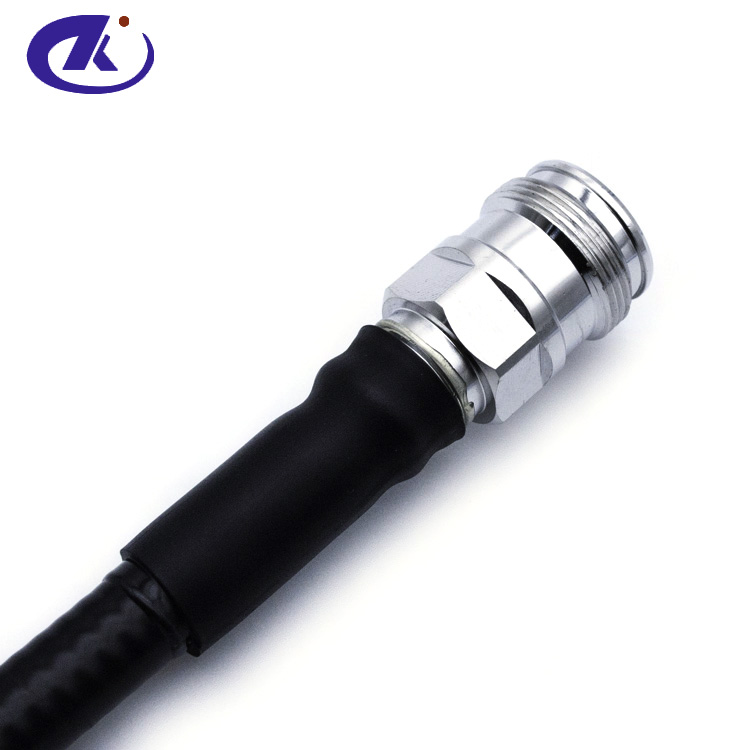

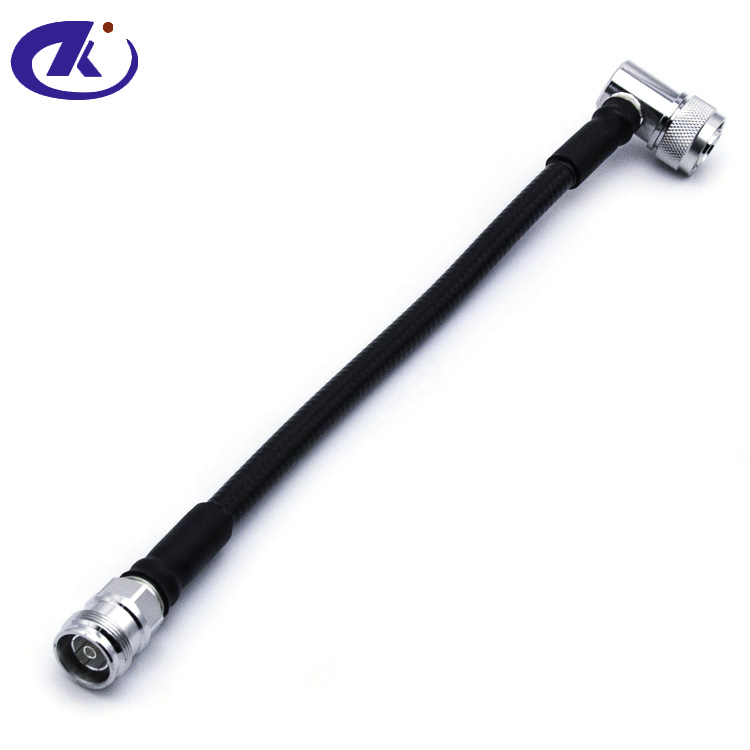

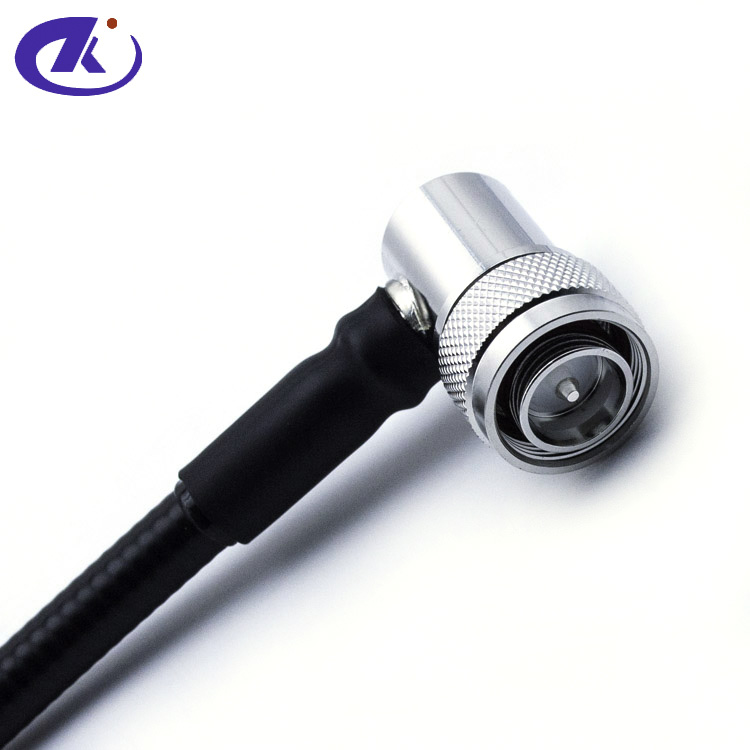

3/8" Superflex Jumper Cable, Handscrew 4.3/10 Male Right Angle to 4.3/10 female,L(m) (H4.3-10-H-JW3-8S/4.3-10-H-K3-8S-L(m) )

SPECIFICATION

3/8" Superflex Jumper Cable,Handscrew 4.3/10 Male Right Angle to 4.3/10 female,L(m)

(H4.3-10-H-JW3-8S/4.3-10-H-K3-8S-L(m) )

Interface

According to：IEC 61169-54

Electrical Performance

Characteristic Impedance：50 ohm

Frequency Range：DC-4GHz

VSWR：≤1.25(DC-4GHz),

PIM3：≤-160dBc

Dielectric Withstanding Voltage：≥2500V RMS,50Hz,at sea level

Dielectric Resistance：≥5000MΩ

Contact Resistance：Center Contact ≤1.0mΩ Outer Contact ≤1.0mΩ

Durability：Mating cycles ≥500

Material and plating

Body：Brass, Tri-Alloy plating

Insulator：PTFE, NATURAL

Contact PIN：Phosphor Bronze,Ag plating

Environmental

Temperature Range：-40℃～+85℃

Waterproof(1m water depth, 24hours)：IP68

RoHS：Full RoHS-Compliance

All products appearance, technical performance and electroplating can be customized according to customer requirements
