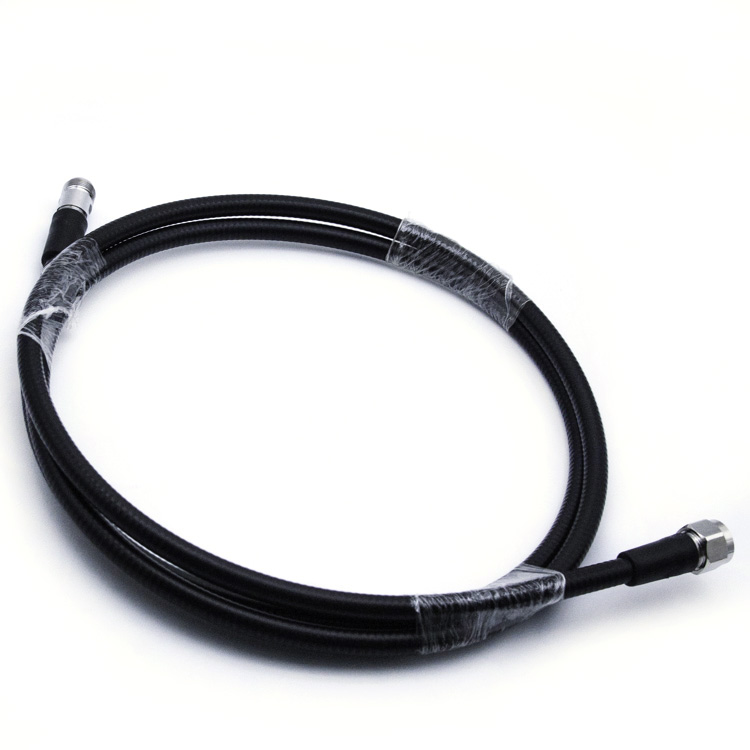

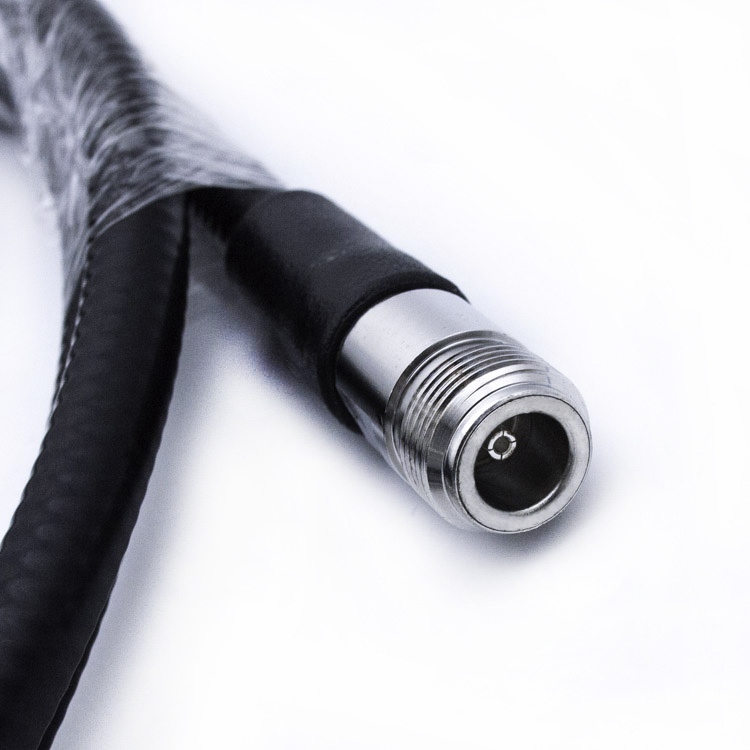

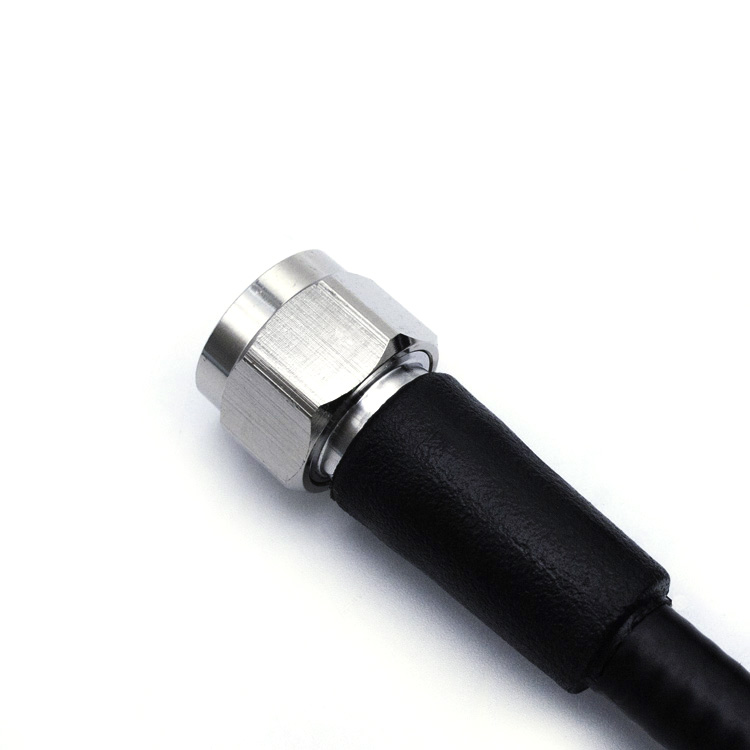

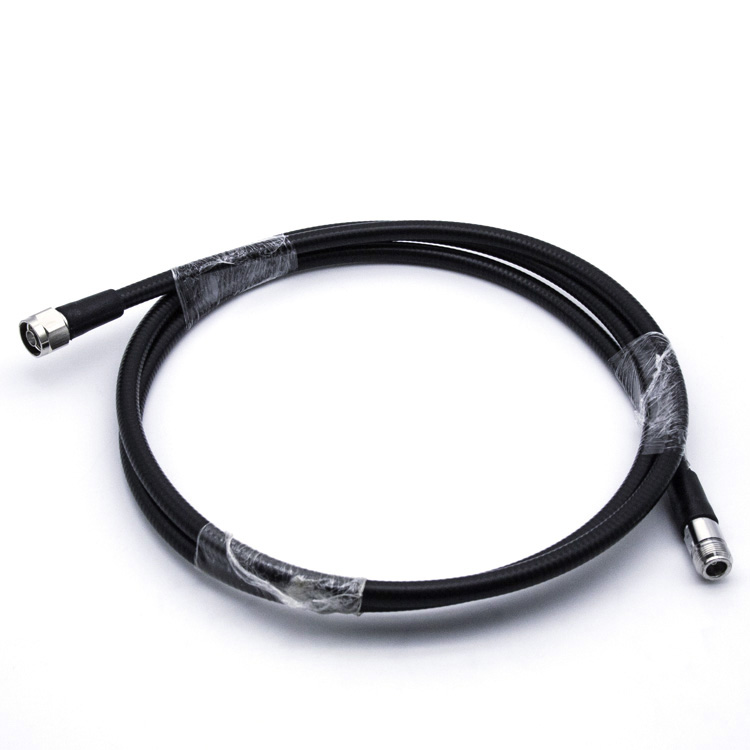

3/8" Superflex Jumper, N Male to N Female connector,L(m) ( N-H-J3/8S-4-N-H-K3/8S-L(m)

3/8" Superflex Jumper, N Male to N Female connector,L(m)  ( N-H-J3/8S-4-N-H-K3/8S-L(m)

SPECIFICATION



3/8" Superflex Jumper, N Male to N Female connector,L(m)

( N-H-J3/8S-4-N-H-K3/8S-L(m)


Interface

According to:IEC 60169-16

Electrical Performance

Characteristic Impedance:50 ohm

Frequency Range:DC-6GHz

VSWR:≤1.15,

PIM3:≤-155dBc

Dielectric Withstanding Voltage:≥2500V RMS,50Hz,at sea level

Dielectric Resistance:≥5000MΩ

Contact Resistance:Center Contact ≤1.0mΩ  Outer Contact ≤1.0mΩ

Durability:Mating cycles ≥100

Material and plating

Body:Brass, Tri-Alloy plating

Insulator:PTFE, NATURAL

Contact PIN:Phosphor Bronze,Ag plating





Environmental

Temperature Range:-40℃~+85℃

Waterproof(1m water depth, 24hours):IP68

RoHS:Full RoHS-Compliance

All products appearance, technical performance and electroplating can be customized according to customer requirements.
