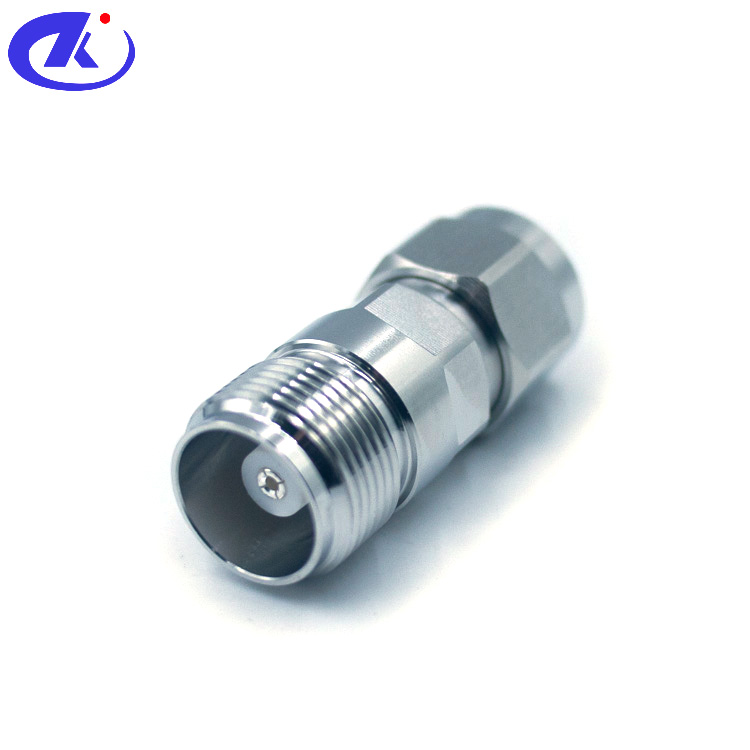

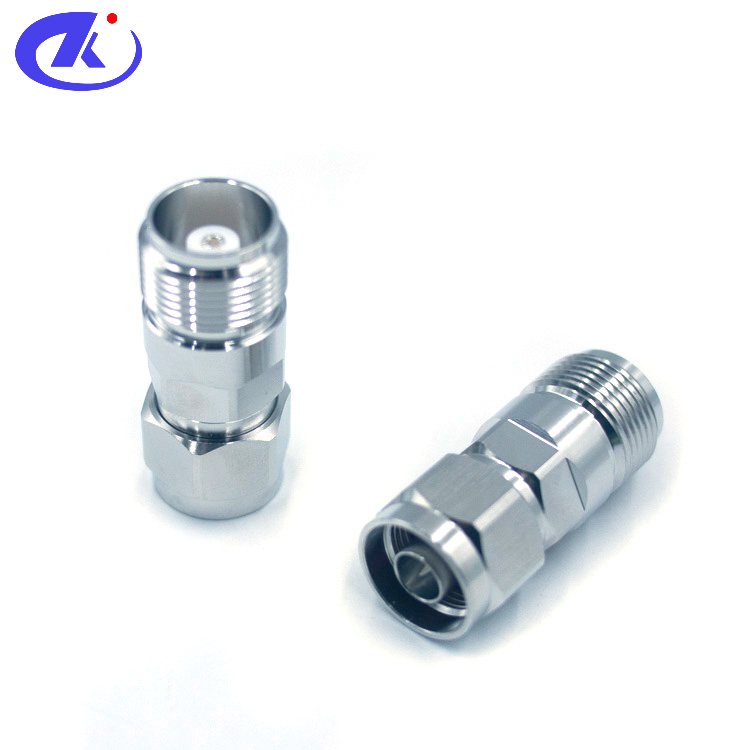

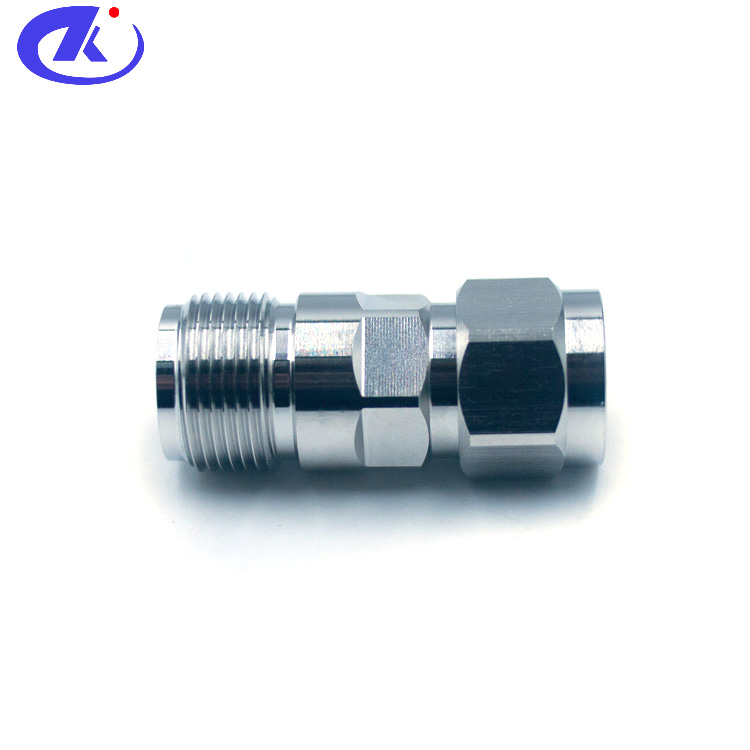

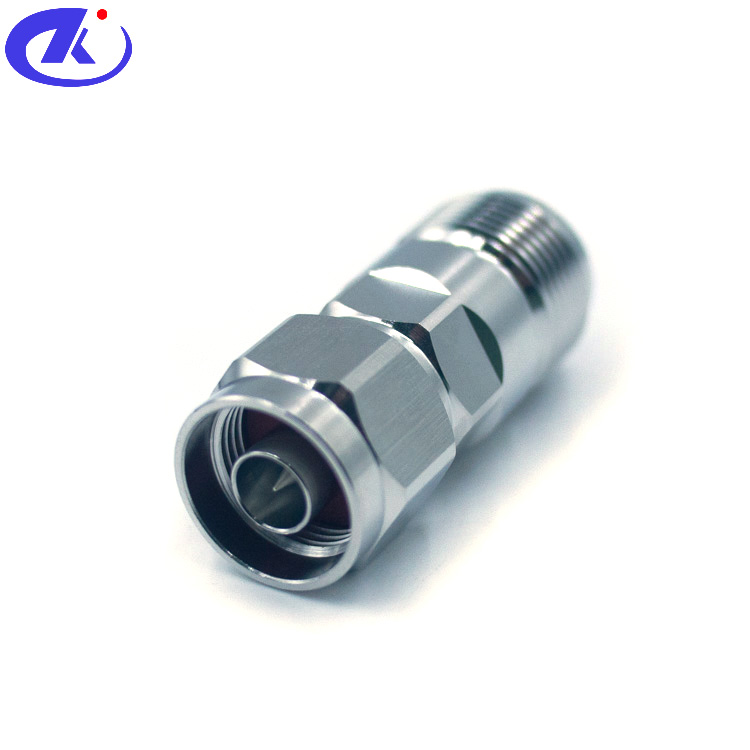

Adaptor HN female to N male (HN/N-KJ)

SPECIFICATION

Adaptor HN female to N male

(HN/N-KJ

Interface

According to：IEC 60169-16

Electrical Performance

Characteristic Impedance：50 ohm

Frequency Range：DC-1GHz

VSWR：≤1.10

Dielectric Withstanding Voltage：≥2500V RMS,50Hz,at sea level

Dielectric Resistance：≥5000MΩ

Contact Resistance：Center Contact ≤1.0mΩ Outer Contact ≤1.0mΩ

Durability：Mating cycles ≥500

Material and plating

Body：Brass, Tri-Alloy plating

Insulator：PTFE, NATURAL

Contact PIN：Phosphor Bronze,Ag plating

Environmental

Temperature Range：-40℃～+85℃

Waterproof：P67

RoHS：Full RoHS-Compliance

All products appearance, technical performance and electroplating can be customized according to customer requirements.
