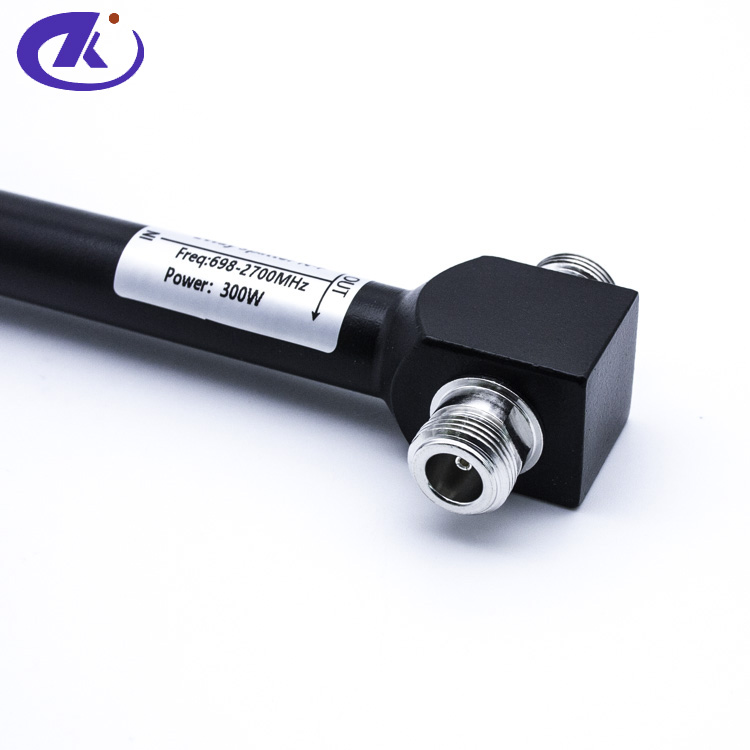

698-2700MHz N female Splitter two way 300W

Type

2 – Way

3 – Way

4 – Way

Insertion Loss

≤ 3.3 dB

≤ 5.3 dB

≤ 6.5dB

VSWR

≤ 1.25

≤ 1.25

≤ 1.3

3rd PIM(dBc, @2*43dBm)

≤-150dBc/≤-155dBc/≤-160dBc

Power(W)

200W/300W/500W

Impedance(Ω)

50

RF Connector:

N-F/4.3-10 F/DIN-F/

Environmental Specifications

Operating Temperature(℃)

-35° C to +75° C

Relative humidity

≤95%

Applications

Indoor/Outdoor

Waterproof Grade

IP65

Dimensions

RF Connector:

NF

4.3-10F

DIN-F

2 Way Power Splitter Weight(g)

340

360

440

3 Way Power Splitter Weight(g)

420

450

540

4 Way Power Splitter Weight(g)

440

470

590

colour

 black
