ADAPTOR

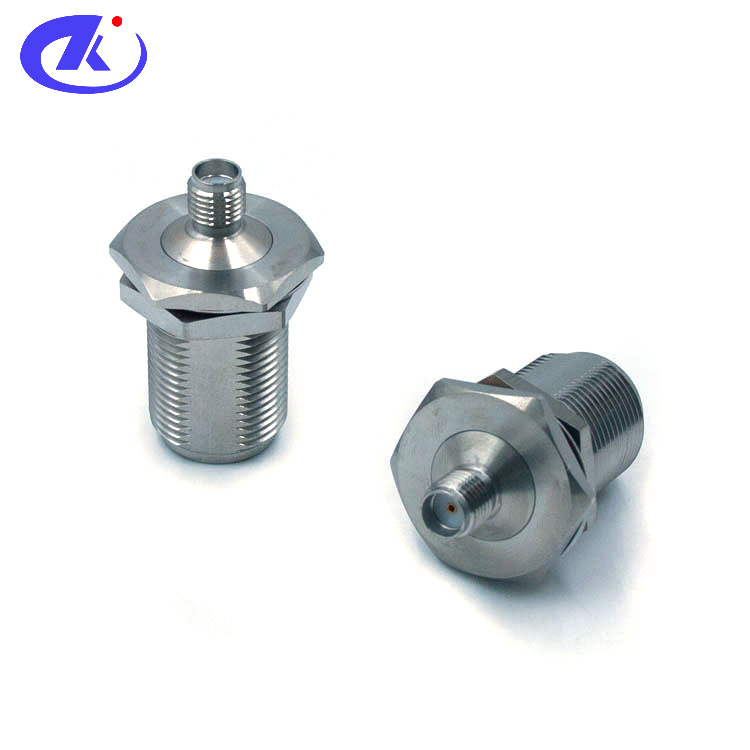

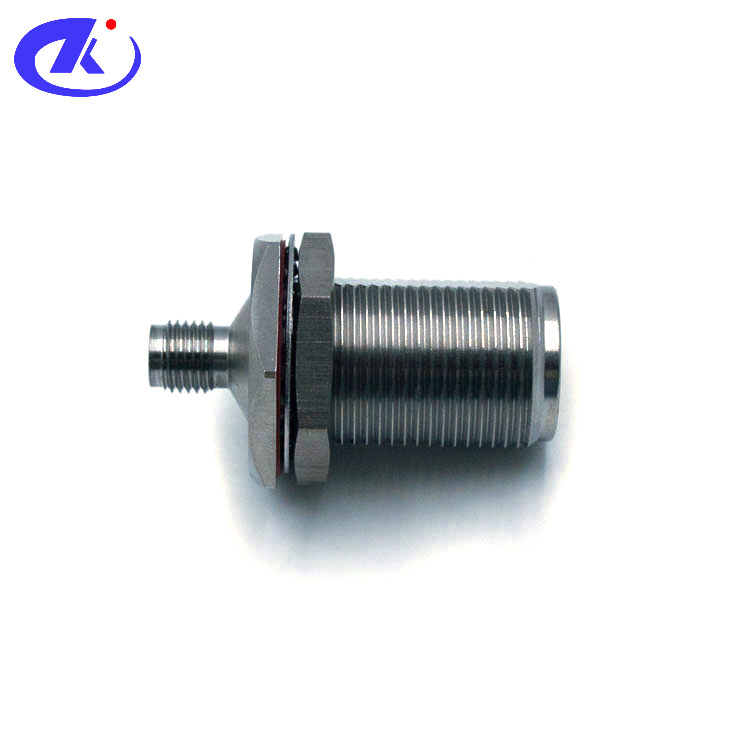

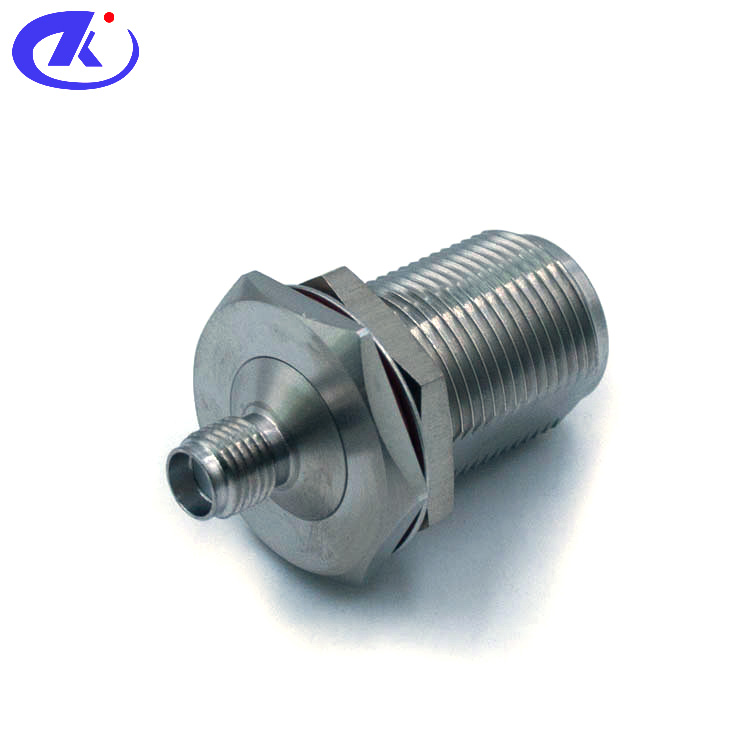

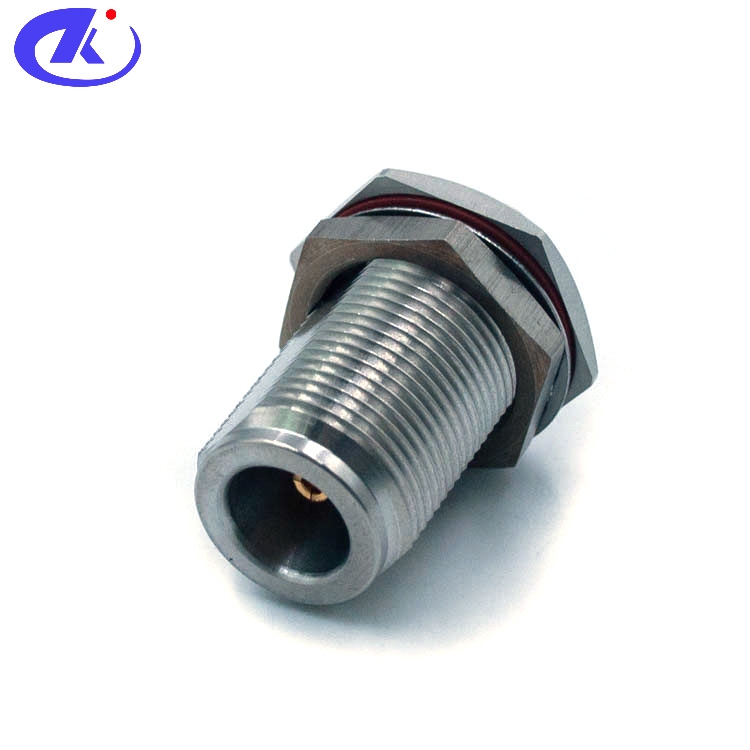

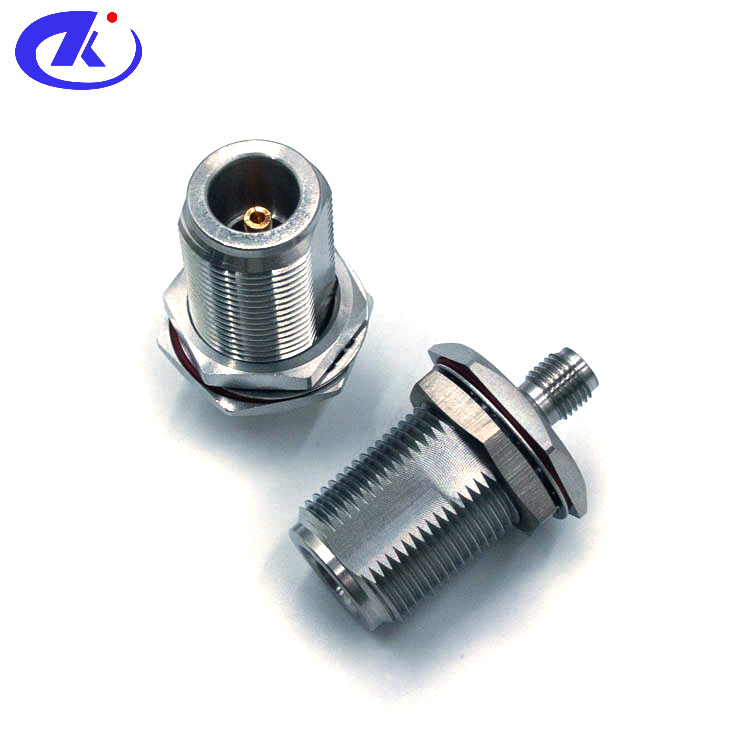

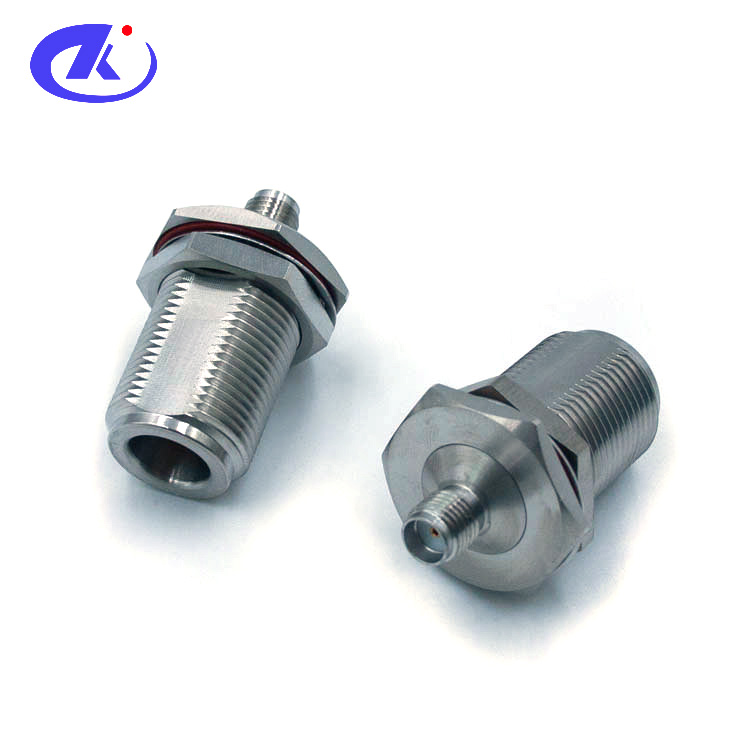

0-18GHz N female to SMA female Bulkhead Adaptor Stainless steel (N/SMA-KKY-6)

SPECIFICATION

0-18GHz N female to SMA female Bulkhead Adaptor Stainless steel

(N/SMA-KKY-6)

Interface

According to：IEC 60169-16/IEC 60169-15

Electrical Performance

Characteristic Impedance：50 ohm

Frequency Range：DC-18GHz

VSWR：≤1.25

Dielectric Withstanding Voltage：≥1000V RMS,50Hz,at sea level

Dielectric Resistance：≥5000MΩ

Contact Resistance：Center Contact ≤1.0mΩ Outer Contact ≤1.0mΩ

Durability：Mating cycles ≥500

Material and plating

Body：Stainless steel

Insulator：PTFE, NATURAL

Contact PIN：Beryllium,Au plating

Environmental

Temperature Range：-40℃～+85℃

RoHS：Full RoHS-Compliance

All products appearance, technical performance and electroplating can be customized according to customer requirements.
