SPECIFICATION

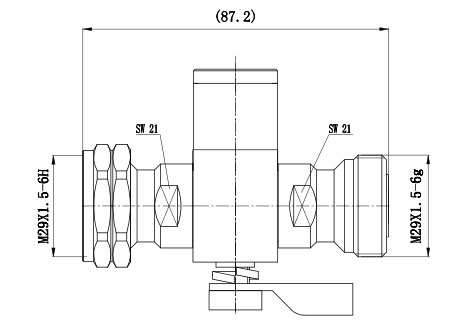

Lightning arrester DIN male to female quarter wave type
(4.3-10-KKPT)
| Interface According to：IEC 60169-4 | |
Electrical Performance Characteristic Impedance：50 ohm Frequency Range：DC-3GHz VSWR：≤1.2 PIM3：≤-160dBc Dielectric Withstanding Voltage：≥2500V RMS,50Hz,at sea level Dielectric Resistance：≥5000MΩ Contact Resistance：Center Contact ≤1.0mΩ Outer Contact ≤1.0mΩ Peak Discharge Current(KA)：25 Initial Discharge Voltage(V)：150 Durability：Mating cycles ≥500 | Material and plating Body：Brass, Tri-alloy plating Insulator：PTFE, NATURAL Contact PIN：Spring Bronze ,Ag plating
Environmental Temperature Range：-40℃～+85℃ Waterproof(1m water depth, 24hours)：IP68 RoHS：Full RoHS-Compliance |
All products appearance, technical performance and electroplating can be customized according to customer requirements.
