DIN(7/16,L29)

7-16M-1-2-3

7-16M-1-2-3

SPECIFICATION

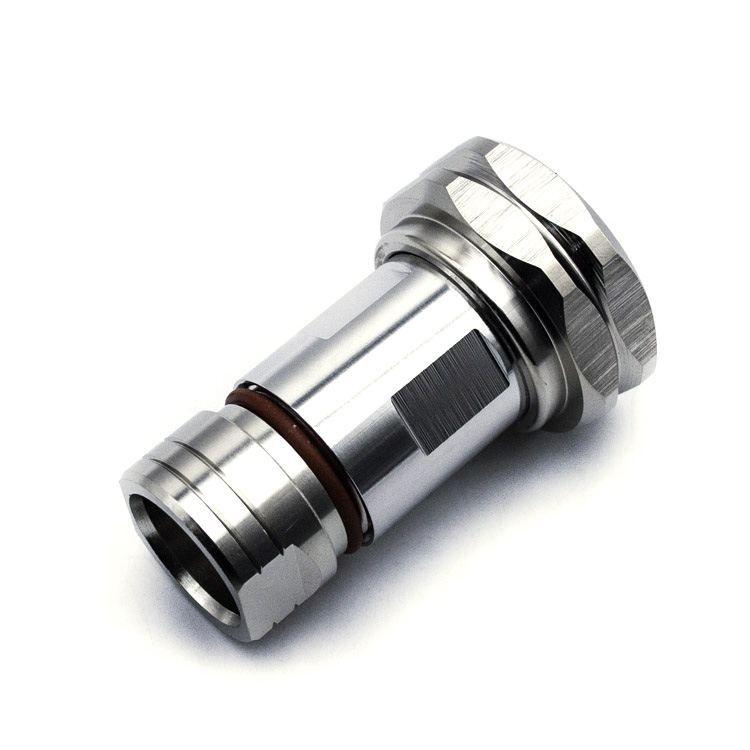

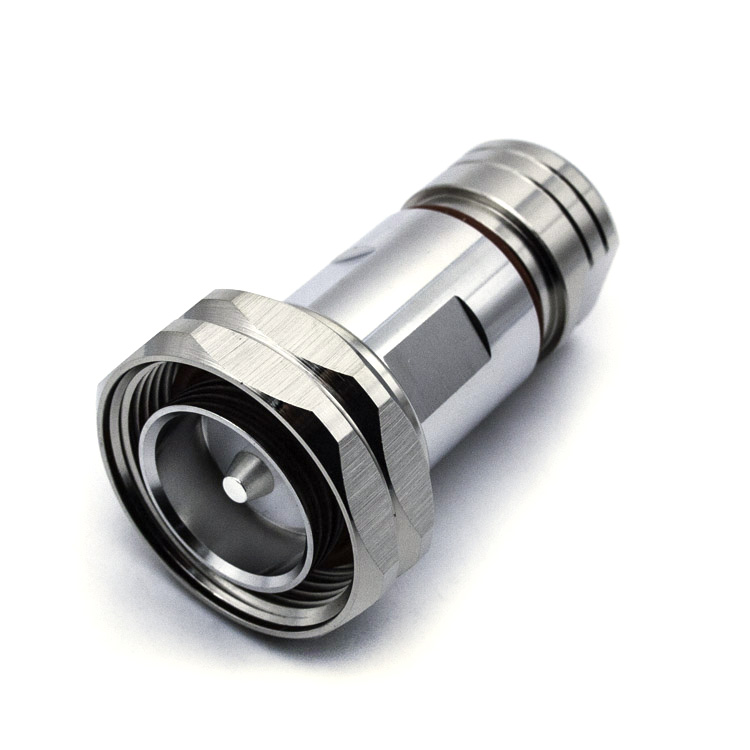

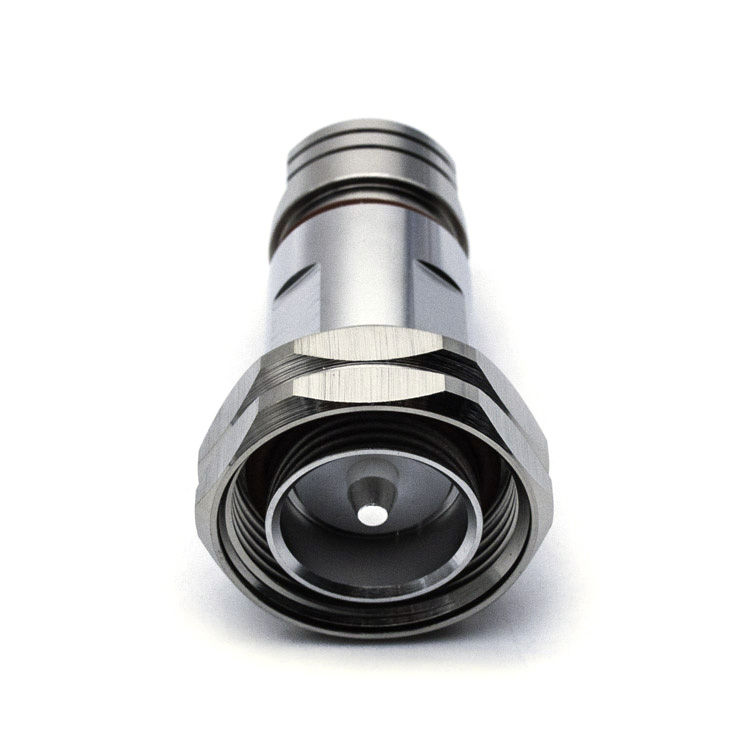

7/16 DIN Male Straight Connector Clamp for 1/2” Feeder Cable(7/16M-1/2)


Interface

According to :IEC 60169-4

Electrical Performance

Characteristic Impedance:50 ohm

Frequency Range:DC-6GHz

VSWR:1.12 (DC-3GHz),

PIM3:-160dBc

Dielectric Withstanding Voltage:4000V RMS,50Hz,at sea level

Dielectric Resistance:10000MΩ

Contact Resistance:Center Contact 0.4mΩ Outer Contact 0.2mΩ

Durability:Mating cycles 500

Material and plating

Body:Brass, Tri-Alloy plating

Insulator:PTFE, NATURAL

Contact PIN:Phosphor Bronze,Ag plating





Environmental

Temperature Range:-40℃+85℃

Watertightness(1m water depth, 24hours):IP68

RoHS:Full RoHS-Compliance

All products appearance, technical performance and electroplating can be customized according to customer requirements.
