SPECIFICATION

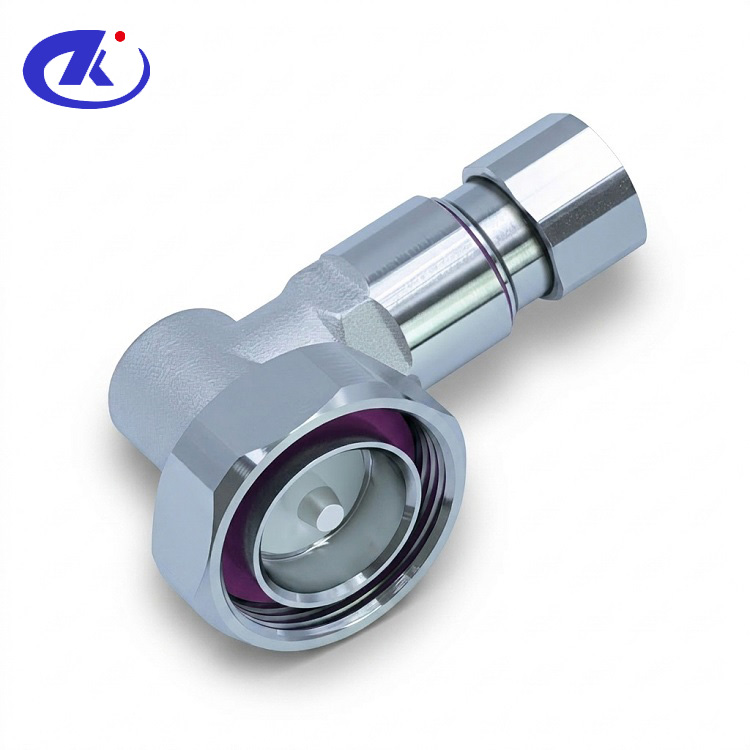

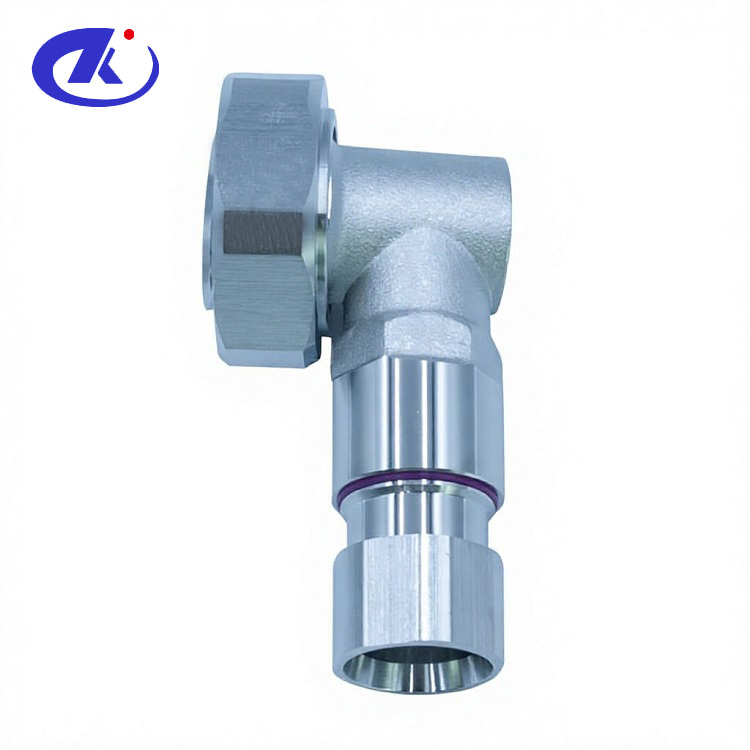

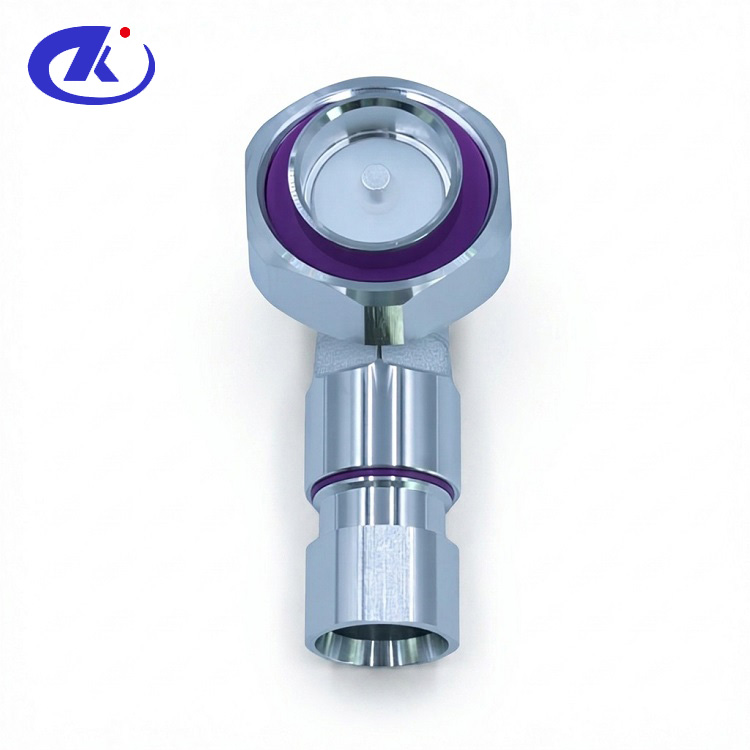

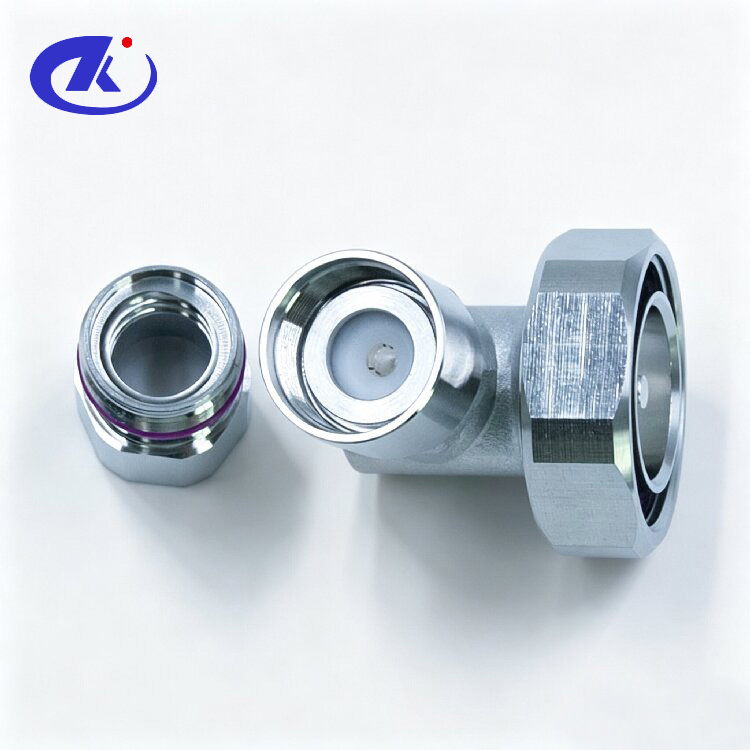

DIN 7/16 R/A Male Straight Clamp Type Connector for 1/2 SF Cable
(7/16-JW1/2S-19)
| Interface According to：IEC 60169-4 | |
Electrical Performance Characteristic Impedance：50 ohm Frequency Range：DC-5GHz VSWR：≤1.25 PIM3：≤-155dBc Dielectric Withstanding Voltage：≥2000V RMS,50Hz,at sea level Dielectric Resistance：≥10000MΩ Contact Resistance：Center Contact ≤0.4mΩ Outer Contact ≤0.2mΩ Durability：Mating cycles ≥500 | Material and plating Body：Brass, Tri-Alloy plating Insulator：PTFE, NATURAL Contact PIN：Brass,Ag plating
Environmental Temperature Range：-40℃～+85℃ Watertightness(1m water depth, 24hours)：IP67 RoHS：Full RoHS-Compliance |
All products appearance, technical performance and electroplating can be customized according to customer requirements.
