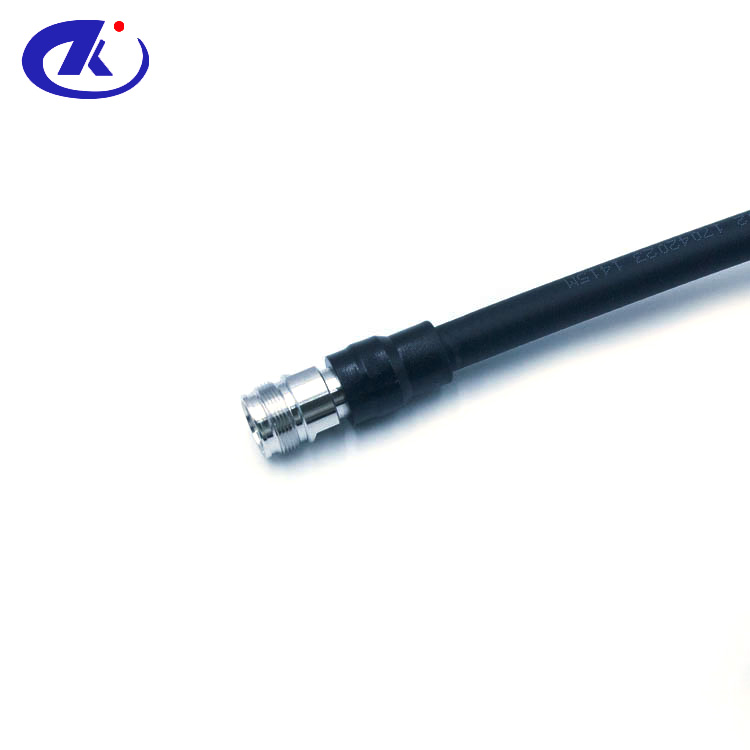

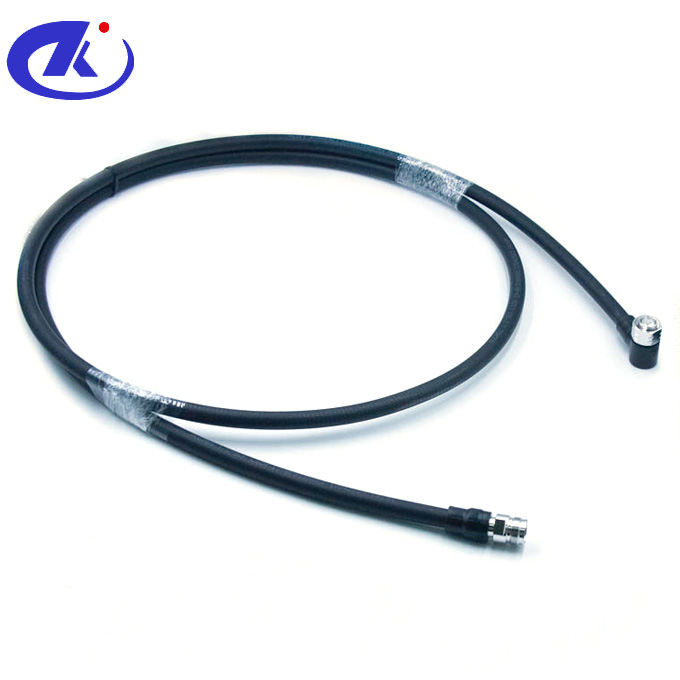

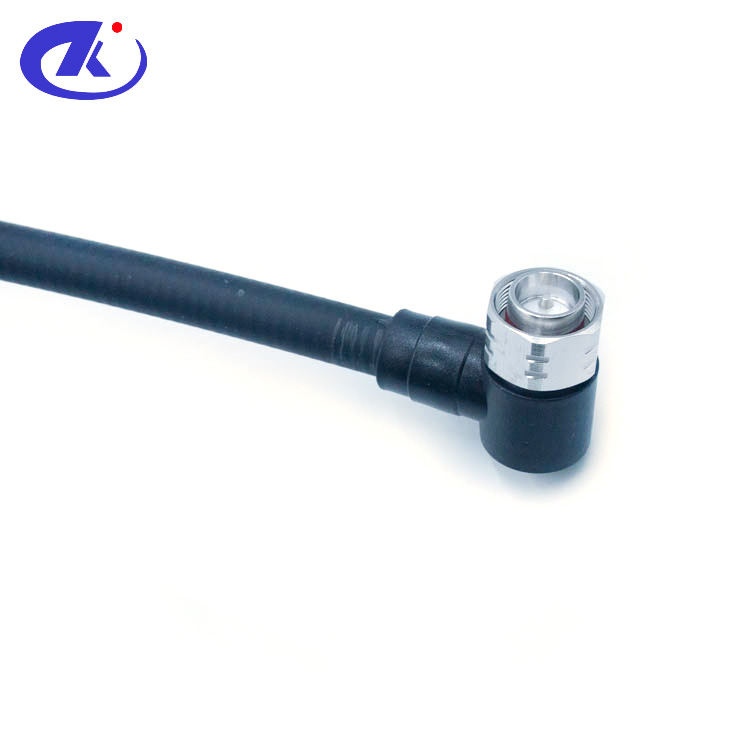

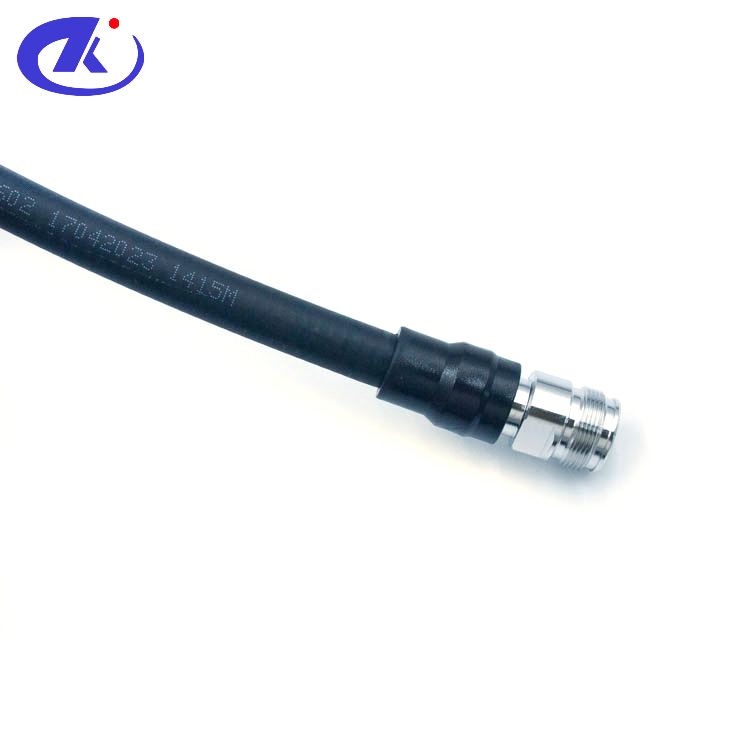

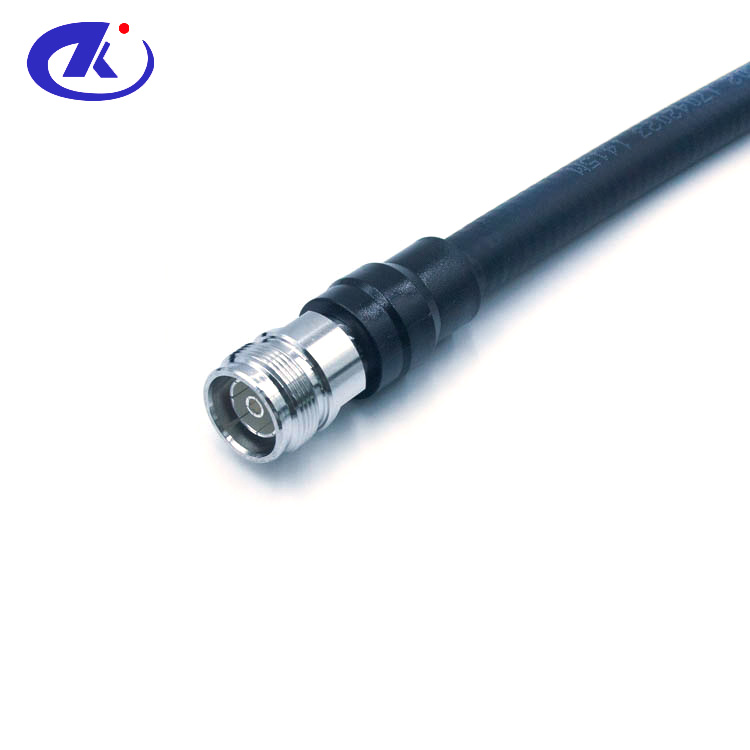

1/2" Superflex Jumper, 4.3/10 Male Right Angle to 4.3/10 Female connector,L(m) (4.3-10-H-JW1-2S-3-4.3-10-H-K1-2S--Lm)

SPECIFICATION

1/2" Superflex Jumper, 4.3/10 Male Right Angle to 4.3/10 Female connector,L(m)

(4.3-10-H-JW1-2S-3-4.3-10-H-K1-2S--Lm)

Interface

According to：IEC61169-54

Electrical Performance

Characteristic Impedance：50 ohm

Frequency Range：DC-6GHz

VSWR：≤1.15,

PIM3：≤-160dBc

Dielectric Withstanding Voltage：≥2500V RMS,50Hz,at sea level

Dielectric Resistance：≥5000MΩ

Contact Resistance：Center Contact ≤1.0mΩ Outer Contact ≤1.0mΩ

Durability：Mating cycles ≥100

Material and plating

Body：Brass, Tri-Alloy plating

Insulator：PTFE, NATURAL

Contact PIN：Phosphor Bronze,Ag plating

Environmental

Temperature Range：-40℃～+85℃

Waterproof(1m water depth, 24hours)：IP68

RoHS：Full RoHS-Compliance

All products appearance, technical performance and electroplating can be customized according to customer requirements.
