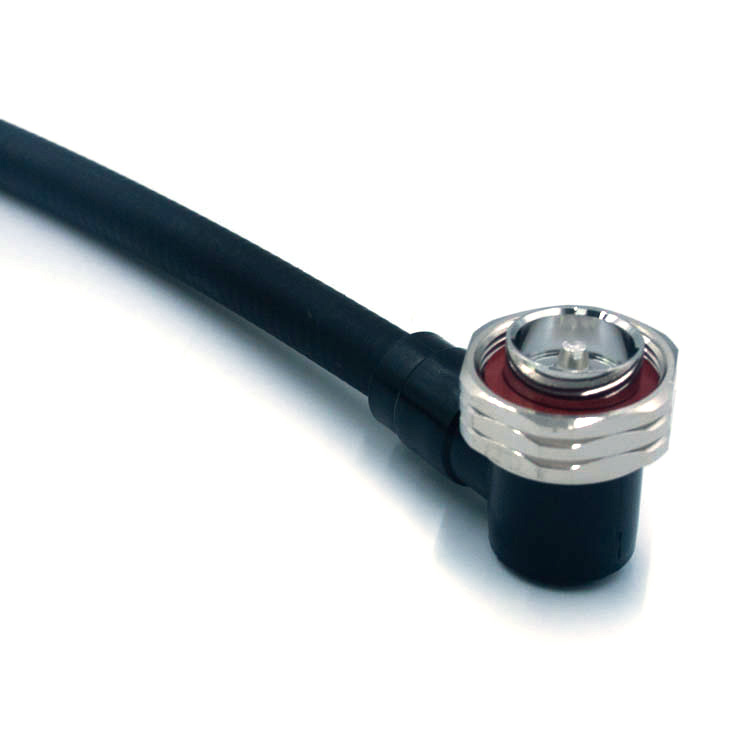

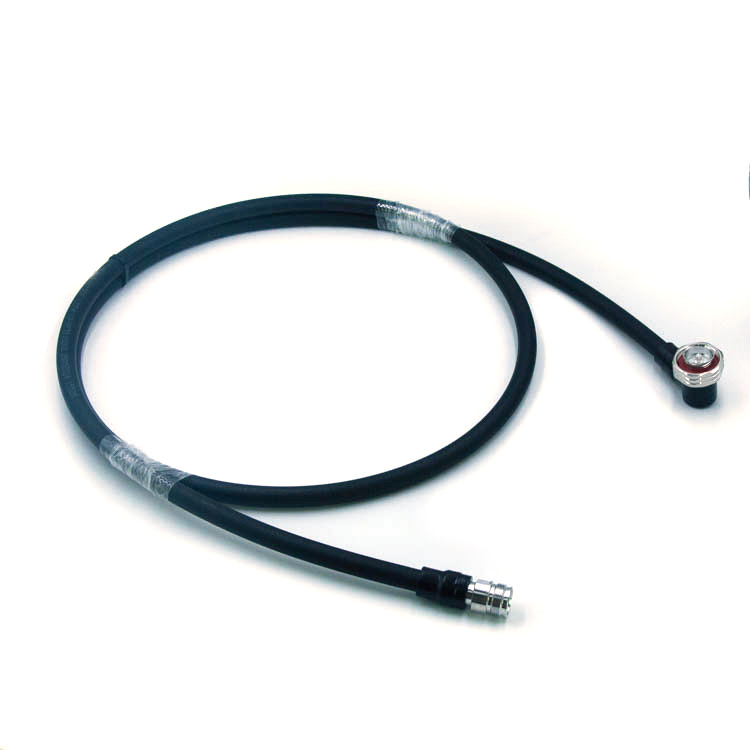

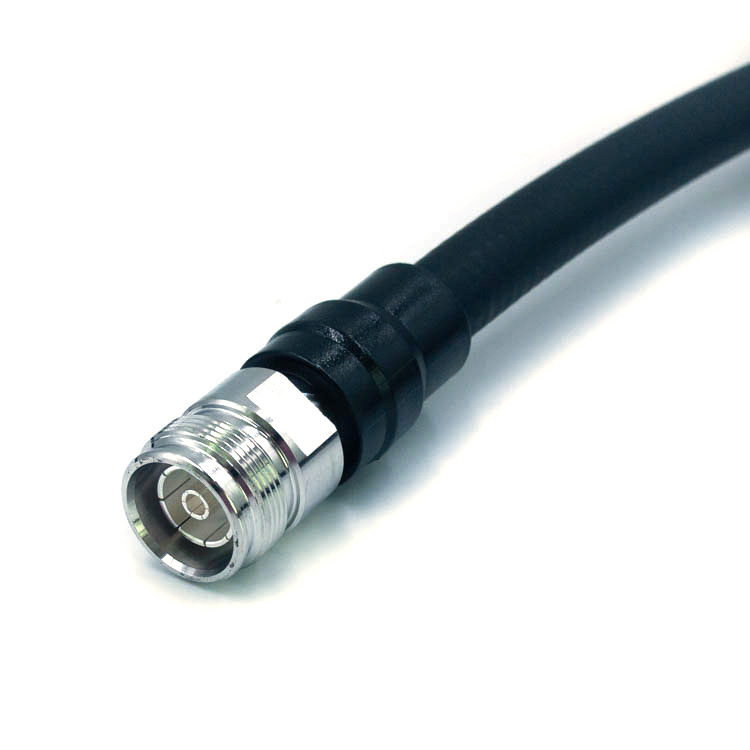

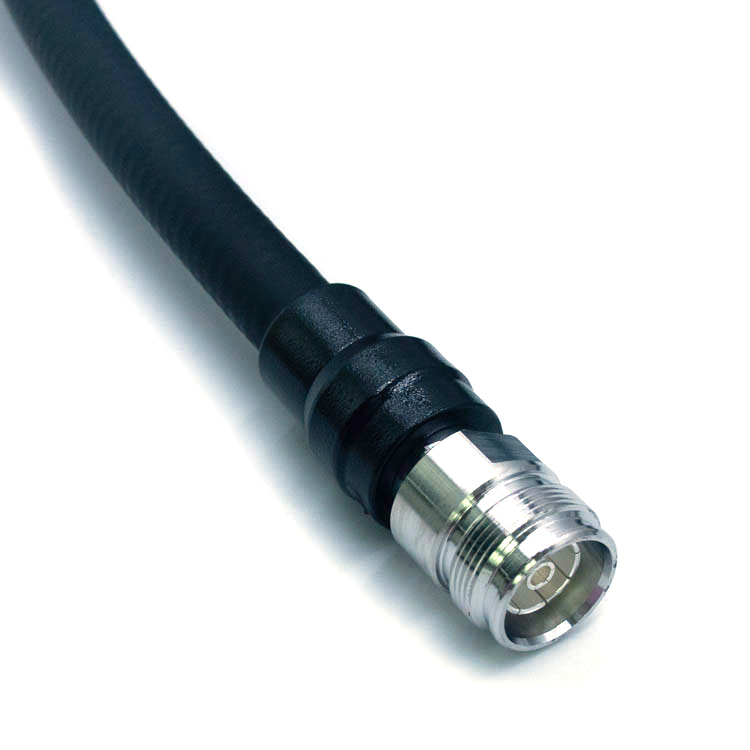

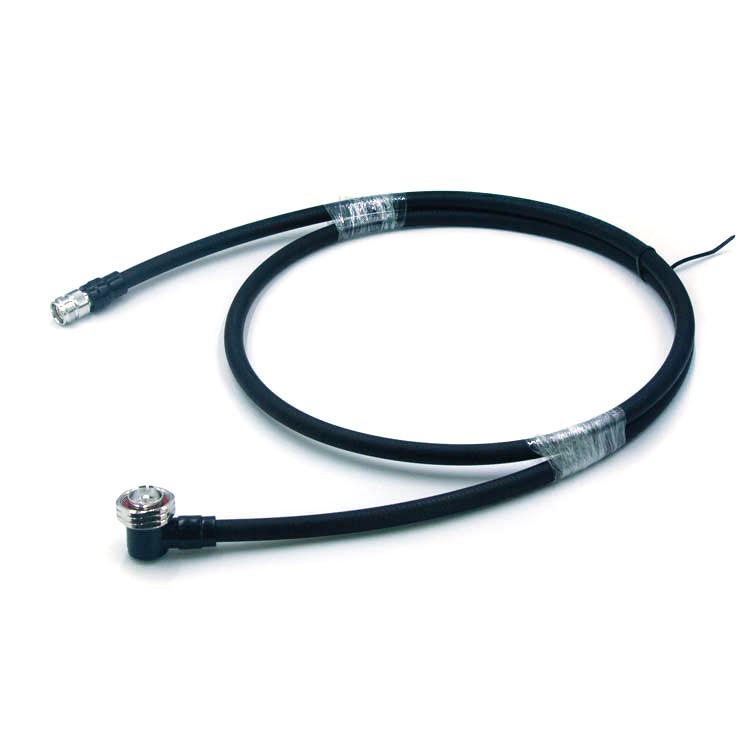

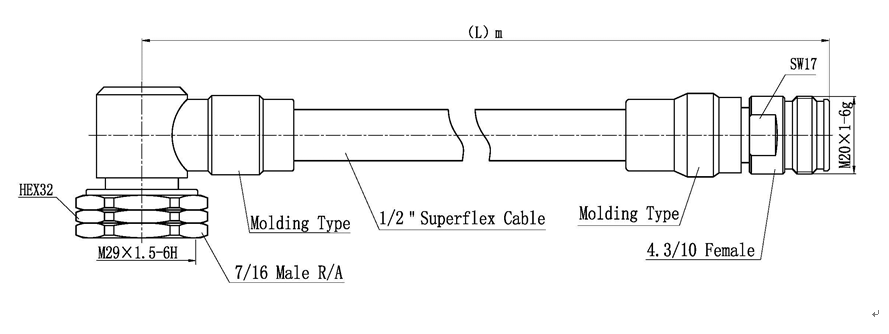

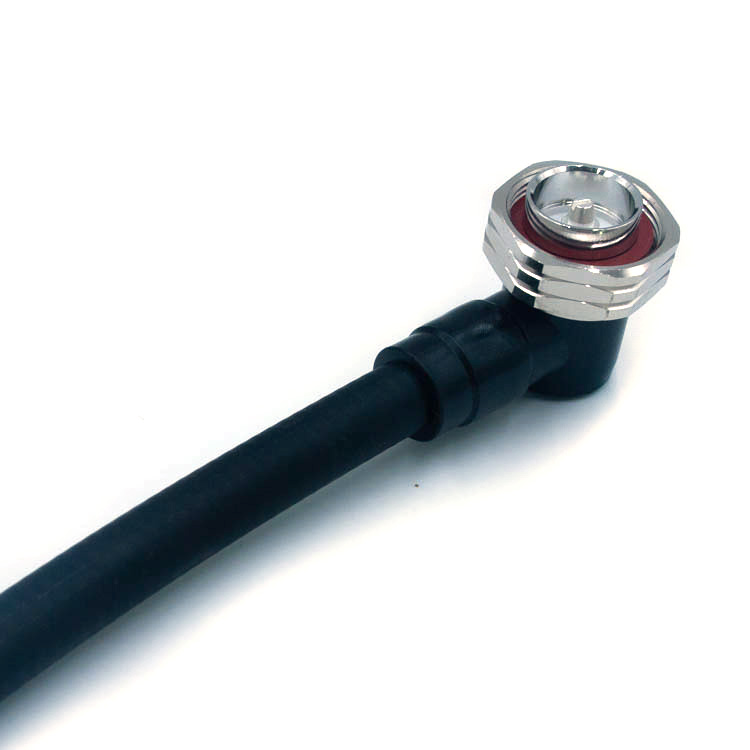

1/2" superflex Jumper, DIN Male Right Angle To 4.3-10 Female,(7/16-H-JW1/2S-2-4.3/10-H-K1/2S-L(m)

SPECIFICATION

1/2" superflex Jumper, DIN Male Right Angle To 4.3-10 Female, L(m)

7/16-H-JW1/2S-2-4.3/10-H-K1/2S-L(m)

Interface

According to：IEC 61169-54/IEC 60169-4

Electrical Performance

Characteristic Impedance：50 ohm

Frequency Range：DC-3GHz

VSWR：≤1.15(DC-3GHz),

PIM3：≤-160dBc

Dielectric Withstanding Voltage：≥2500V RMS,50Hz,at sea level

Dielectric Resistance：≥5000MΩ

Contact Resistance：Center Contact ≤1.0mΩ Outer Contact ≤1.0mΩ

Durability：Mating cycles ≥500

Material and plating

Body：Brass, Tri-Alloy plating

Insulator：PTFE, NATURAL

Contact PIN：Phosphor Bronze,Ag plating

Environmental

Temperature Range：-40℃～+85℃

Waterproof(1m water depth, 24hours)：IP68

RoHS：Full RoHS-Compliance

All products appearance, technical performance and electroplating can be customized according to customer requirements.
