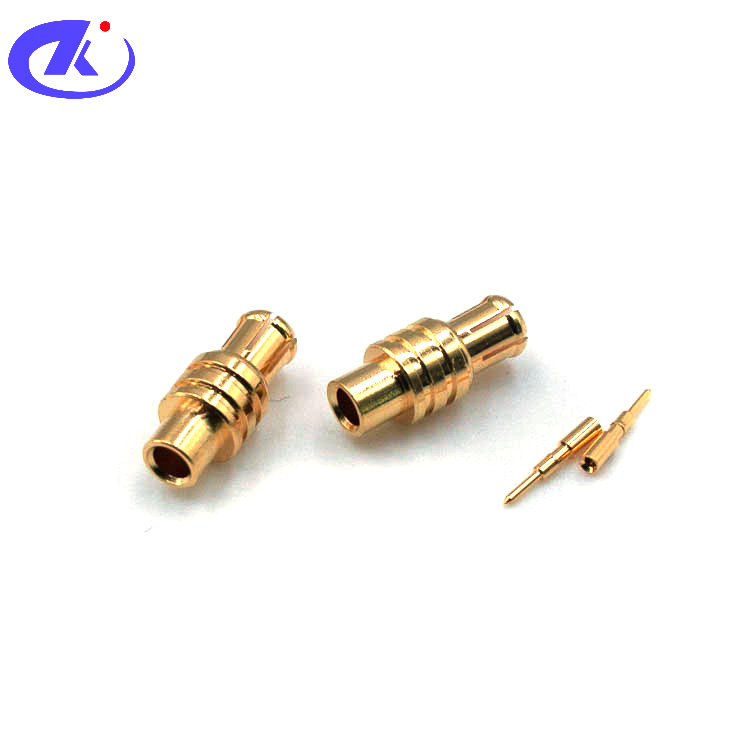

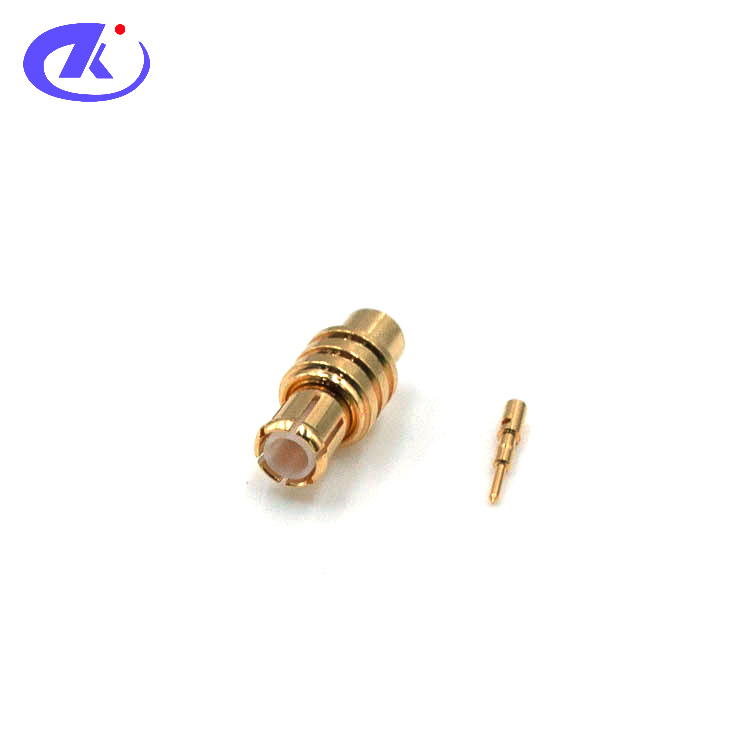

MCX MALE CONNECTOR FOR RG405 CABLE
(MCX-JB2)
| Interface According to：IEC 60169-36 | |
Electrical Performance Characteristic Impedance：50 ohm Frequency Range：DC-3GHz VSWR：≤1.1 Dielectric Withstanding Voltage：≥750V RMS,50Hz,at sea level Dielectric Resistance：≥1000MΩ Contact Resistance：Center Contact ≤5.0mΩ Outer Contact ≤2.5mΩ Durability：Mating cycles ≥500 | Material and plating Body：Brass, Au plating Insulator：PTFE, NATURAL Contact PIN：Brass, Au plating
Environmental Temperature Range：-40℃～+125℃ Waterproof：IP67 RoHS：Full RoHS-Compliance |
All products appearance, technical performance and electroplating can be customized according to customer requirements.
