SPECIFICATION

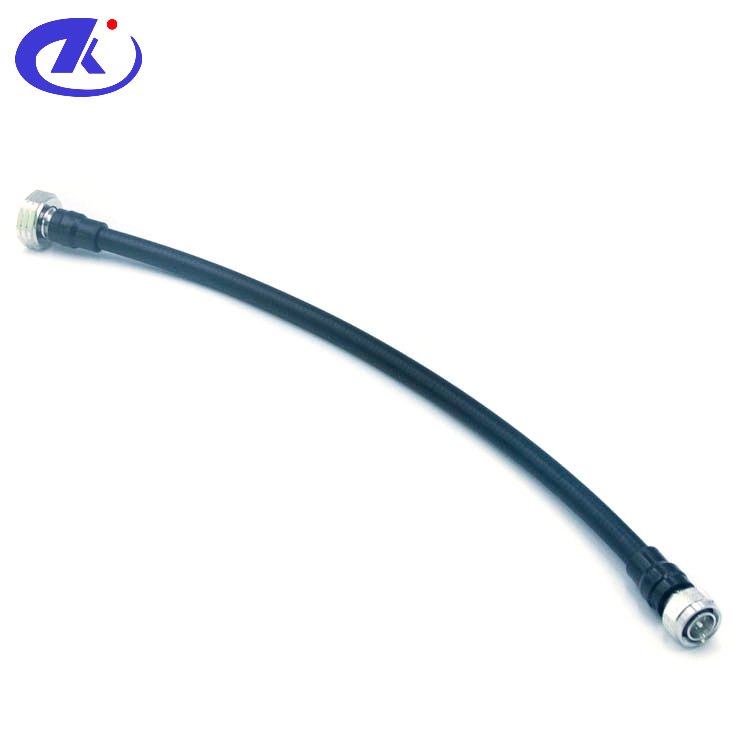

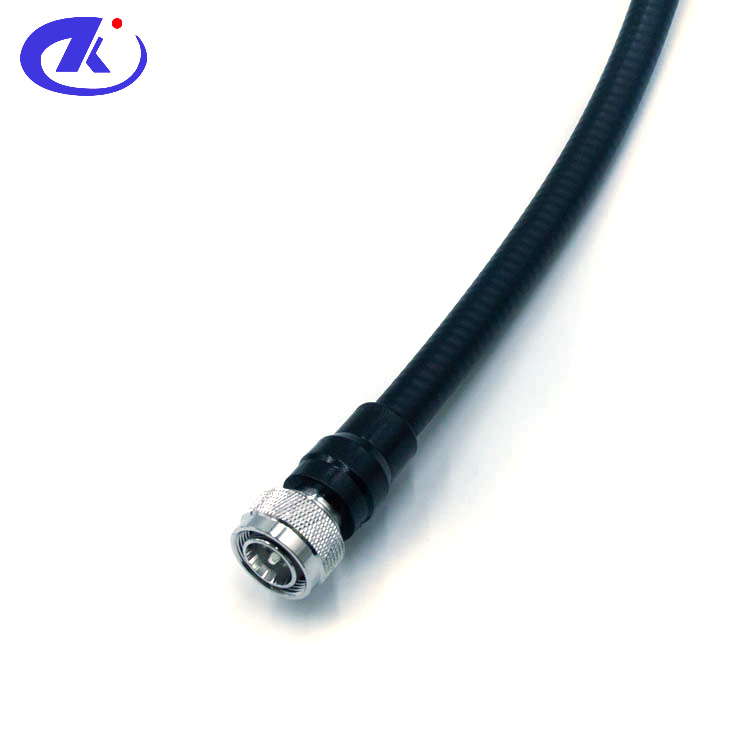

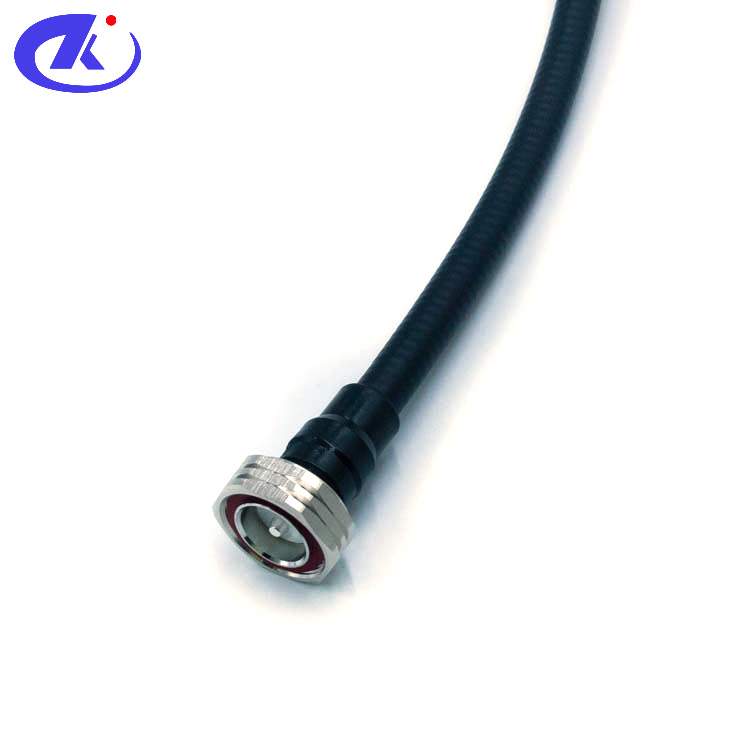

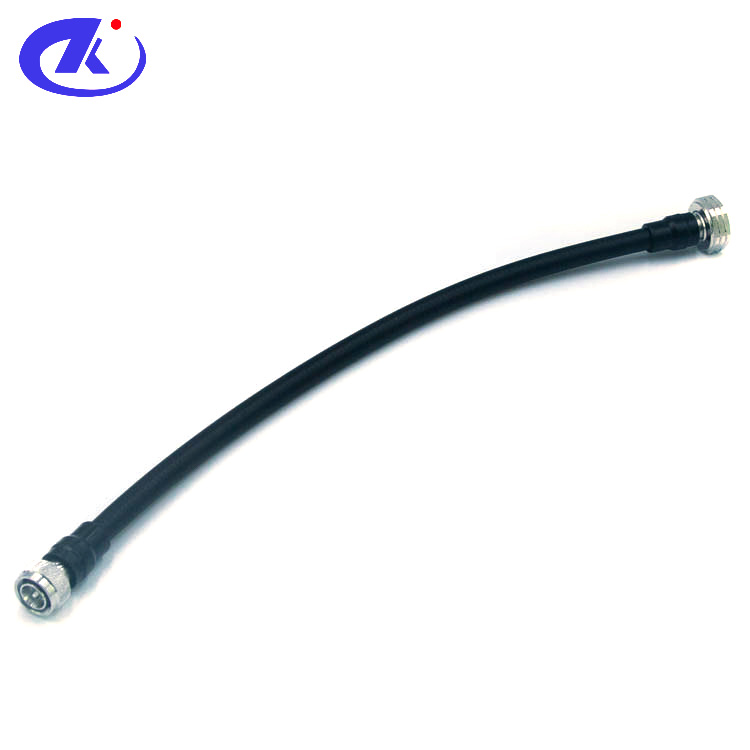

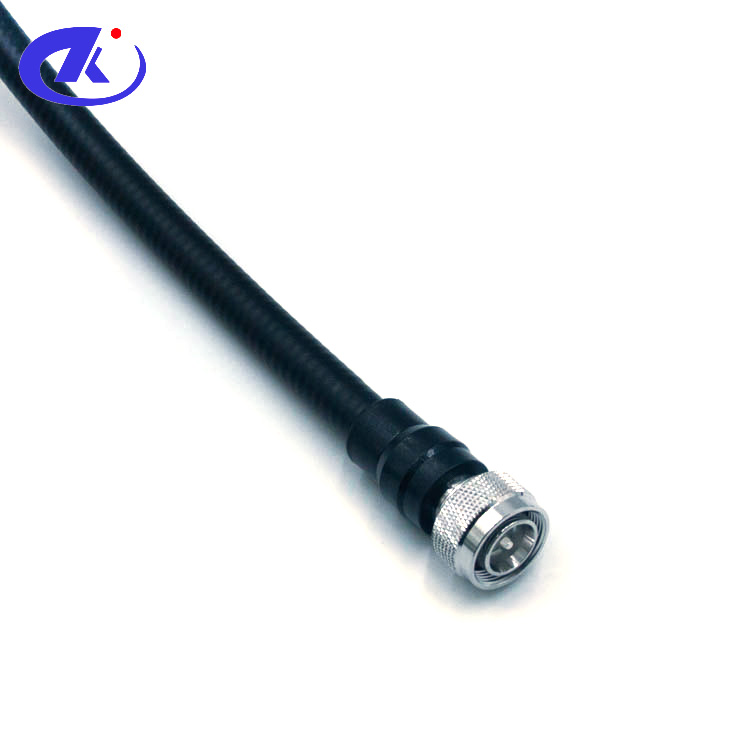

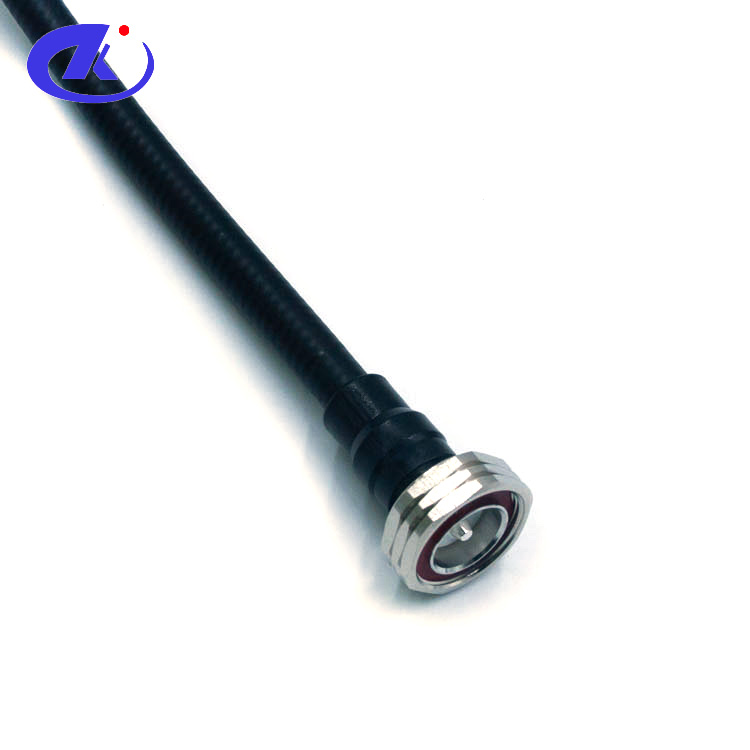

1/2" Superflex Jumper, 7/16 Male to Handsrew 4.3/10 Male,0.5m
(7-16-H-J1-2S-10-H4.3-10-H-J1-2S-0.5m)
Interface According to:IEC 61169-54,IEC 60169-4 | |
Electrical Performance Characteristic Impedance:50 ohm Frequency Range:DC-3GHz VSWR:≤1.1(DC-3GHz), PIM3:≤-160dBc Dielectric Withstanding Voltage:≥2500V RMS,50Hz,at sea level Dielectric Resistance:≥10000MΩ Contact Resistance:Center Contact ≤1.0mΩ Outer Contact ≤1.0mΩ Durability:Mating cycles ≥100 | Material and plating Body:Brass, Tri-Alloy plating Insulator:PTFE, NATURAL Contact PIN:Brass,Ag plating
Environmental Temperature Range:-40℃~+85℃ Waterproof(1m water depth, 24hours):IP68 RoHS:Full RoHS-Compliance |
All products appearance, technical performance and electroplating can be customized according to customer requirements.
