SPECIFICATION Handscrew 4.3/10 Male Straight Connector For 1-1/4” Low Loss Cable (H4.3/10-J1-1/4-1)

SPECIFICATION     Handscrew 4.3/10 Male Straight Connector For 1-1/4” Low Loss Cable  (H4.3/10-J1-1/4-1)

SPECIFICATION

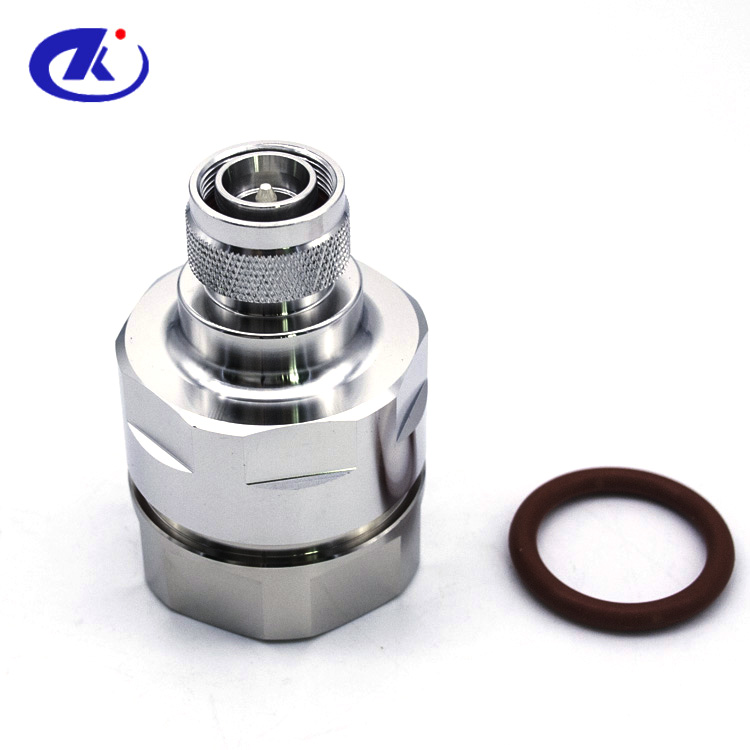

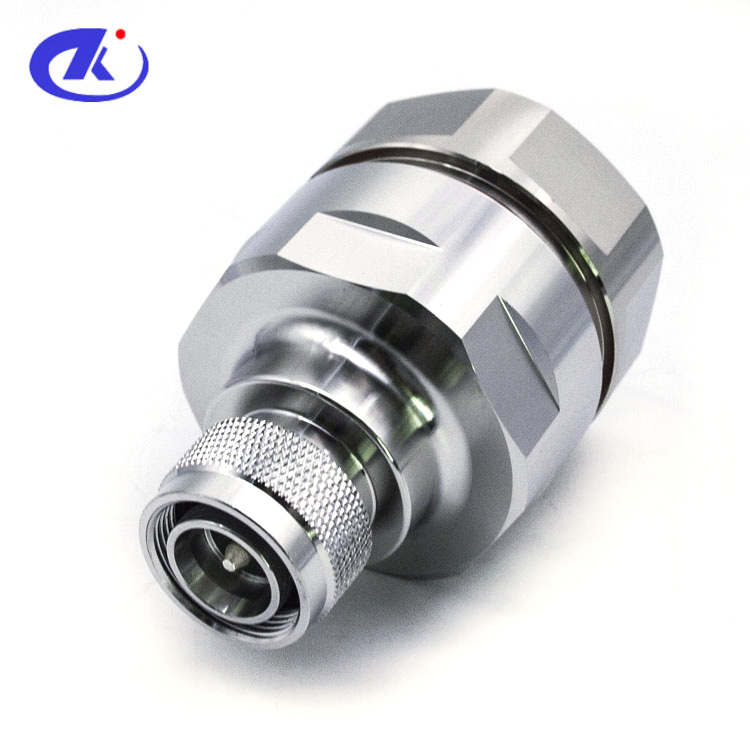

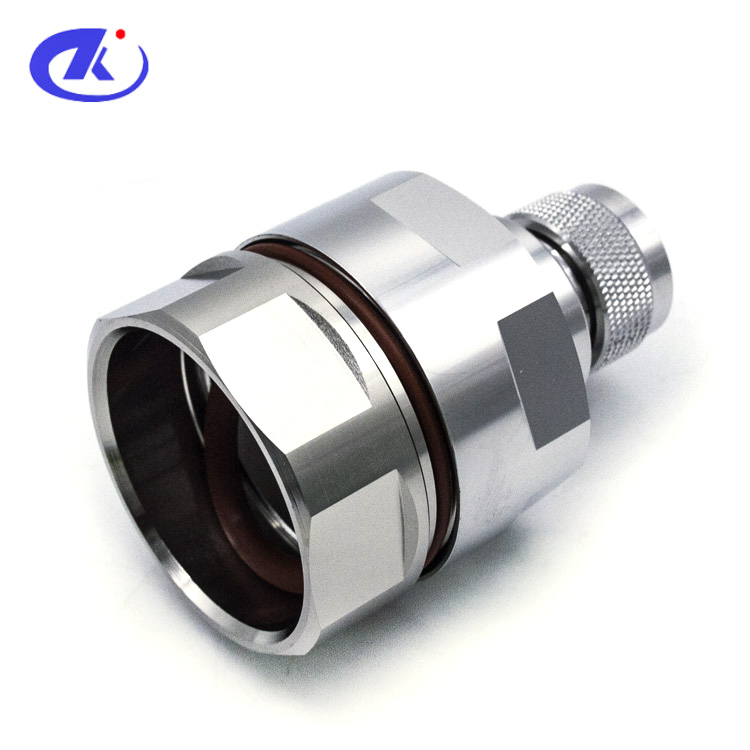

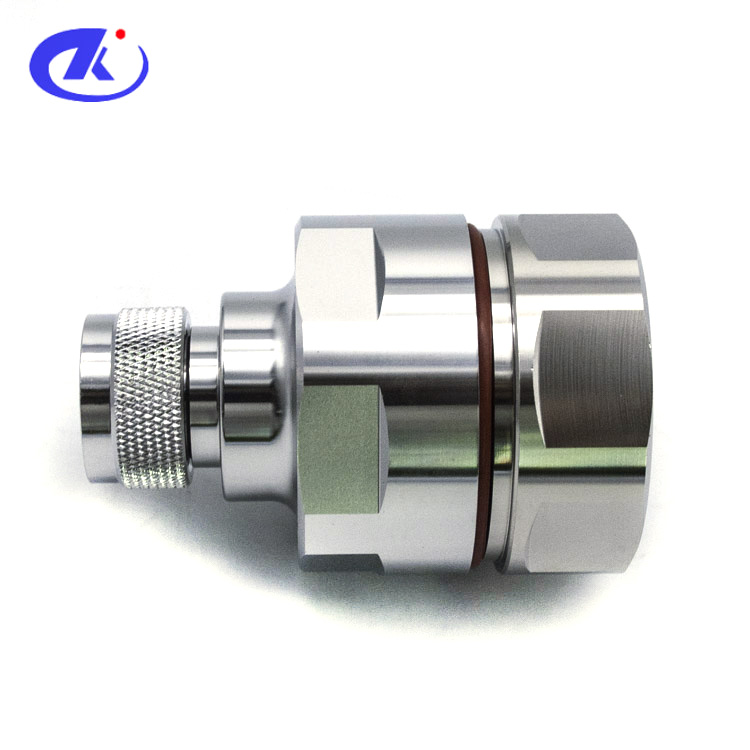

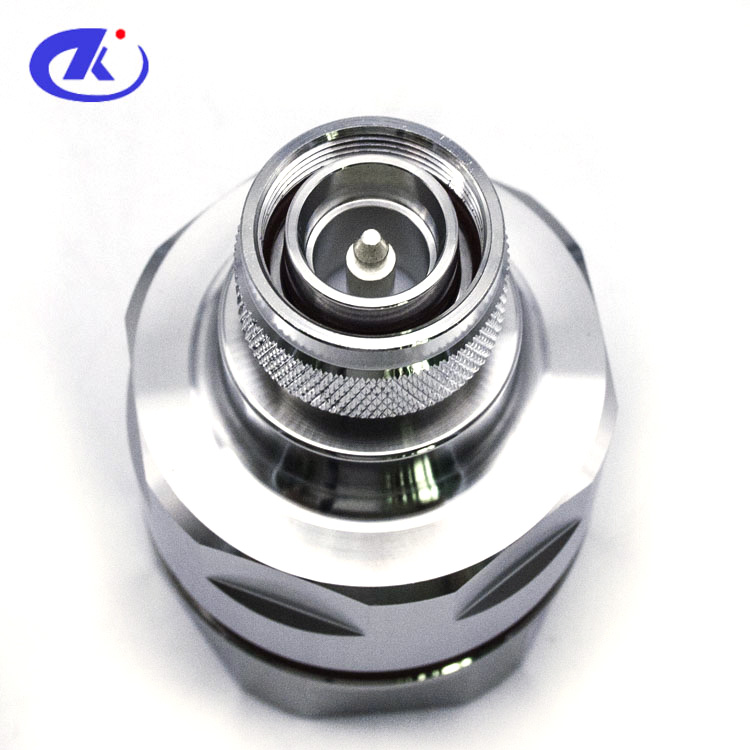

Handscrew 4.3/10 Male Straight Connector For 1-1/4” Low Loss Cable

(H4.3/10-J1-1/4-1)






Interface

According to:IEC 61169-54

Electrical Performance

Characteristic Impedance:50 ohm

Frequency Range:DC-4GHz

VSWR:≤1.15

PIM3:≤-160dBc

Dielectric Withstanding Voltage:≥2500V RMS,50Hz,at sea level

Dielectric Resistance:≥5000MΩ

Contact Resistance:Center Contact ≤1.0mΩ Outer Contact ≤1.0mΩ

Durability:Mating cycles ≥500

Material and plating

Body:Brass, Tri-Alloy plating

Insulator:PTFE, NATURAL

Contact PIN:Phosphor bronze,Ag plating





Environmental

Temperature Range:-40℃~+85℃

Watertightness(1m water depth, 24hours):IP68

RoHS:Full RoHS-Compliance

All products appearance, technical performance and electroplating can be customized according to customer requirements.
