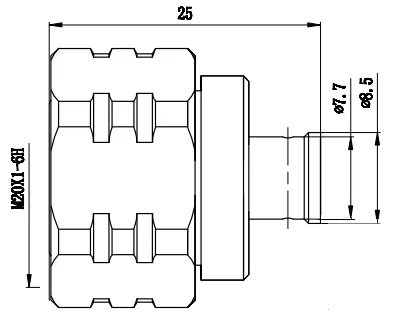

4.3/10 Male Straight Connector For 175/380 Cable Soldering(4.3/10-J380)

4.3/10 Male Straight Connector For 175/380 Cable Soldering(4.3/10-J380)

SPECIFICATION



4.3/10 Male Straight Connector For 175 380 Cable Solering

(4.3/10-J380)



Interface

According to:IEC 61169-54

Electrical Performance

Characteristic Impedance:50 ohm

Frequency Range:DC-6GHz

VSWR:≤1.1(0-3G) ≤1.2(0-6G)

PIM3:≤-160dBc

Dielectric Withstanding Voltage:≥2500V RMS,50Hz,at sea level

Dielectric Resistance:≥5000MΩ

Contact Resistance:Center Contact ≤1.0mΩ Outer Contact ≤1.0mΩ

Durability:Mating cycles ≥500

Material and plating

Body:Brass, Tri-alloyNi plating

Insulator:PTFE, NATURAL

Contact PIN:Phosphor bronze,Au plating





Environmental

Temperature Range: -40℃~+85℃

Watertightness:IP67

RoHS:Full RoHS-Compliance

All products appearance, technical performance and electroplating can be customized according to customer requirements.
