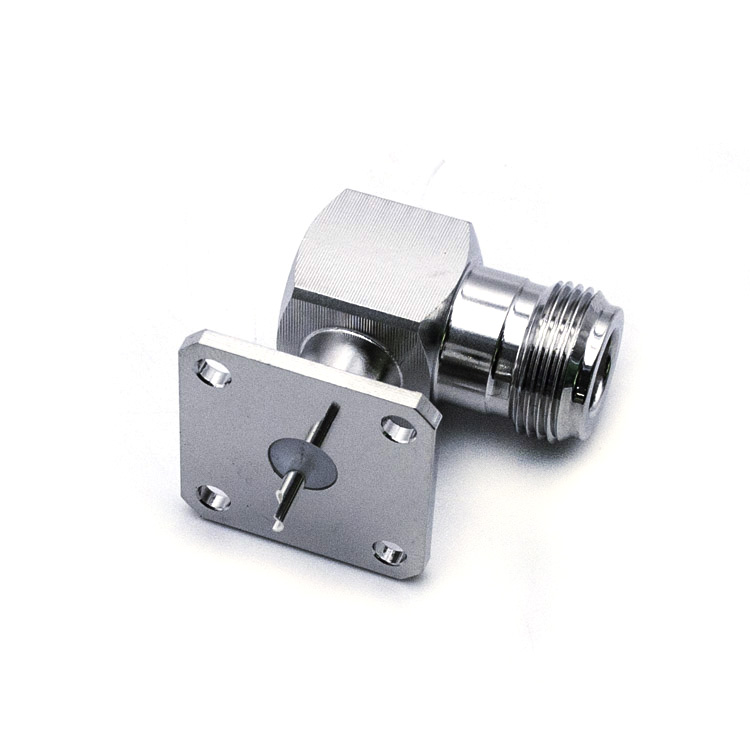

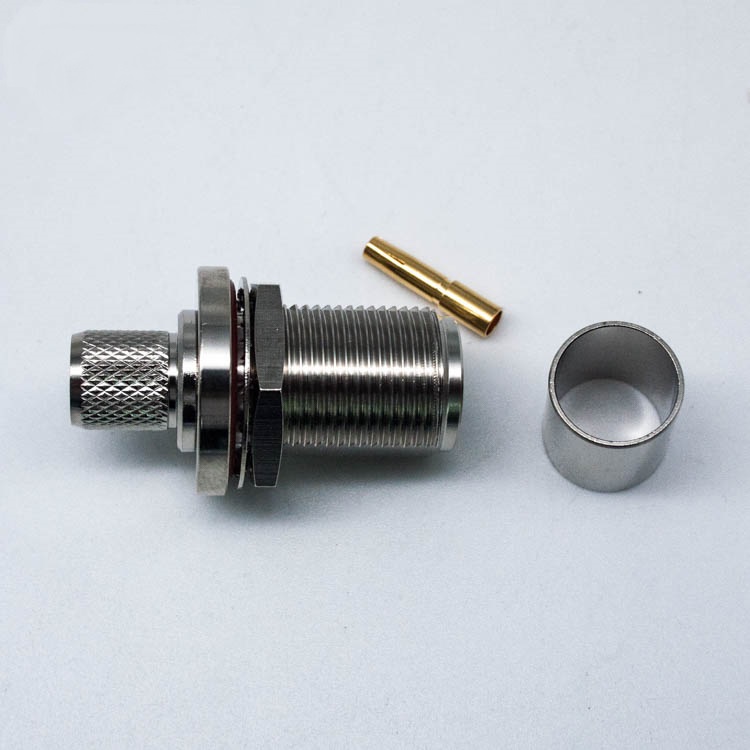

N connectors are available with 50 Ω and 75 Ω impedance. The frequency range extends to 11 GHz, depending on the connector and cable type. The screw-type coupling mechanism provides a sturdy and reliable connection. Connector styles are available for flexible, conformable, semi-rigid and corrugated cable types. Both crimp and clamp cable termination processes are used for this series. Special design techniques for this series of connectors have resulted in excellent levels of performance with regard go return loss (VSWR) and intermodulation distortion.
| Standards：IEC60169-16 | |
Electrical Characteristics Contact resistance inner conductor：≤1.0 mΩ Contact resistance outer conductor：≤1.0 mΩ Insulation resistance ：≥ 5.0 GΩ Voltage proof ：2.5KV/50Hz Impedance ：50Ω Return loss: Straight style ：≥30.5 dB/1GHz; 23.1dB/6GHz Return loss: Angle style ：≥30.5 dB/1GHz; 20.8dB/6GHz Working voltage ：KV/50Hz Frequency range up to：11GHz | Mechanical Characteristics Recommended coupling torque：4-6Nm Durability (mating cycles) ：≥500 Material: spring contacts ：Brass Material: outer conductor：Brass Material: other metal parts：Brass Material: insulators：PTFE Material: gaskets：Silicone Plating: Inner conductor：Ag/Au Plating: Outer conductor：Ni/Tri-alloy Plating: Other metal parts：Ni/Tri-alloy |
