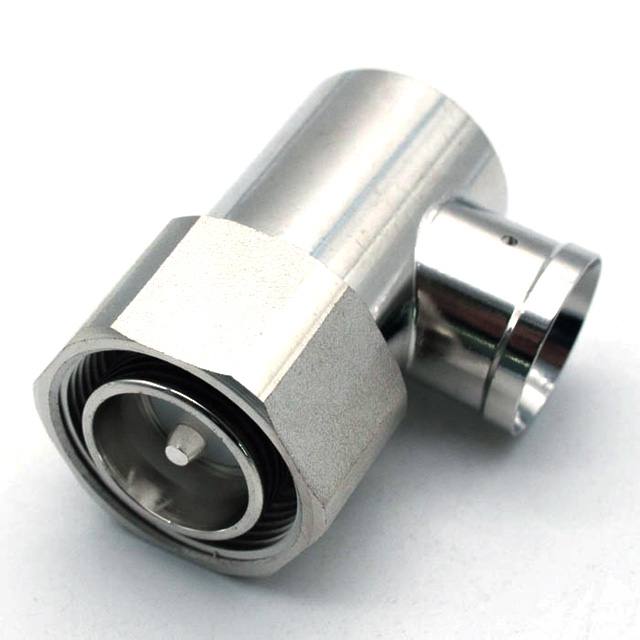

4.3-10 connector system is designed to meet the rising performance needs of mobile network equipment e.g. to connect the RRU to the antenna. The small size and low weight of these connectors do justice to the miniaturization of mobile radio network components. Despite their size, the connectors guarantee excellent return loss and passive inter-modulation performance (PIM) levels.
Three different coupling mechanisms of the plug connectors screw, quick-lock/push-pull and hand-screw types are mateable with all jack connectors. All of the 4.3-10 connectors meet the requirements of IP68 and, because of the excellent properties of materials used, are suitable for temperatures ranging from -40°C up to +85°C. Customized connector designs for use at higher temperatures are also possible on demand .
| Standards：IEC61169-54 | |
Electrical Characteristics Contact resistance inner conductor：≤1.0 mΩ Contact resistance outer conductor：≤1.0 mΩ Insulation resistance：≥ 5.0 GΩ Voltage proof：2.5KV/50Hz Impedance：50Ω Passive inter-modulation：-166dBc@2 x 43 dBm Return loss：≥26.4 dB@3 GHz; 20.8dB@/6 GHz Working voltage：1.8KV/50Hz Frequency range up to：12GHz | Mechanical Characteristics Recommended coupling torque：5-10Nm Durability (mating cycles)：≥500 Material: spring contacts：Brass Material: outer conductor：Brass Material: other metal parts：Brass Material: insulators：PTFE Material: gaskets：Silicone Plating: Inner conductor：Silver Plating: Outer conductor：Ni/Tri-alloy Plating: Other metal parts：Ni/Tri-alloy
|
