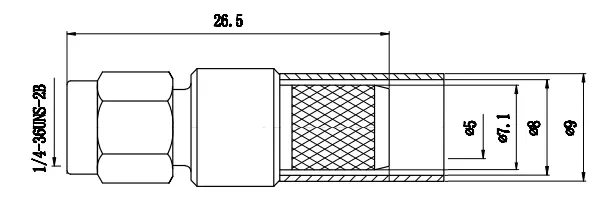

SMA MALE STRAIGHT CONNECTOR CRIMP FOR LMR300 CABLE(SMA-C-J300-2)

SPECIFICATION

SMA MALE STRAIGHT CONNECTOR CRIMP FOR LMR300 CABLE

(SMA-C-J300-2)

Interface

According to：IEC 60169-15

Electrical Performance

Characteristic Impedance：50 ohm

Frequency Range：DC-2.5GHz

VSWR：≤1.3

Dielectric Withstanding Voltage：≥1000V RMS,50Hz,at sea level

Dielectric Resistance：≥5000MΩ

Contact Resistance：Center Contact ≤3.0mΩ Outer Contact ≤2.0mΩ

Durability：Mating cycles ≥500

Material and plating

Body：Brass, Au plating

Insulator：PTFE, NATURAL

Contact PIN：Brass, Au plating

Environmental

Temperature Range：-40℃～+125℃

Waterproof ：IP67

RoHS：Full RoHS-Compliance

All products appearance, technical performance and electroplating can be customized according to customer requirements.
