SPECIFICATION

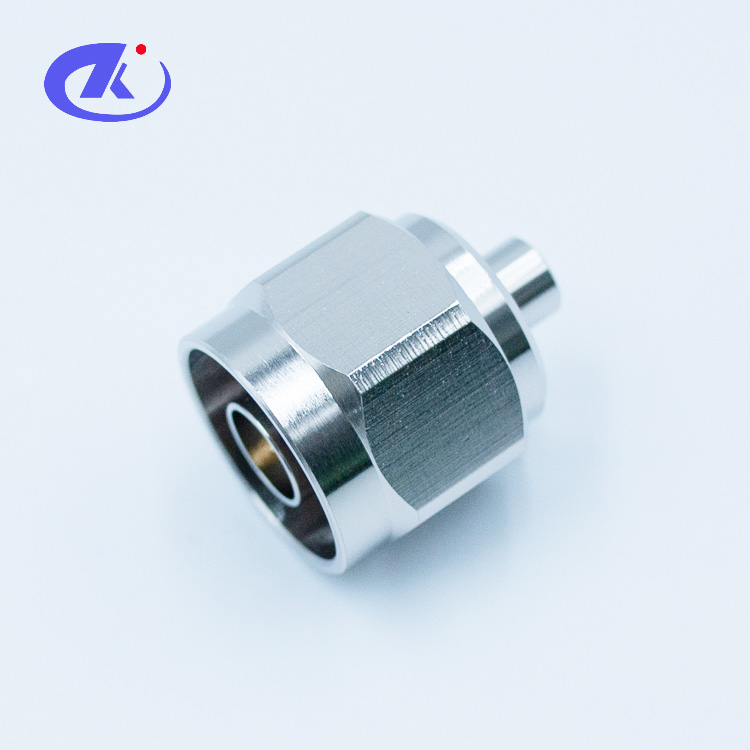

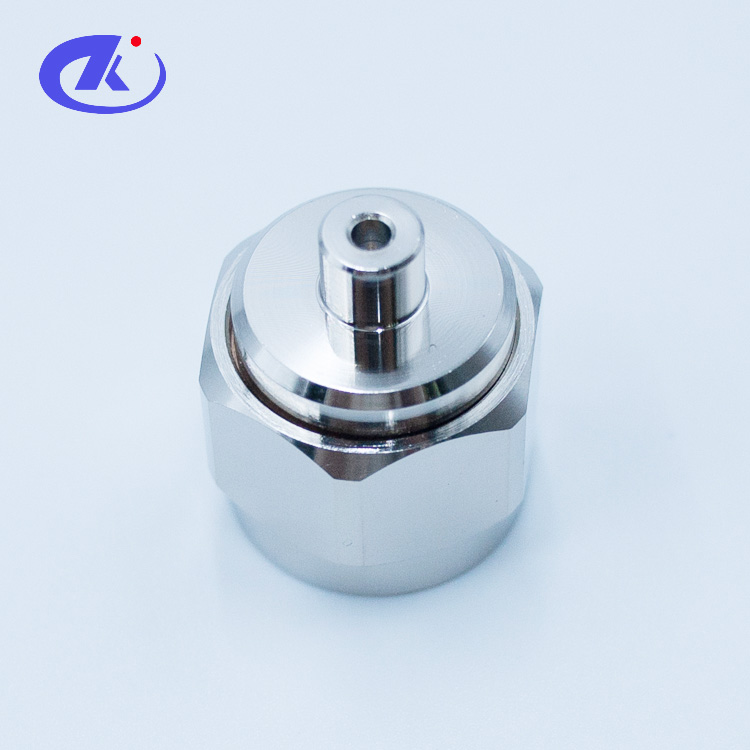

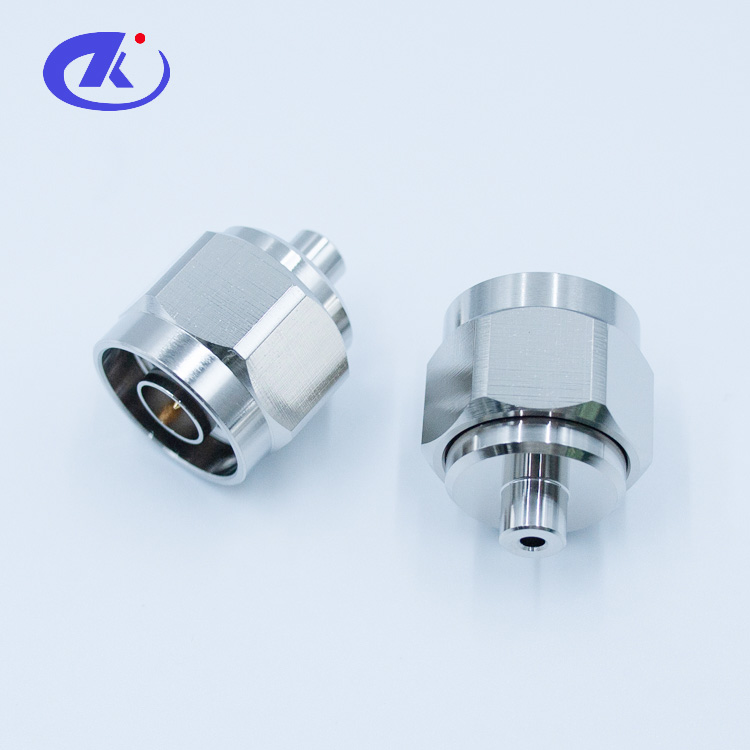

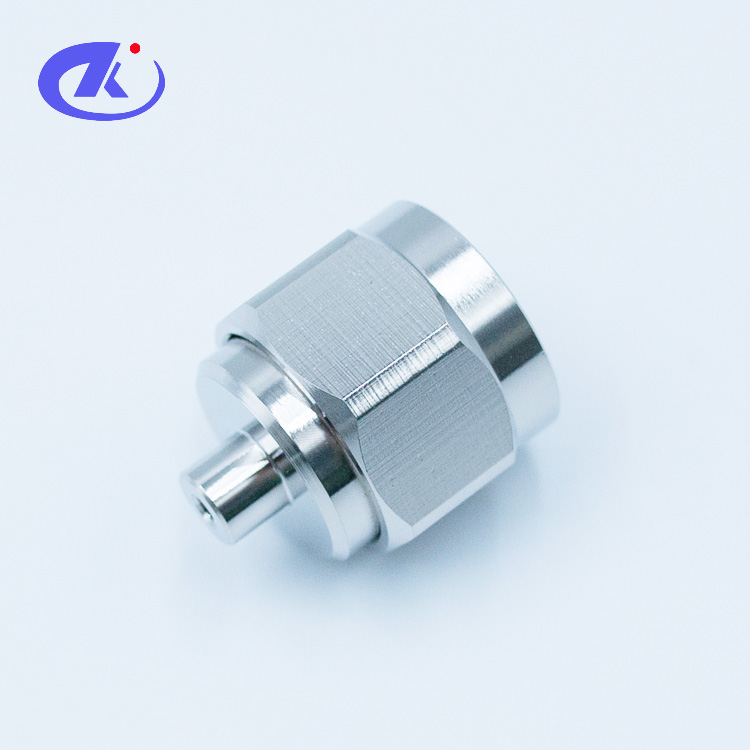

N Male Plug test Connector for 086 Coaxial Cable（N-J405-1)
| Interface According to：IEC 60169-16 | |
Electrical Performance Characteristic Impedance：50 ohm Dielectric Withstanding Voltage：≥2500V RMS,50Hz,at sea level Dielectric Resistance：≥5000MΩ Contact Resistance：Center Contact ≤1.0mΩ Outer Contact ≤1.0mΩ Durability：Mating cycles ≥500 | Material and plating Body：Brass, Ni plating Insulator：PTFE, NATURAL Contact PIN：Brass/Beryllium Bronze,Au plating Environmental Temperature Range：-40℃～+85℃ RoHS：Full RoHS-Compliance |
