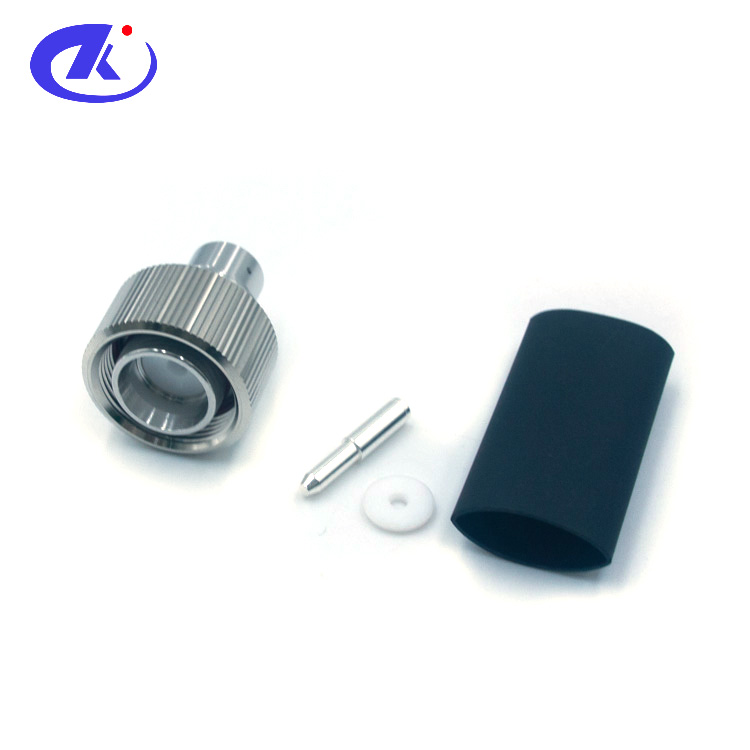

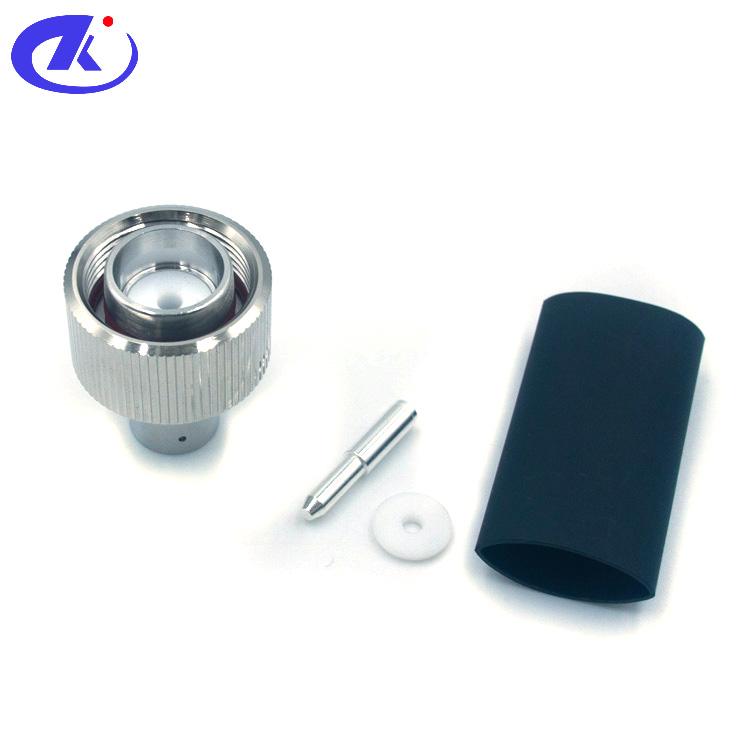

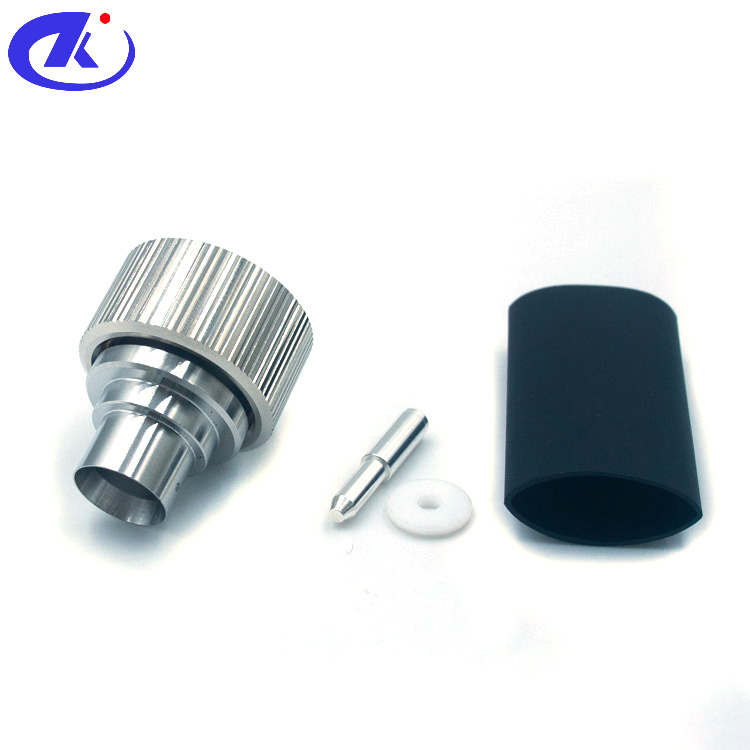

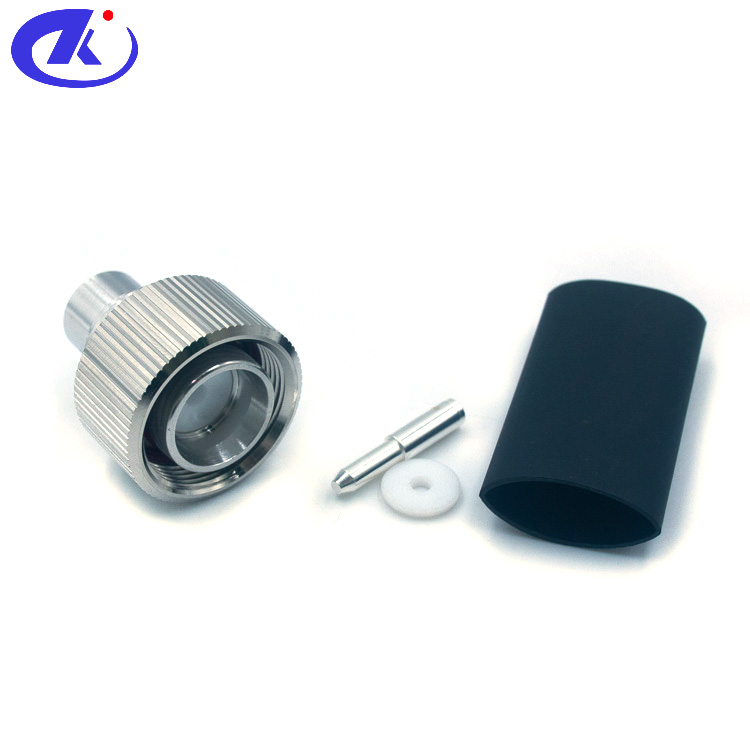

Handscrew 4.3/10 Male right angle for 3/8"Superflex cable with straight knurled nut (H4.3/10-H-J3/8S-2)

Handscrew 4.3/10 Male right angle for 3/8"Superflex cable with straight knurled nut   (H4.3/10-H-J3/8S-2)

SPECIFICATION



 Handscrew 4.3/10 Male right angle for 3/8"Superflex cable with straight knurled nut

(H4.3/10-H-J3/8S-2)

Interface

According to:IEC61169-54

Electrical Performance

Characteristic Impedance:50 ohm

Frequency Range:DC-6GHz

VSWR:≤1.15

PIM3:≤-160dBc

Dielectric Withstanding Voltage:≥2500V RMS,50Hz,at sea level

Dielectric Resistance:≥5000MΩ

Contact Resistance:Center Contact ≤1.0mΩ  Outer Contact ≤1.0mΩ

Durability:Mating cycles ≥100

Material and plating

Body:Brass, Tri-Alloy plating

Insulator:PTFE, NATURAL

Contact PIN:Phosphor Bronze,Ag plating





Environmental

Temperature Range:-40℃~+85℃

Waterproof(1m water depth, 24hours):IP68

RoHS:Full RoHS-Compliance

All products appearance, technical performance and electroplating can be customized according to customer requirements.
